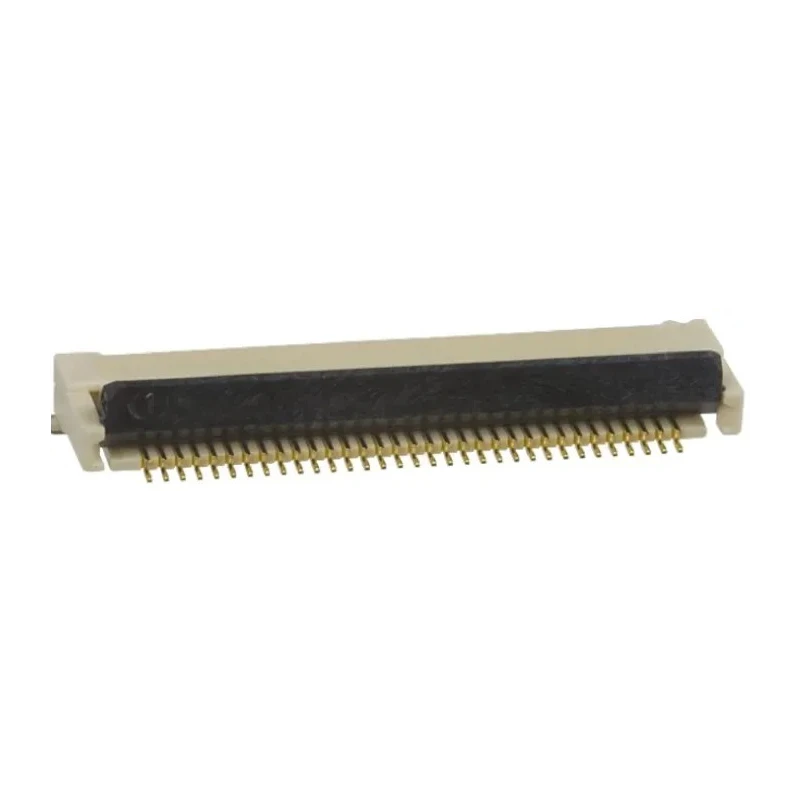

Omron FPC Connector 0.5 mm Pitch 33 Way Right Angle Female Surface Mount Rotary Backlock Solder XF2M
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50, 50V ac |
| Brand | Omron |
| Orientation | Right Angle |
| Current | 500mA |
| Model | XF2M |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Nickel |
| Series | XF2M |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 33 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Position | Dual |
Key Features
- Features a durable rotary backlock mechanism for secure and reliable connection.
- Contacts are made of beryllium copper with nickel and gold plating for excellent conductivity and corrosion resistance.
- Compact 0.5 mm pitch and 2 mm on-board profile suitable for tight electronic assemblies.
- Housing made of halogen-free Liquid Crystal Polymer ensuring flame retardancy and durability.
- Supports current up to 500 mA and voltage rating of 50 V AC.
- Single row, dual contact position design improves contact reliability.
- Right angle orientation facilitates space-saving PCB layouts.
- Suitable for use in small mobile devices such as cameras, mobile phones, and digital players.
Product Description
Omron XF2M is a 0.5 mm pitch FPC connector featuring 33 female contacts in a right angle, surface mount configuration with solder termination. This connector incorporates a rotary backlock mechanism allowing easy operation during assembly and secure mounting even in limited space environments. Its low profile 2 mm on-board design facilitates compact PCB layouts often required in modern electronics.
The contacts use beryllium copper with nickel plating and gold contact plating to provide reliable electrical connections and resistance to corrosion. The housing is constructed from halogen-free Liquid Crystal Polymer (UL94V-0), suitable for high-quality electronics requiring flame retardant materials.
This FPC Connector supports a current capacity of 500 mA and an AC voltage rating of 50 V, making it apt for signals and low-power applications. Its operating temperature range from -30°C to 85°C ensures dependability across diverse environmental conditions commonly found in industrial and consumer electronics.
The right angle orientation and single row dual contact arrangement optimize space while maintaining excellent contact stability. It finds ideal applications in compact mobile electronics like digital cameras, mobile phones, audio and video players, and other handheld devices.
Omron’s XF2M series connectors are designed to enhance assembly efficiency and product reliability with their low profile and rotary backlock secure mounting system. These connectors are halogen-free, aligning with modern environmental safety standards.
Durable rotary backlock mechanism ensures secure connection. High-quality beryllium copper contacts with nickel and gold plating. Low 2 mm on-board profile for space-saving PCB design. Halogen-free Liquid Crystal Polymer housing provides flame resistance.
Supports 500 mA current and 50 V AC voltage ratings. Right angle female connector designed for surface mounting. Operating temperature range from -30°C to 85°C. Ideal for portable electronic devices and compact assemblies.
Explore the extensive range of Omron connectors at EnvMart for reliable and certified electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this connector is 0.5 mm.
This model supports a maximum current rating of 500 mA.
The voltage rating for this connector is 50 V AC.
The contacts are made of beryllium copper with nickel and gold plating for improved conductivity and corrosion resistance.
The operating temperature range is from -30°C to 85°C.
This connector features 33 female contacts.
The housing is made of halogen-free Liquid Crystal Polymer, which provides flame retardancy.
This model uses solder termination.
The connector is designed in a right angle orientation, facilitating space-saving PCB layouts.
It is suitable for use in compact mobile devices such as cameras, mobile phones, and digital players.
The on-board profile height of this connector is 2 mm, making it suitable for tight electronic assemblies.
The rotary backlock mechanism allows for easy operation during assembly and ensures a secure connection even in limited space environments.
