Omron FPC Connector 0.5 mm Pitch 34 Way Right Angle Female, Top & Bottom Contact XF2M

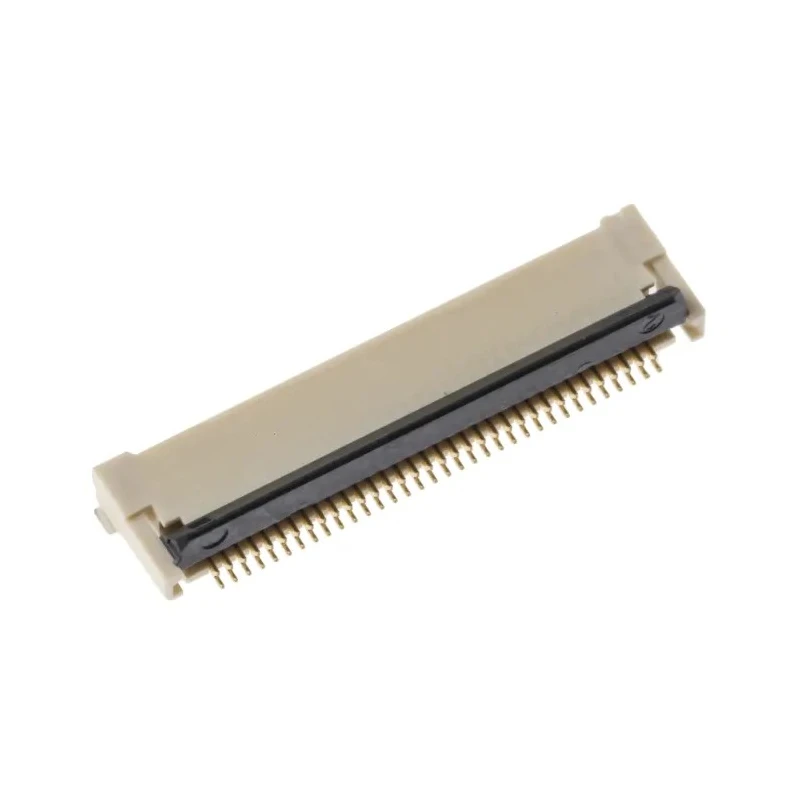

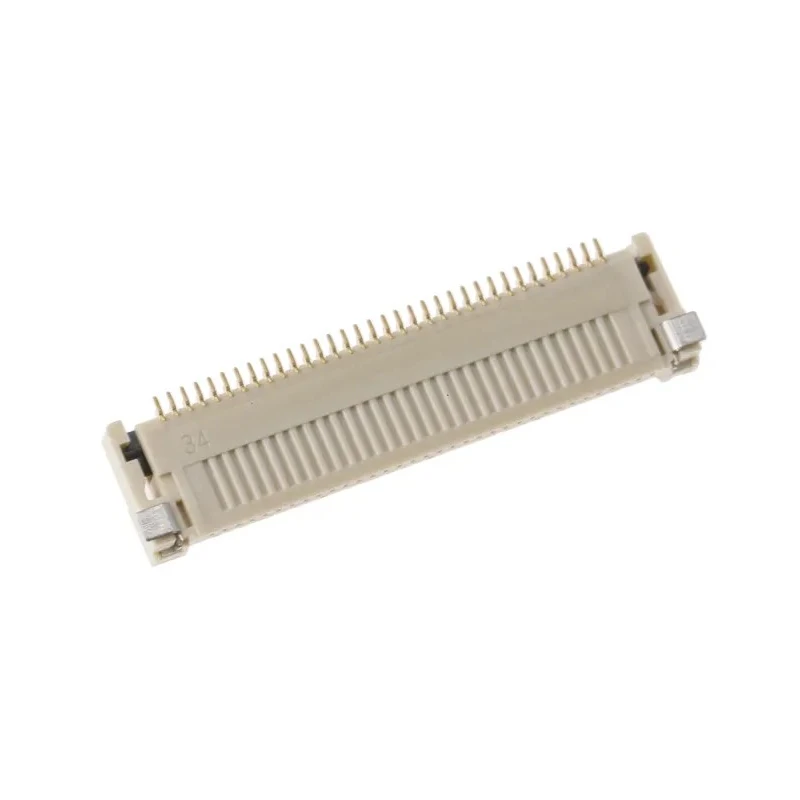

Omron XF2M-3415-1A is a high precision FPC connector with a 0.5 mm pitch, designed to provide secure and reliable connections in compact electronic devices. Featuring 34 female contacts arranged in a single row with right angle orientation, the connector utilizes both top and bottom termination contacts to improve reliability in signal conduction across flexible printed circuits.

This connector series incorporates an innovative rotary backlock mechanism ensuring quick and firm locking of the FPC, reducing assembly time while enhancing contact security. The low profile design with a 2mm on-board height facilitates its use in densely packed circuit assemblies commonly found in mobile phones, digital cameras, and other portable consumer electronics.

Constructed from Liquid Crystal Polymer (LCP) housings rated UL94V-0 for excellent flame retardance, the XF2M connector also meets halogen-free environmental standards, enhancing its safety and environmental compliance.

The gold plating on beryllium copper-nickel contacts delivers optimum conductivity and long-term corrosion resistance, crucial for maintaining signal integrity under varying operating conditions, ranging from -30°C to 85°C.

Designed for surface mount technology (SMT) with side entry terminals, it supports 0.3 mm thick flexible printed circuits and provides a current capability up to 500mA with a voltage rating of 50V AC. This makes it ideal for use in small mobile devices, including digital video players, audio equipment, and other electronic gadgets requiring compact, robust connectors.

Has a compact 0.5mm pitch for tight spacing applications. Supports a current rating of 500mA for reliable signal transmission. Equipped with a rotary backlock mechanism for secure connection. Housing made of Liquid Crystal Polymer with UL94V-0 flammability rating.

Operates in temperature range from -30°C up to 85°C. Gold-plated contacts ensure excellent corrosion resistance and conductivity. Designed as a low profile 2mm on-board height connector suitable for mobile devices. Features side entry surface mount terminals for easy PCB integration.

Suitable for small electronics including digital cameras, mobile phones, and digital audio/video equipment. Complies with halogen-free standards for environmentally safer use.

Omron XF2M-3415-1A FPC connector provides a robust solution for electronics manufacturing across industrial, consumer, and communications sectors. Explore more FPC Connectors and precision components in the Electronics & Electricals category on EnvMart.
