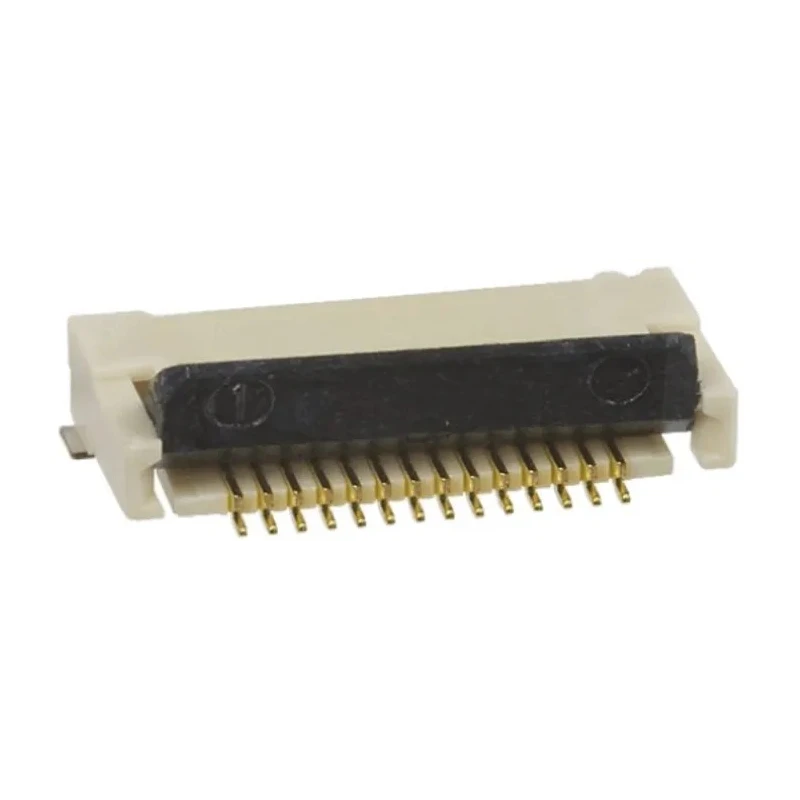

Omron FPC Connector 0.5 mm Pitch 12 Way Right Angle Female Surface Mount Solder Termination XF2M
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50, 50V ac |
| Brand | Omron |
| Orientation | Right Angle |
| Current | 500mA |
| Model | XF2M |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Nickel |
| Series | XF2M |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Position | Dual |
Key Features
- Low 2mm on-board profile suitable for compact electronic devices.
- Rotary backlock mechanism ensuring secure and reliable connection.
- Constructed with beryllium copper nickel contacts and gold plating.
- Housing made of liquid crystal polymer with UL94V-0 flame resistance.
- Operates reliably within temperature range of -30°C to 85°C.
- Supports current up to 500mA and voltage rating of 50V AC.
- Easy FPC mounting with dual contact position and single row design.
- Right angle orientation minimizes PCB space usage.
Product Description
Omron XF2M-1215-1A is a high-quality FPC connector featuring a 0.5 mm pitch and 12 way female contacts arranged in a right angle configuration. This surface mount connector uses solder termination to provide a secure and reliable connection in compact electronic assemblies.
The connector boasts a low 2 mm on-board profile, making it ideal for tight spaces in small mobile and handheld devices such as digital cameras, mobile phones, DVD players, and digital audio/video players. Its innovative rotary backlock mechanism facilitates easy FPC mounting, enhancing assembly efficiency and contact reliability.
Construction includes beryllium copper nickel contacts plated with gold for enhanced electrical performance and durability. The housing and slider are produced from flame-retardant liquid crystal polymer (LCP) material rated UL94V-0, ensuring superior resistance to heat and environmental factors.
This connector supports current ratings up to 500mA and voltage ratings of 50V AC. It is designed to operate reliably in temperatures ranging from -30°C to 85°C. The dual contact position and single row design optimize signal integrity and connection stability. The right angle orientation further aids PCB layout optimization.
Low 2mm on-board profile suitable for compact electronic devices. Rotary backlock mechanism to ensure a secure connection. Beryllium copper nickel contacts with gold plating for durability and conductivity. LCP UL94V-0 housing and slider for flame resistance and durability.
Operating temperature from -30°C to 85°C supports diverse environments. Supports 500mA current and 50V AC voltage rating. Dual contact position and single row configuration enhance reliability. Right angle orientation conserves PCB space.
Halogen free construction for eco-friendly applications. Ideal for small mobile and handheld devices.
The Omron XF2M series FPC Connectors provide reliable, durable connections tailored for electronic, industrial, and telecommunications applications. Their low profile and secure locking mechanisms make them preferred choices for high-density PCB assemblies. For more precision connectors, browse the Electronics & Electricals Connectors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this connector is 0.5 mm.
It supports a current rating of up to 500mA.
The connector has a voltage rating of 50V AC.
The contacts are made of beryllium copper nickel and are plated with gold, while the housing is constructed from liquid crystal polymer.
It operates reliably within a temperature range of -30°C to 85°C.
This FPC connector features 12 female contacts.
It utilizes solder termination for secure connections.
The connector is designed with a right angle orientation.
The housing is made from liquid crystal polymer rated UL94V-0 for flame resistance.
Yes, its low 2 mm on-board profile makes it suitable for compact electronic devices.
The connector features a dual contact position and a single row design.
The country of origin for this connector is China.
