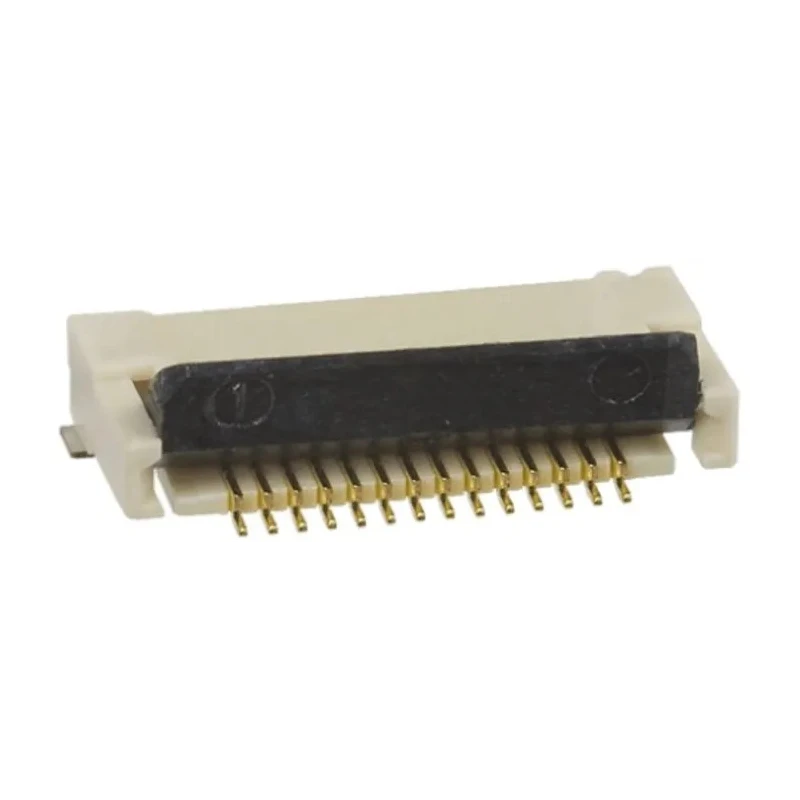

Omron FPC Connector 0.5 mm Pitch 14 Way Right Angle Female Solder Surface Mount XF2M
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50, 50V ac |
| Brand | Omron |
| Orientation | Right Angle |
| Current | 500mA |
| Model | XF2M |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Nickel |
| Series | XF2M |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Position | Dual |
Key Features
- Features a 0.5 mm pitch and 14 contacts for precise signal transmission.
- Designed with a right angle female connector orientation for tight space applications.
- Constructed using beryllium copper nickel contacts with gold plating for excellent conductivity and corrosion resistance.
- Equipped with a rotary backlock mechanism ensuring secure connection and easy assembly.
- Housing made from halogen-free liquid crystal polymer providing durability and UL94V-0 flame resistance.
- Operates within a temperature range of -30°C to 85°C for robust environmental performance.
- Supports a voltage rating of 50V AC and current of 500 mA tailored for low-profile electronic devices.
- Suitable for small mobile devices such as digital cameras, mobile phones, audio and video players.
Product Description
Omron XF2M-1415-1A is a high-precision FPC connector featuring a 0.5 mm pitch and 14-way right angle female contacts designed for solder termination and surface mounting. This connector offers a low 2 mm on-board profile and a rotary backlock locking mechanism that secures FPC mounting while facilitating easy assembly.
The connector's gold plated beryllium copper nickel contacts guarantee excellent electrical performance with a current rating of 500 mA and a voltage rating of 50 V AC. The housing is manufactured from halogen-free liquid crystal polymer which provides high mechanical strength, flame retardancy (UL94V-0), and resistance to environmental stresses.
Its operating temperature range from -30°C up to 85°C ensures reliable performance in diverse industrial, laboratory, and commercial electronic applications. This single-row connector features dual contact positions and is designed to fit tightly in compact devices including mobile phones, digital cameras, digital audio/video players, DVD players, and digital video cameras.
Key product features include the rotary backlock mechanism for secure connection, side entry SMT terminals, and compatibility with FPC thicknesses up to 0.3 mm. The halogen-free materials support environmentally friendly manufacturing standards.
Features a 0.5 mm pitch and 14 contacts for precise signal transmission. Right angle female orientation enables space saving on PCBs. Gold plated beryllium copper nickel contacts provide excellent conductivity and corrosion resistance.
Rotary backlock locking mechanism for secure and reliable connection. Halogen free liquid crystal polymer housing ensures flame retardancy and durability. Wide operating temperature range from -30°C to 85°C for reliable use.
Low 2 mm board profile suitable for compact electronic devices. Surface mount termination ideal for automated PCB assembly. Ideal for applications in mobile phones, digital cameras, and audio/video equipment.
This Omron XF2M series connector supports robust and high-quality FPC connections in electronics manufacturing within industrial, laboratory, and commercial environments. Explore more FPC Connector options and related Omron components on EnvMart for your precision connector needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector features a 0.5 mm pitch and has 14 contacts designed for precise signal transmission.
It operates within a maximum temperature range of 85°C, ensuring reliable performance in various environments.
This model supports surface mounting, making it suitable for automated PCB assembly.
The housing is made from halogen-free liquid crystal polymer, while the contacts are constructed from beryllium copper nickel with gold plating.
The connector has a voltage rating of 50V AC and a current rating of 500 mA, suitable for low-profile electronic devices.
It has a right angle female orientation, which is advantageous for tight space applications on PCBs.
The minimum operating temperature is -30°C, allowing it to function in a wide range of conditions.
This model uses solder termination, which is common for secure connections in electronic applications.
It is suitable for compact electronic devices such as mobile phones, digital cameras, and audio/video players.
Yes, it is equipped with a rotary backlock mechanism that ensures a secure connection and facilitates easy assembly.
The connector has a low on-board profile of 2 mm, making it ideal for compact electronic designs.
This connector features a single row design, which is typical for many FPC connectors.
