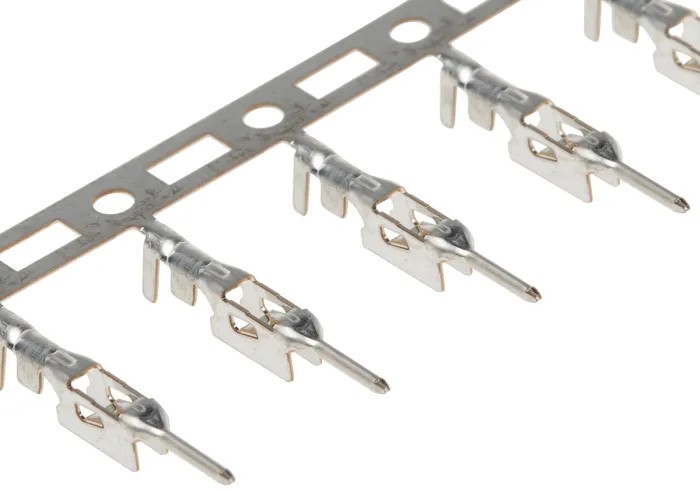

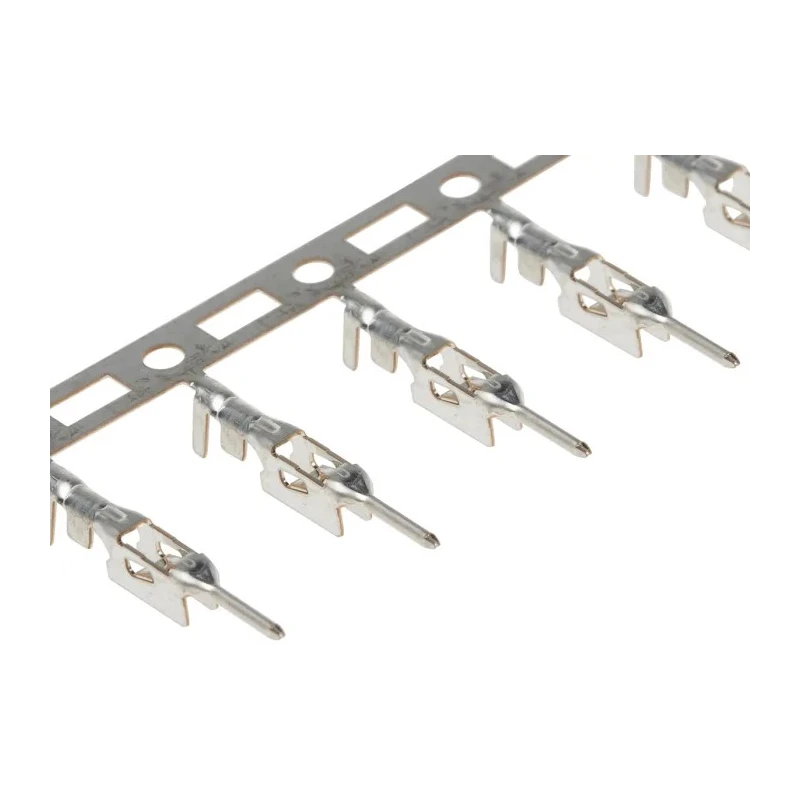

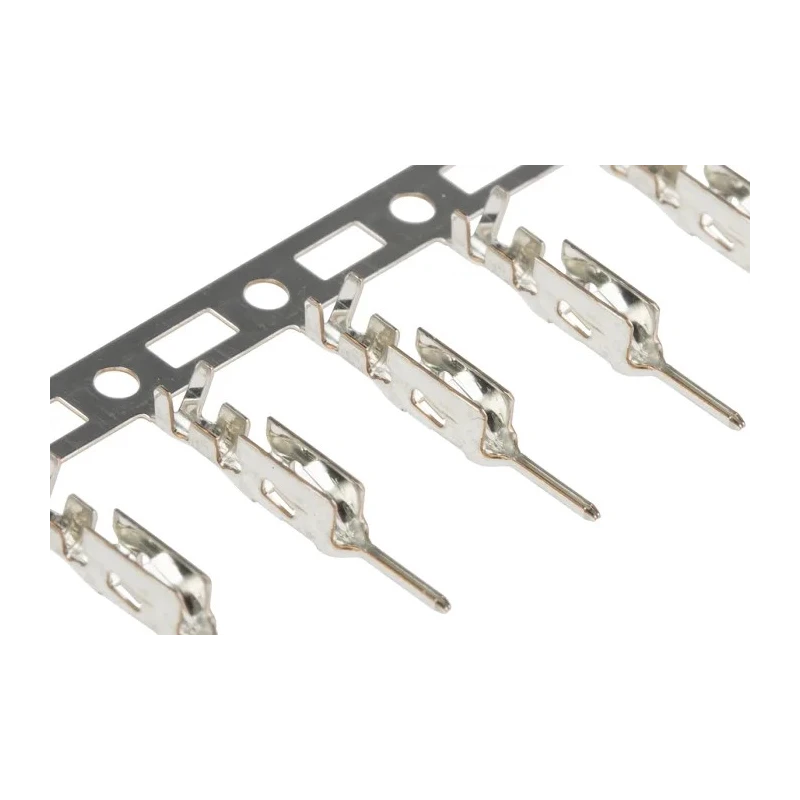

JST PA Series Male Crimp Terminal 3A Current, Tin Plating, 26 AWG Min, 22 AWG Max SPAL-001T-P0.5

JST SPAL-001T-P0.5 Male Crimp Terminal is a high-quality electrical connector designed specifically for reliable and efficient wire terminations. Rated for a maximum current of 3 amps, it accommodates wire sizes ranging from 26 AWG minimum to 22 AWG maximum, making it ideal for precision electronic assembly and wiring applications.

Manufactured with phosphor bronze material, these terminals offer excellent conductivity, strength, and durability. The tin plating on the contact surfaces prevents oxidation and corrosion, ensuring a reliable electrical connection over time and in harsh environments.

This crimp terminal is built for use with PAL connectors and features a secure locking mechanism to avoid accidental disconnections during use. Secondary retainers further enhance connection security by preventing incomplete insertion or accidental disconnection, contributing to system reliability.

Operating efficiently within a temperature range of -25°C to 85°C, the terminal performs smoothly in a variety of industrial, laboratory, manufacturing, and electronics repair settings. The maximum contact resistance of 25 milliohms guarantees minimal voltage drop and optimal signal integrity.

The crimp termination type ensures a strong mechanical and electrical bond between the wire and terminal, facilitating easy installation and robust performance. Phosphor bronze contact material offers strength and conductivity.

Tinned plating provides corrosion resistance and excellent electrical contact. Designed for use with PAL connectors ensuring compatibility. Secure locking device prevents accidental disconnection in wiring assemblies. Secondary retainers add protection against incomplete insertion or disconnection.

Supports wire sizes from 26 AWG minimum to 22 AWG maximum. Suitable for current loads up to 3 amps for reliable circuit performance. Operating temperature range from -25°C to 85°C for versatile application. Maximum contact resistance of 25 milliohms for electrical efficiency.

This JST Male Crimp Terminal is widely used in electronic components assembly, power connectors, and PCB wiring harnesses across industrial and laboratory environments. It provides dependable connection solutions where mechanical strength and electrical performance are critical.
