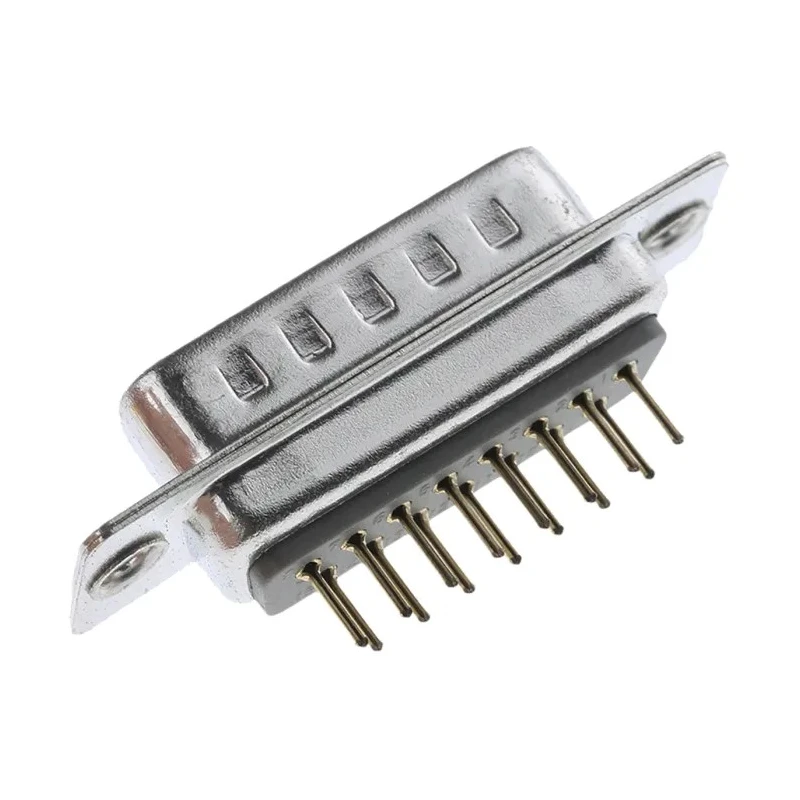

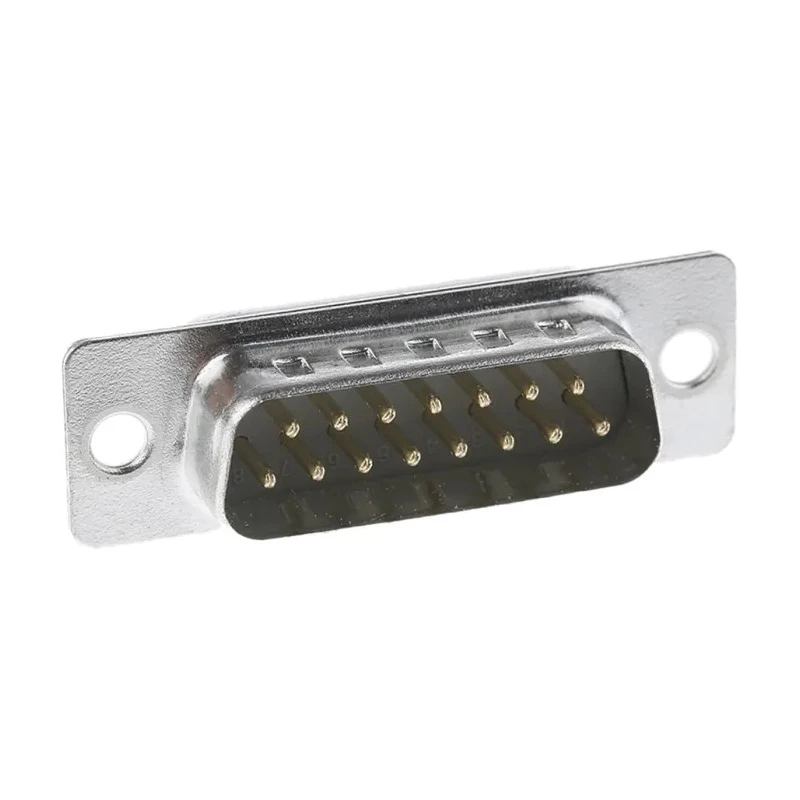

ASSMANN WSW D-Sub Connector 15 Way Straight 2.77 mm Pitch Through Hole Male A-DS 15 PP/Z

Free Delivery in India | Lowest Global Shipping Charges

ASSMANN WSW D-Sub Connector 15 Way Straight 2.77 mm Pitch Through Hole Male A-DS 15 PP/Z

Name: ASSMANN WSW D-Sub Connector 15 Way Straight 2.77 mm Pitch Through Hole Male A-DS 15 PP/Z
Brand: ASSMANN WSW
SKU: 208248
Price: 1.22 USD
Availability: InStock



Category D-Sub Connector Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	ASSMANN WSW
Orientation	Straight
Current	3A
Model	A-DS 15 PP/Z
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	A-DS
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Pitch	2.77mm
Contact Plating	Gold over Nickel
Number of Contacts	15
Contact Gender	Male
Connector Gender	Male
Connector Type D	D-Sub
D-Sub Shell Size	DS-15

Key Features

Features 15 contacts with brass material and gold over nickel plating for durability.
Supports a current rating of 3A and voltage rating of 250V.
Constructed with polybutylene terephthalate housing for thermal stability.
Operates safely between -40°C and 105°C.
Termination type is solder, suitable for reliable electrical connections.
Complies with series A-DS and is designed for straight orientation mounting.
Connector gender and contact gender both male, ensuring proper mating with female connectors.
Manufactured in China with robust industrial applications in electronics and power connections.

Product Description

ASSMANN WSW A-DS 15 PP/Z is a premium D-Sub Connector featuring 15 way straight contacts designed for through-hole PCB mounting applications. It has a precise 2.77 mm pitch which ensures accurate placement and connectivity in electronic assemblies.

The connector utilizes brass contacts plated with gold over nickel, guaranteeing excellent conductivity and resistance to corrosion. Its polybutylene terephthalate housing material provides high mechanical strength and thermal resistance, operating effectively within a temperature range of -40°C to 105°C.

Rated for 3A current and 250V voltage, this connector is ideal for a variety of industrial sectors including electronics manufacturing, power supply connections, and control systems integration. Its solder termination type offers reliable and permanent contact with circuit boards.

This D-Sub connector adheres to the A-DS series standard and features a straight orientation, making it compatible with a wide range of devices that require secure male-to-female mating.

15 contacts with gold plated brass material for durability. Rated at 3A current and 250V voltage for safe operation. Polybutylene terephthalate housing offers thermal and mechanical resilience. Through hole mounting type for PCB integration.

Operating temperature from -40°C to 105°C ensures versatility. Solder termination type compatible with standard PCB assembly. Connector and contact gender male for secure connection. Manufactured in China under series A-DS compliance.

This connector is ideally suited for use in electronic components, power and computing connectors, industrial automation, and communication applications. It contributes to enhanced production efficiency owing to its reliable construction and standardized design.
