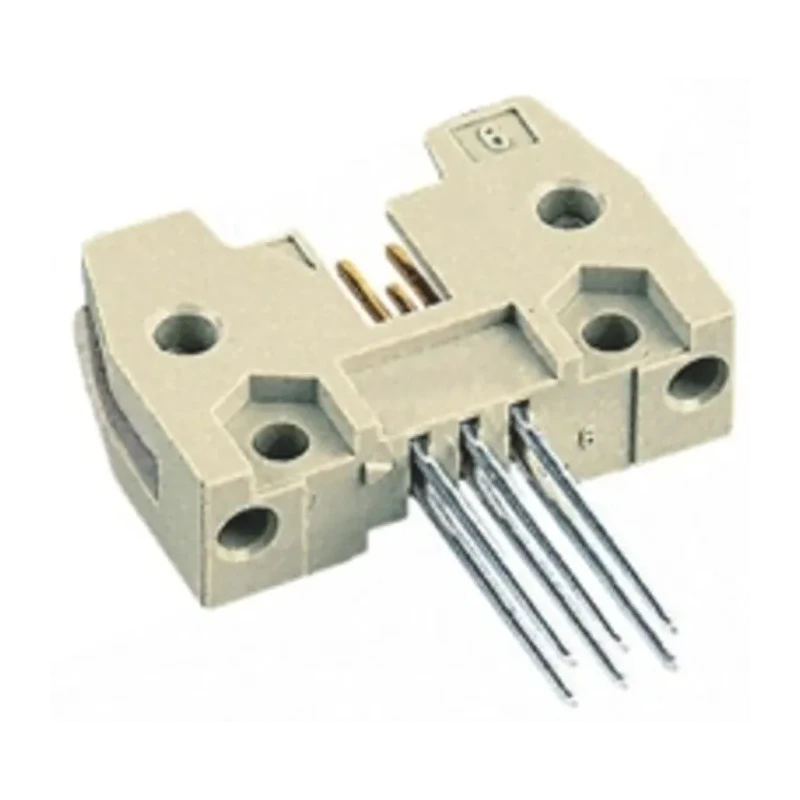

HARTING PCB Header SEK 18 Series Straight Through Hole, 20 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 09185206927
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | HARTING |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 18 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a robust polybutylene terephthalate housing for enhanced durability.
- Gold-plated copper alloy contacts ensure reliable electrical connections.
- Supports a current rating of 1A and voltage of 1 kV for safe operation.
- Operates reliably between -55°C and 125°C, suitable for varied environments.
- Through hole mounting type enables stable PCB integration.
- Solder termination type with wrap post connectors for easy installation.
- Compact 2-row design with 2.54 mm row pitch optimizes board space.
- Complies with IEC 60 603-13 standards without additional approvals.
Product Description
HARTING 09185206927 PCB Header SEK 18 Series is a high-quality straight through hole PCB header designed for secure wire-to-board connections in electronic assemblies. It features 20 male contacts arranged in two rows with a 2.54 mm pitch, ideal for compact and precise PCB layouts.
The connector’s housing is made from polybutylene terephthalate, providing excellent mechanical and thermal resistance for industrial and laboratory applications. Gold-plated copper alloy contacts offer superior conductivity and corrosion resistance, ensuring long-term reliability in demanding environments.
With a current rating of 1A and voltage rating of 1 kV, this PCB header is suited for a wide range of electronic circuit requirements. The operating temperature range from -55°C to 125°C allows deployment in both cold and high-temperature conditions, typical for manufacturing, industrial automation, and HVAC control systems.
The through hole mount type and solder termination with wrap post connectors enable secure mechanical attachment and easy PCB assembly. Its shrouded design protects contacts from accidental short circuits while maintaining excellent signal integrity.
This product does not carry specific approvals but complies with IEC 60 603-13 standards, assuring quality and compatibility with standard electrical safety norms. Robust polybutylene terephthalate housing for durability.
Gold-plated copper alloy contacts for reliable connections. Current rating of 1A and voltage rating of 1 kV. Wide operating temperature range from -55°C to 125°C. Through hole mounting for firm PCB attachment. Solder termination with wrap post connectors for installation.
Compact 2-row, 2.54 mm pitch design. Complies with IEC 60 603-13 standard.
This HARTING PCB Header series is ideal for electronics manufacturing, industrial control systems, automation equipment, and other applications requiring durable and high-performance wire-to-board connections. Browse our wide range of connectors and PCB hardware to find compatible parts and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 1A and a voltage rating of 1 kV, making it suitable for various electronic circuit requirements.
It operates reliably between -55°C and 125°C, allowing for use in both cold and high-temperature environments.
The PCB header features 20 male contacts arranged in two rows with a 2.54 mm pitch, optimizing board space for compact layouts.
It utilizes a through hole mounting type, ensuring stable integration with printed circuit boards.
The housing is made from polybutylene terephthalate, while the contacts are composed of gold-plated copper alloy, providing reliability and conductivity.
This model features a solder termination type with wrap post connectors, facilitating easy installation.
Yes, it complies with IEC 60 603-13 standards, which assures quality and compatibility with standard electrical safety norms.
The orientation of this connector is straight, designed for straightforward wire-to-board connections.
The shrouded design protects the contacts from accidental short circuits while maintaining excellent signal integrity.
The country of origin for this product is India.
It is ideal for electronics manufacturing, industrial control systems, automation equipment, and other applications requiring durable wire-to-board connections.
The pitch of this model is 2.54 mm, which is standard for many PCB layouts.
