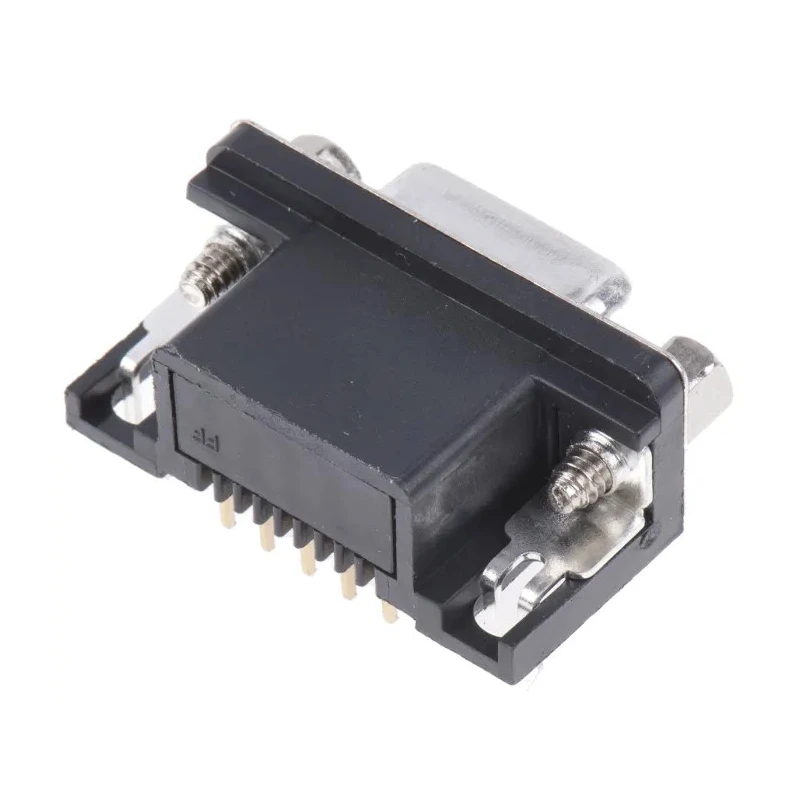

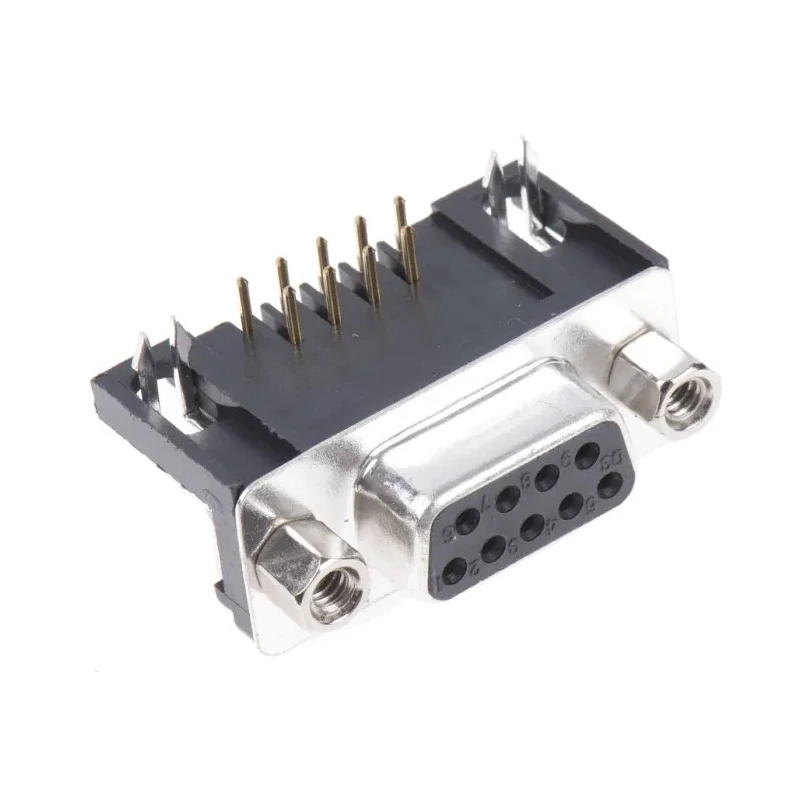

ASSMANN WSW D-Sub Connector 9 Contacts Right Angle 2.77 mm Pitch Through Hole with 4 to 40 UNC Screw Lock A-DF 09 A/KG-T1

Free Delivery in India | Lowest Global Shipping Charges

ASSMANN WSW D-Sub Connector 9 Contacts Right Angle 2.77 mm Pitch Through Hole with 4 to 40 UNC Screw Lock A-DF 09 A/KG-T1

Name: ASSMANN WSW D-Sub Connector 9 Contacts Right Angle 2.77 mm Pitch Through Hole with 4 to 40 UNC Screw Lock A-DF 09 A/KG-T1
Brand: ASSMANN WSW
SKU: 208341



Category D-Sub Connector Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	ASSMANN WSW
Orientation	Right Angle
Current	3A
Model	A-DF 09 A/KG-T1
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	A-DF
Mounting Hardware	4 to 40 UNC Screw Lock
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Pitch	2.77mm
Contact Plating	Gold, Nickel
Number of Contacts	9
Contact Gender	Female
Connector Type D	D-Sub

Key Features

This connector supports a current rating of 3A for reliable electrical performance.
It features a 4 to 40 UNC screw lock mechanism ensuring secure mounting.
The housing is made from durable polybutylene terephthalate for thermal and mechanical stability.
Contacts are female, made of brass, plated with gold and nickel for enhanced conductivity and corrosion resistance.
Designed to operate between -40°C and 105°C for versatile temperature conditions.
Operating voltage is rated up to 250V for standard electronic applications.
Termination type is solder suited for PCB assembly.
Manufactured in China and conforming to the A-DF series standards.

Product Description

ASSMANN WSW A-DF 09 A/KG-T1 is a high-quality D-Sub Connector designed for through-hole PCB mounting applications. It features 9 female contacts with a 2.77 mm pitch and a right angle orientation, optimizing PCB layout flexibility in compact electronic assemblies.

Rated for 3A current and 250V voltage, this connector ensures reliable electrical performance in a range of industrial and commercial electronics. The housing material, polybutylene terephthalate, provides excellent thermal resistance up to 105°C and robust mechanical strength, supporting operation in harsh environments.

The device utilizes a 4 to 40 UNC screw lock hardware to guarantee secure mounting and stable electrical connections, preventing disconnections under vibration or movement. Contacts are made from brass and plated with gold and nickel to enhance conductivity and resist corrosion, ensuring long-term durability and performance.

Suitable for use in industrial automation, manufacturing electronics, instrumentation, and other electronic equipment requiring dependable D-Sub connections. Manufactured in China, this D-Sub Connector conforms to the A-DF series standards by ASSMANN WSW and is ideal for reliable and precise electronic component interfacing.

This connector supports a current rating of 3A for reliable electrical performance. It features a 4 to 40 UNC screw lock mechanism ensuring secure mounting. The housing is made from durable polybutylene terephthalate for thermal and mechanical stability.

Contacts are female, made of brass, plated with gold and nickel for enhanced conductivity and corrosion resistance. Designed to operate between -40°C and 105°C for versatile temperature conditions. Operating voltage is rated up to 250V for standard electronic applications.

Termination type is solder suited for PCB assembly. Manufactured in China and conforming to the A-DF series standards. Explore more high-quality connectors and electronic components at EnvMart for your industrial, manufacturing, and electronic design requirements.
