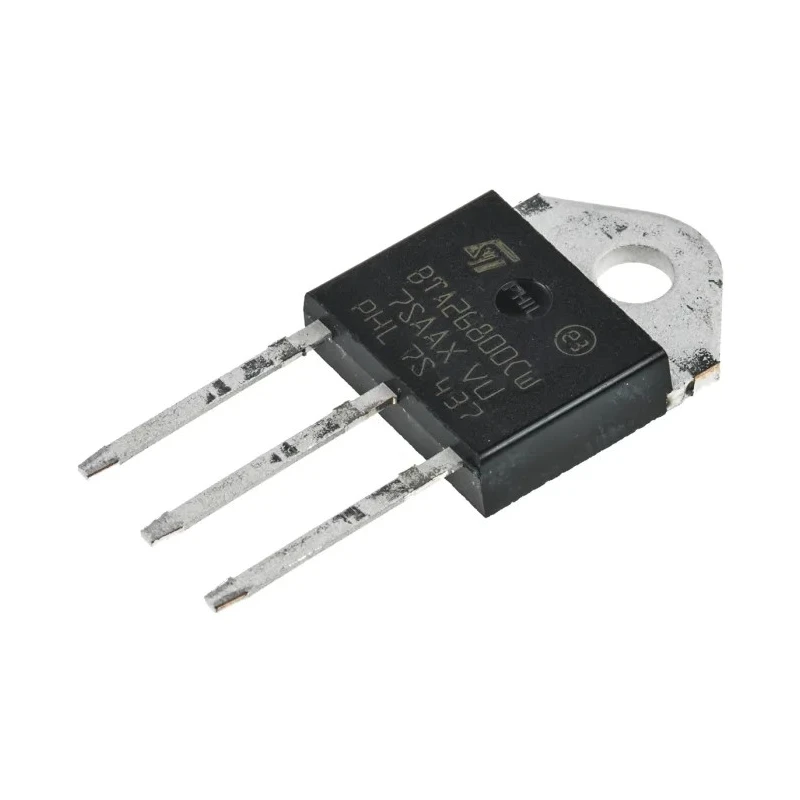

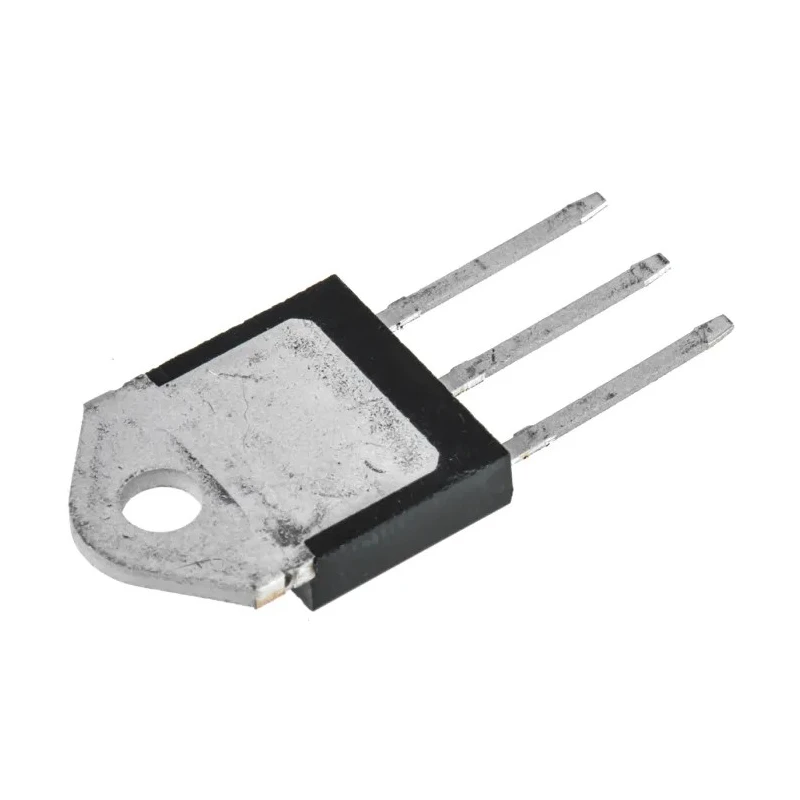

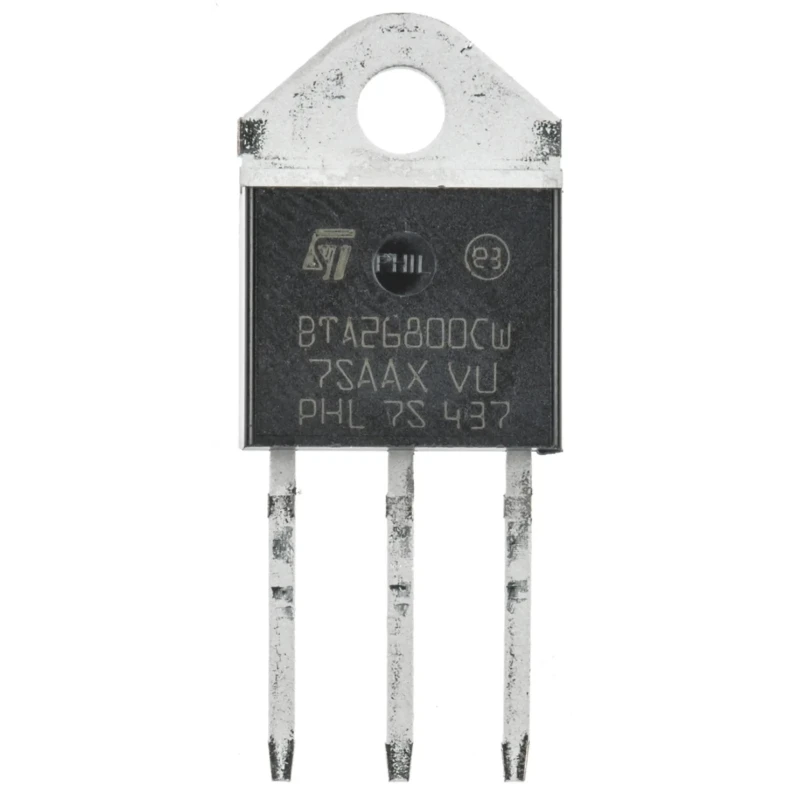

STMicroelectronics Through Hole 3-Pin TRIAC 25A 800V Gate Trigger 1.3V BTA26-800CWRG

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Through Hole 3-Pin TRIAC 25A 800V Gate Trigger 1.3V BTA26-800CWRG

Name: STMicroelectronics Through Hole 3-Pin TRIAC 25A 800V Gate Trigger 1.3V BTA26-800CWRG
Brand: STMicroelectronics
SKU: 219220
Price: 7.38 USD
Availability: InStock



Category Discrete Semiconductors Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	12.85mm
Length	15.5mm
Model	BTA26-800CWRG
Mount Type	Through Hole
Configuration	Single
Maximum Operating Temperature	125°C
Package Type	TOP
Minimum Operating Temperature	-40°C
Pin Count	3
Rated Average On-State Current Irms	25A
Repetitive Peak Reverse Voltage VDRM	800V
Surge Current Rating	260A
Maximum Gate Trigger Current Igt	35mA
Maximum Holding Current Ih	50mA
Maximum Gate Trigger Voltage Vgt	1.3V
Peak On-State Voltage	1.55V
Repetitive Peak Off-State Current	5μA
Peak Gate Power Dissipation	1W

Key Features

High surge current rating of 260A ensures robustness under transient conditions.
Gate trigger voltage of 1.3V enables efficient triggering circuit design.
Temperature operating range from -40°C to 125°C supports industrial environments.
Compact package with dimensions of 15.5mm length and 12.85mm height fits standard through-hole PCB layouts.
Maximum gate trigger current limited to 35mA for stable operation.
Low repetitive peak off-state current of 5μA minimizes leakage losses.
Peak gate power dissipation rated at 1W safeguards gate circuit stability.
Single configuration 3-pin TRIAC suitable for AC power switching applications.

Product Description

STMicroelectronics BTA26-800CWRG Through Hole 3-Pin TRIAC delivers reliable switching performance for AC power control applications. Rated for a 25A average on-state current and an 800V repetitive peak reverse voltage, this device enables robust operation in industrial, commercial, and consumer electronics where power regulation is critical.

The TRIAC features a gate trigger voltage of 1.3V and a gate trigger current of 35mA, allowing precise gate control with minimal input drive. Its operating temperature range from -40°C to 125°C makes it suitable for demanding environments.

Designed with a TO package measuring 15.5mm in length and 12.85mm in height, the BTA26-800CWRG mounts easily on standard through-hole PCBs and is ideal for compact designs. It offers a surge current rating of 260A, which ensures durability against high transient currents during startup or fault conditions.

The device also features a low repetitive peak off-state current of 5μA, reducing leakage during OFF states, and a peak gate power dissipation of 1W to protect gate circuitry. Its single 3-pin configuration supports general purpose power switching, motor control, lighting controls, and AC load regulation.

High surge current rating of 260A ensures robustness under transient conditions. Gate trigger voltage of 1.3V enables efficient triggering circuit design. Temperature operating range from -40°C to 125°C supports industrial environments.

Compact package with 15.5mm length and 12.85mm height fits through-hole mounting. Maximum gate trigger current limited to 35mA for stable operation.

This TRIAC is suited for industrial automation, home appliance control, HVAC systems, and other applications requiring reliable AC switching. Its STMicroelectronics quality ensures consistent electrical performance and durability.
