Hirose 20-Way 2 Row Shrouded IDC Connector Male Through Hole 2.54mm Pitch HIF3BA-20PA-2.54WB(63)

Free Delivery in India | Lowest Global Shipping Charges

Hirose 20-Way 2 Row Shrouded IDC Connector Male Through Hole 2.54mm Pitch HIF3BA-20PA-2.54WB(63)

Name: Hirose 20-Way 2 Row Shrouded IDC Connector Male Through Hole 2.54mm Pitch HIF3BA-20PA-2.54WB(63)
Brand: Hirose
SKU: 219085
Price: 6.59 USD
Availability: InStock



Category IDC Connector Brand Hirose Condition New

Specifications

Country of Origin	Malaysia
Voltage	650V ac
Brand	Hirose
Orientation	Right Angle
Current	1A
Model	HIF3BA-20PA-2.54WB(63)
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	HIF3B
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Male
Connector Gender	Male
Shrouded/Unshrouded	Shrouded

Key Features

This IDC connector is shrouded with a right angle orientation for robust electrical connections.
Designed to operate at voltages up to 650V AC and currents of 1A.
Termination is by solder on brass contacts plated with gold for reliable conductivity.
Constructed with a durable polybutylene terephthalate housing suitable for various industrial applications.
Operating temperature range from -55°C to 85°C ensures performance in diverse environments.
Compatible with UL2651 AWG#28 flat ribbon cables, commonly used in electronic assemblies.
Mechanism included to prevent mis-insertion, enhancing connection safety.
Manufactured in Malaysia ensuring consistent quality standards.

Product Description

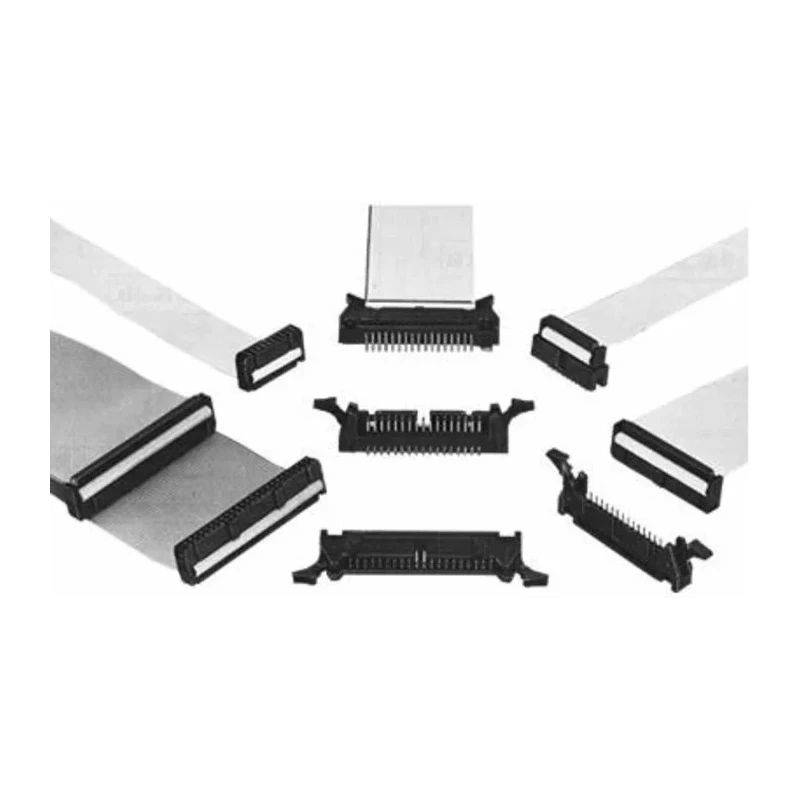

Hirose presents the HIF3BA-20PA-2.54WB(63), a 20-way, 2 row male IDC connector designed for through-hole mounting applications where reliable and compact electrical connections are critical.

This connector features a 2.54 mm pitch and a right angle shrouded design, providing mechanical stability and protection against accidental disconnection. Its brass contacts are plated with gold and are solder-terminated to ensure excellent electrical performance with minimal contact resistance.

Operating at up to 650 volts AC and carrying currents up to 1 ampere, this connector is suitable for a broad range of electronic equipment and industrial interfaces. The polybutylene terephthalate housing resists mechanical wear and chemical degradation, supporting device longevity.

Designed to work specifically with UL2651 AWG#28 flat ribbon cables, this connector incorporates a mis-insertion prevention mechanism to enhance installation safety and maintain signal integrity. The wide operating temperature range from -55°C to +85°C makes it suitable for environments ranging from industrial machinery to communication equipment.

This IDC connector is shrouded with a right angle orientation for robust electrical connections. Designed to operate at voltages up to 650V AC and currents of 1A. Termination is by solder on brass contacts plated with gold for reliable conductivity.

Constructed with a durable polybutylene terephthalate housing suitable for various industrial applications. Operating temperature range from -55°C to 85°C ensures performance in diverse environments. Compatible with UL2651 AWG#28 flat ribbon cables, commonly used in electronic assemblies.

Mechanism included to prevent mis-insertion, enhancing connection safety. Manufactured in Malaysia ensuring consistent quality standards. This connector is ideal for industrial, laboratory, manufacturing, and electronic assembly applications requiring reliable, compact, and easy-to-install wire-to-board connections.
