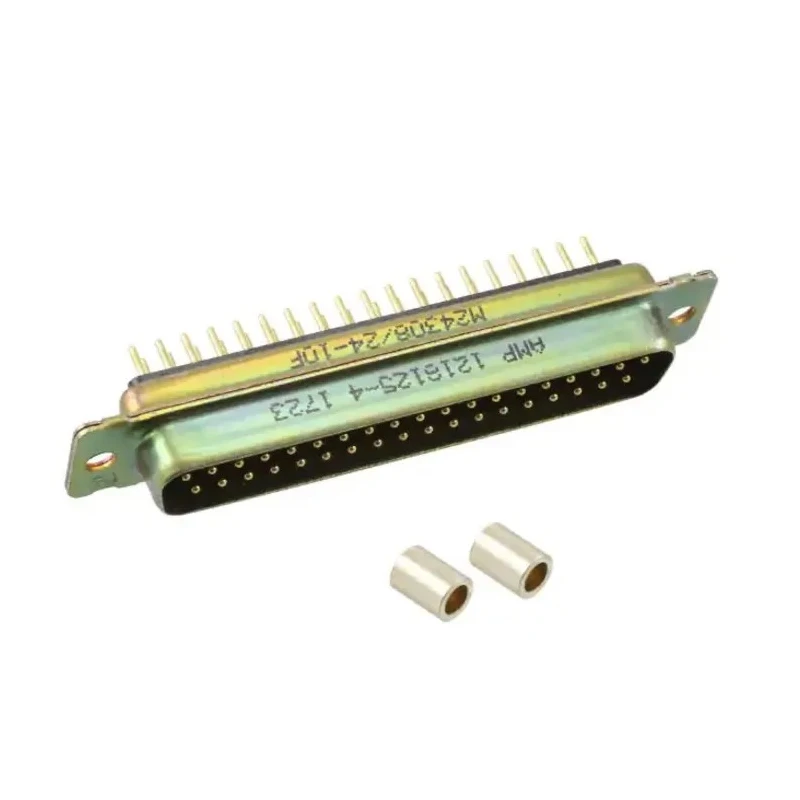

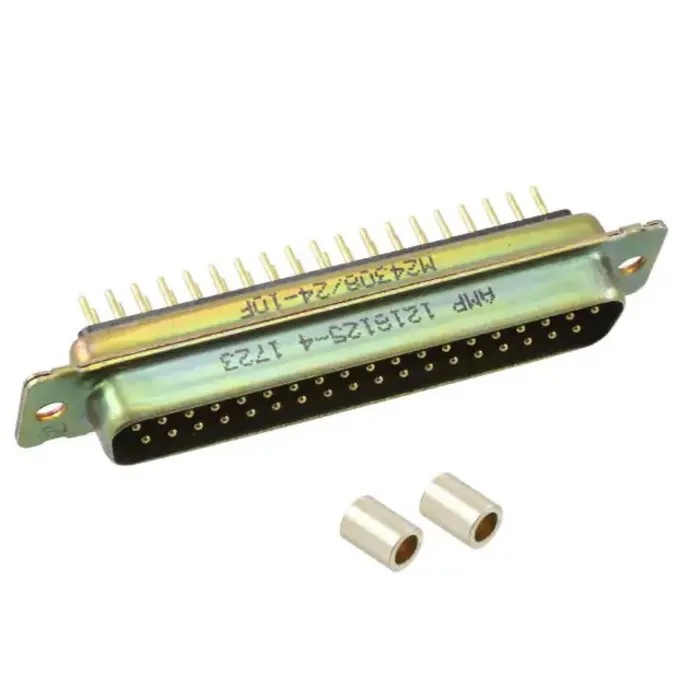

Amphenol India 37 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector Male with 4 to 40 Screw Lock M24308/24-10F
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1000V |
| Brand | Amphenol India |
| Orientation | Straight |
| Current | 7.5A |
| Model | M24308/24-10F |
| Mount Type | Panel Mount |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | M24308 |
| Mounting Hardware | 4 to 40 Screw Lock |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.77mm |
| Contact Plating | Gold |
| Number of Contacts | 37 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | D-Sub |
Key Features
- Features 37 male contacts with a pitch of 2.77 mm.
- Supports a current rating of 7.5 amperes for reliable performance.
- Operates within a temperature range of -55°C to 125°C.
- Constructed with copper alloy contacts plated with gold for excellent conductivity and corrosion resistance.
- Includes 4 to 40 screw lock mounting hardware for secure panel attachment.
- Rated for a voltage up to 1000 volts, suitable for high-voltage electronics.
- Termination type is crimp to ensure solid electrical connections.
- Panel mount orientation with straight connector style for versatile installations.
Product Description
Amphenol India M24308/24-10F is a high-quality 37 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector Male designed for industrial and commercial electronic applications. This connector is ideal for rack and panel setups requiring secure and reliable connections.
It features 37 contacts made of copper alloy with gold plating to optimize conductivity and minimize oxidation over time. The housing is constructed from robust glass filled polyester, providing mechanical strength and electrical insulation.
Operating temperature ranges from -55° Celsius to 125° Celsius, allowing usage in diverse environmental conditions. The connector supports a current up to 7.5 A and voltage levels up to 1000 V, ensuring suitability for demanding electronic circuits.
Mounting is facilitated via 4 to 40 screw lock hardware, guaranteeing secure panel attachment and preventing inadvertent disconnections. The crimp termination ensures reliable and easy-to-maintain electrical contacts suitable for professional PCB assembly workflows.
Applications for this D-Sub connector include industrial automation equipment, data communication panels, and control systems in manufacturing, laboratory instrumentation, and HVAC control systems.
Features 37 male contacts with 2.77 mm pitch spacing. Gold-plated copper alloy contacts for exceptional conductivity. Glass filled polyester housing enhances durability and insulation. Supports current up to 7.5A and voltage up to 1000V.
Wide operating temperature range from -55°C to 125°C for extreme environments. Panel mount design with 4 to 40 screw lock mounting hardware. Crimp termination type for secure electrical connections. Ideal for rack, panel, and industrial electronic applications.
Amphenol India M24308/24-10F D-Sub Connectors offer a dependable solution for robust industrial electronic interfacing. Browse our Electronics Components category for additional connector types and accessories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 7.5 amperes, ensuring reliable performance in electronic applications.
This model is rated for a voltage up to 1000 volts, making it suitable for high-voltage electronics.
The contacts are made of copper alloy plated with gold for excellent conductivity, while the housing is constructed from glass filled polyester for mechanical strength and electrical insulation.
It includes 4 to 40 screw lock mounting hardware, providing secure panel attachment and preventing inadvertent disconnections.
The termination type is crimp, ensuring solid electrical connections suitable for professional PCB assembly workflows.
This model features 37 male contacts with a pitch of 2.77 mm, designed for reliable connections in various applications.
It is ideal for industrial automation equipment, data communication panels, and control systems in manufacturing and laboratory instrumentation.
The Amphenol India M24308/24-10F is manufactured in India.
It is a male D-Sub connector, designed for panel mount applications.
Installation requires the use of the included 4 to 40 screw lock hardware to ensure secure mounting to panels.
