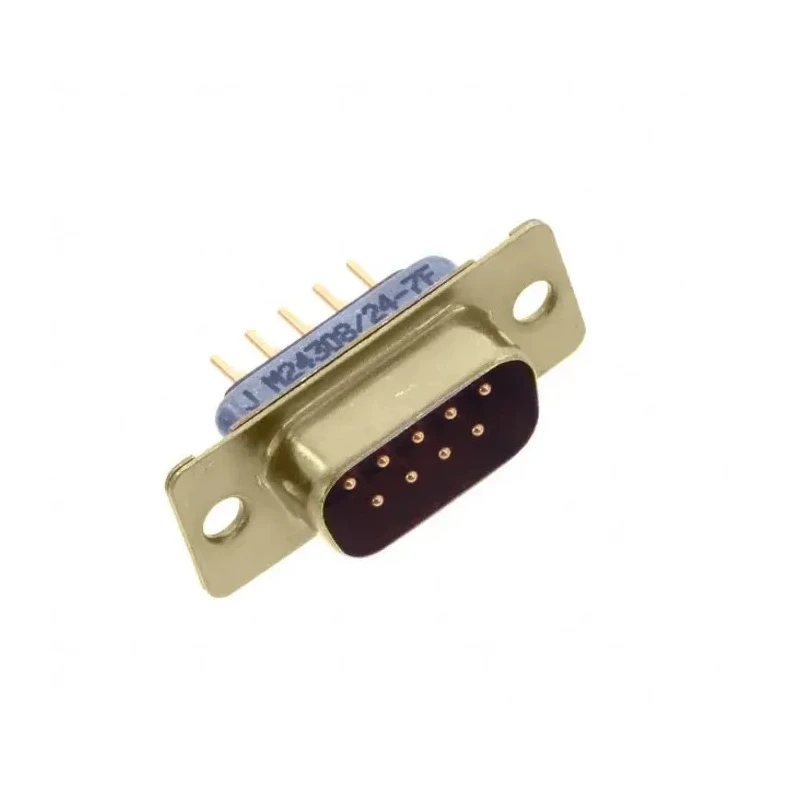

Amphenol India 9 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector with 4 to 40 Screw Lock Female M24308/24-7F

Amphenol India M24308/24-7F is a high-quality 9 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector designed to provide reliable electrical connections in demanding environments. It features a robust glass-filled polyester housing that offers excellent mechanical strength and electrical insulation. The connector is designed with 9 copper alloy contacts plated with gold, which guarantees superior conductivity and resistance to corrosion over time. The contact pitch of 2.77 mm aligns with standard M24308 specifications, ensuring compatibility in rack and panel applications.

This connector is suitable for currents up to 7.5 Amperes and voltages up to 1000 Volts, making it ideal for use in electronic equipment requiring secure and dependable connector interfaces. Its operating temperature range spans from -55°C to 125°C, allowing usage in harsh industrial, laboratory, and commercial environments. The termination method is crimp type, promoting a secure and maintainable connection to the wiring.

The panel mount design includes 4 to 40 screw lock mounting hardware, providing firm mechanical fastening, which is essential for applications subject to vibration or frequent mating cycles. The female connector gender mates with male copper alloy gold-plated contacts for consistent electrical performance and durability.

Typical use cases include industrial control systems, instrumentation, telecommunications, computing equipment, and other electronic assemblies where secure D-Sub connections are required. The connector is manufactured in India, complying with rigorous quality standards.

9 contacts for versatile connection options. Straight orientation and panel mount feature for easy installation. High-grade materials including glass-filled polyester housing and gold-plated copper alloy contacts. Operating voltage of 1000 V and current rating of 7.5 A.

Wide operating temperature range from -55°C to 125°C for diverse environments. Crimp termination for reliable wire attachment. 4 to 40 screw lock mounting hardware provides secure panel fixing. M24308 series standard compliance ensures compatibility.
