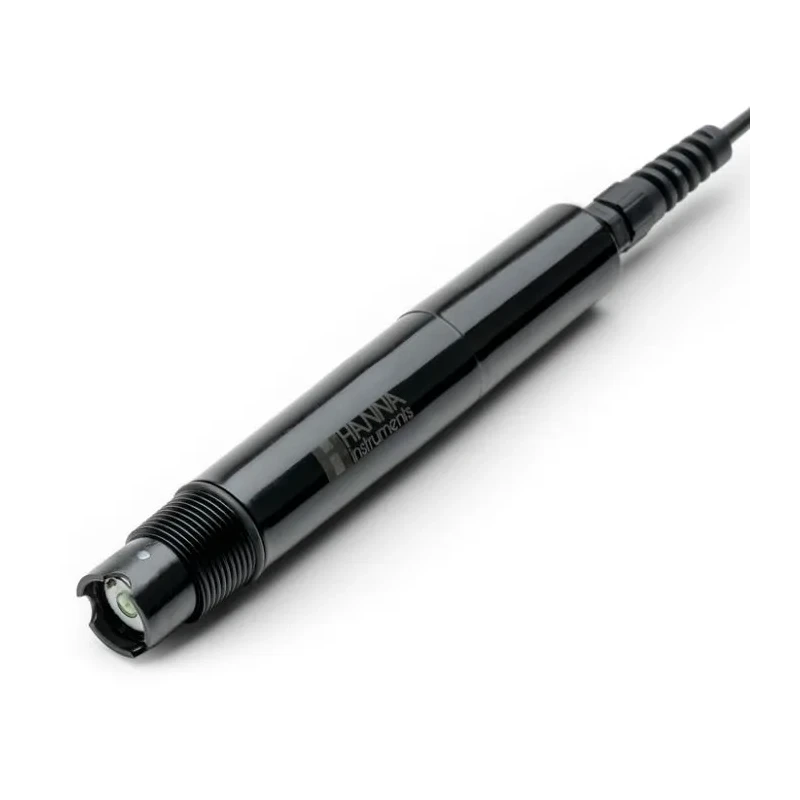

Hanna HI1000 Series Process Digital pH Probe-50m (164.0')-HF - Hydrofluoric Acid Resistant-PTFE
Specifications
| Country of Origin | India |
|---|---|
| Measurement Range | 0–10 pH (HF glass) |
| Body Material | PVDF (Polyvinylidene Fluoride) |
| Temperature range | -5 to 80°C (LT), 0 to 100°C (HT), 2–?°C (HF glass) |
| Outer Diameter | 22.5 mm |
| Model | HI1006-4850 |
| Cable Length | 50 m (164.0 ft) |
| Temperature Sensor | Built-in Pt100 |
| Max. Pressure | 6 bar |
| Connector Type | Direct wire connection |
| Type of Electrolyte | polymer |
| Tip / Shape | Flat, HF-resistant glass |
| Matching Pin | yes |
| Glass Type | HF glass (hydrofluoric acid resistant) |
| Probe type | Digital Process pH Probe |
| Product Condition | New |
| MPN | HI1006-4850 |
| Reference Junction | PTFE, Double Junction |

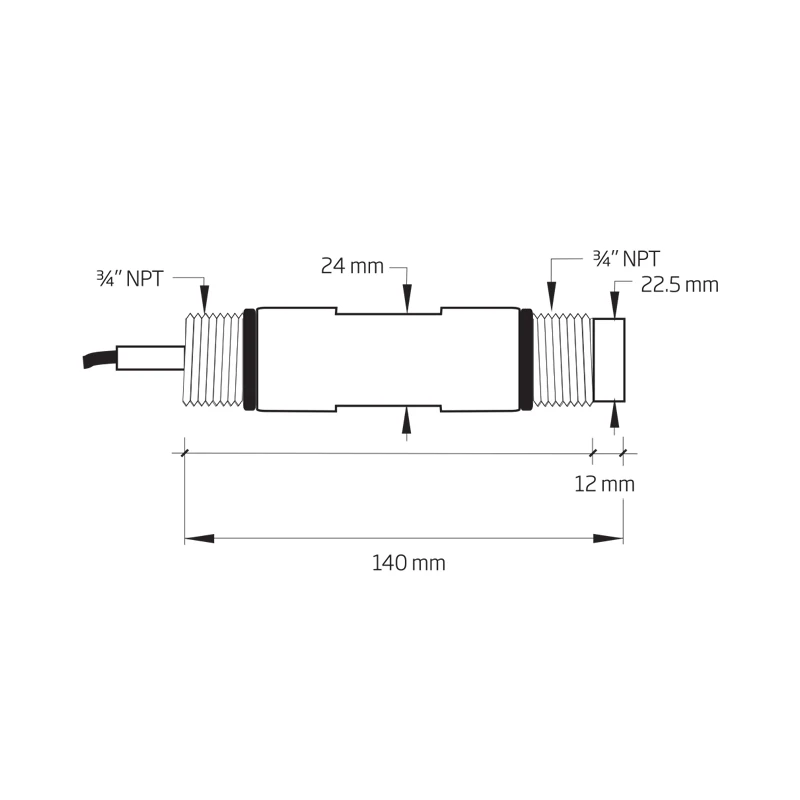

| Body/Overall Length | 140 mm |
Key Features
HI1006-4850 Process Digital pH Probe with hydrofluoric acid resistance and PTFE junction for industrial process measurement.
- Industrial digital pH probe designed for process monitoring and control.
- Features a highly chemical-resistant PVDF body for demanding environments.
- 3/4" NPT threaded connection allows for easy in-line or submersion installation.
- Special HF-resistant flat glass tip suitable for measurements in hydrofluoric acid environments.
- Integrated Pt100 temperature sensor provides real-time temperature compensation.
- Digital RS485 output ensures accurate signal transmission and immunity to electrical interference.
- Double junction, PTFE reference for effective contamination protection.
- 50-meter (164.0 feet) direct wire connection cable for long-range installations.
- Widest pH measurement range adapted to glass configuration: 0–10 pH for HF glass.
- Suitable for process industries, water treatment plants, and chemical applications where hydrofluoric acid may be present.
Product Description
HI1006-4850 is a process digital pH probe engineered for industrial and laboratory applications that demand precise pH measurement and exceptional chemical resistance. This robust electrode features a hydrofluoric acid (HF)-resistant, flat glass tip and a PTFE junction, making it suitable for aggressive environments and specialized chemical processes. The chemically resistant PVDF body is equipped with standard 3/4" NPT threads for insertion mounting in pipelines or submersion setups.
Equipped with a Pt100 temperature sensor, the HI1006-4850 provides real-time temperature compensation, improving measurement accuracy in varying thermal conditions. The probe transmits digital signals via RS485, ensuring reliable and interference-free data transfer even in electrically noisy industrial setups. The 50-meter (164.0 feet) direct wire connection supports installations in large plants and remote monitoring points.
- Industrial-grade digital pH probe for process monitoring and control tasks.
- Chemically resistant PVDF construction with PTFE reference junction.
- High-performance HF-resistant glass for measurements in hydrofluoric acid process streams.
- Integrated Pt100 temperature sensor enables fast thermal response and compensation.
- Digital RS485 output immune to typical analog signal interference.
- Supports direct wire connection across 50 meters for versatile installation.
- Double junction reference cell helps prevent contamination and prolongs probe life.

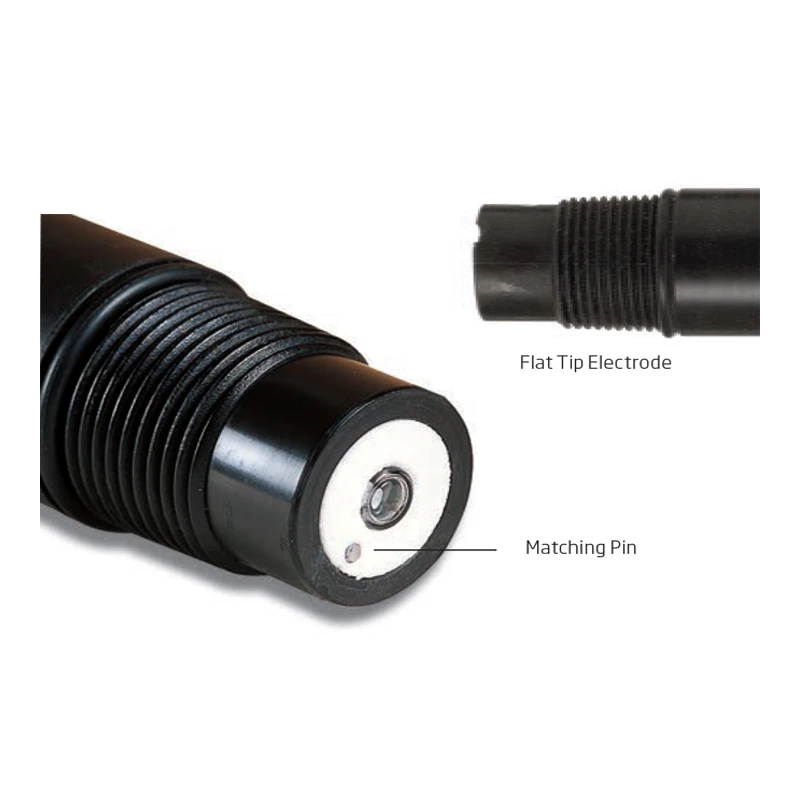

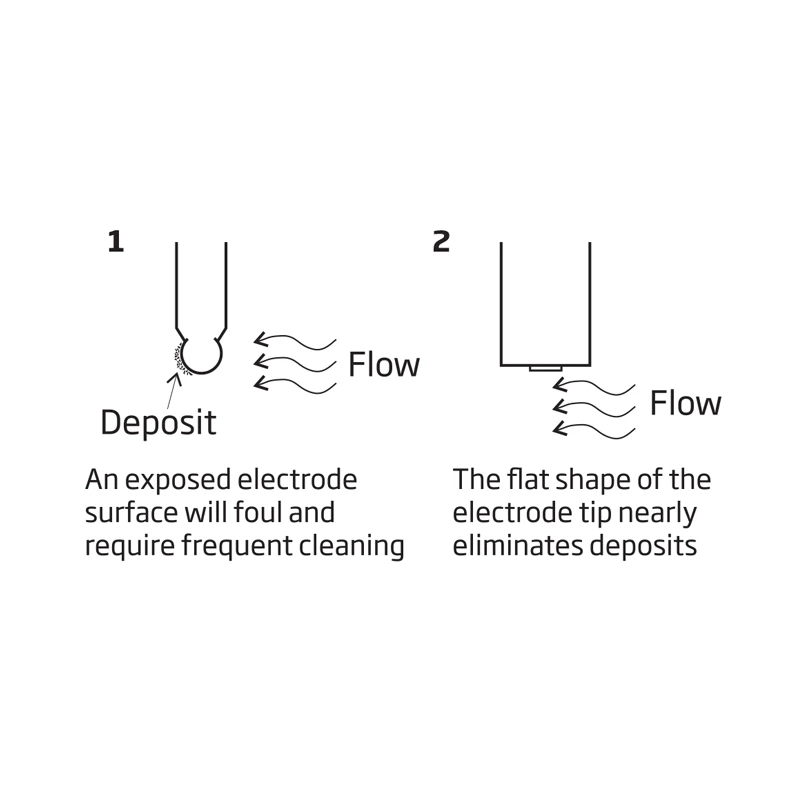

- Flat tip design optimizes sample contact and resists clogging.
Applications include chemical manufacturing, water and wastewater treatment, and process industries where exposure to hydrofluoric acid or other harsh chemicals demands a sensor with maximum durability and safety. This probe is compatible with the HI510 Universal Process Controller and other industrial process controllers requiring RS485 input.
Package includes: 1 x HI1006-4850 Digital pH Probe (50m cable, PTFE, HF glass).
Explore more process electrodes, controllers, and laboratory sensors in the EnvMart product catalog for your instrumentation and control needs.
