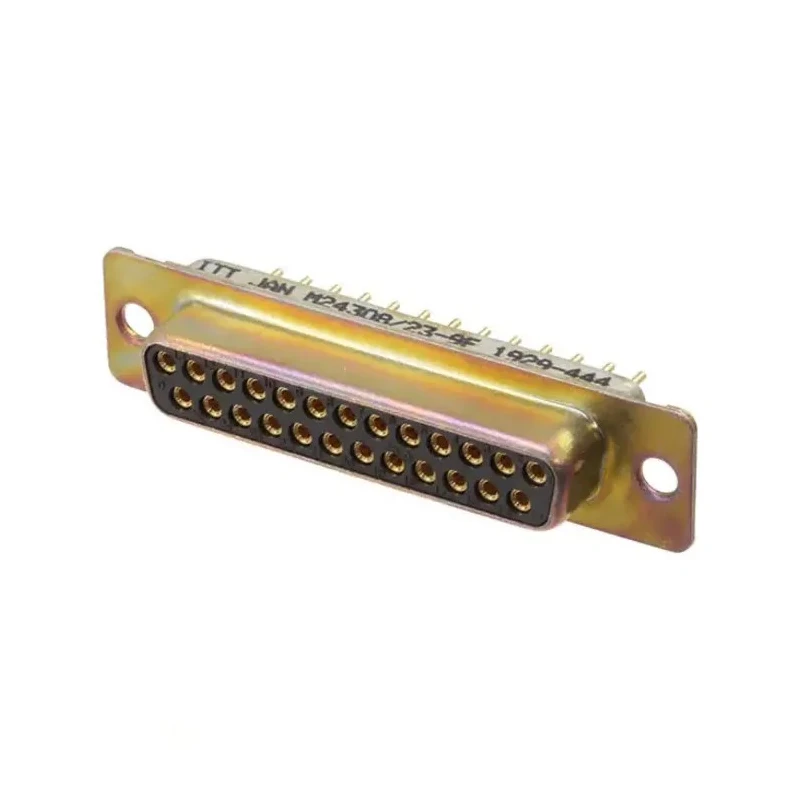

Amphenol India 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector Female with 4 to 40 Screw Lock M24308/23-9F
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1000V |
| Brand | Amphenol India |
| Orientation | Straight |
| Current | 7.5A |
| Model | M24308/23-9F |
| Mount Type | Panel Mount |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | M24308 |
| Mounting Hardware | 4 to 40 Screw Lock |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.77mm |
| Contact Plating | Gold |
| Number of Contacts | 25 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
Key Features
- Supports 25 contact points for versatile connectivity.
- Designed with a 2.77 mm pitch to ensure precise fit.
- Features 4 to 40 screw lock mounting hardware for secure attachment.
- Made from glass filled polyester housing for durability and insulation.
- Gold plated copper alloy contacts provide excellent conductivity and corrosion resistance.
- Can handle currents up to 7.5A safely.
- Operates reliably in temperatures ranging from -55°C to 125°C.
- Uses crimp termination type for secure wire connection.
Product Description
Amphenol India M24308/23-9F is a 25 way straight panel mount D-Sub connector engineered for reliable electrical interfacing in industrial, electronic, and communication equipment. Featuring a 2.77 mm pitch and a socket female connector layout, it is ideal for rack and panel mount applications demanding robust physical and electrical performance.
This connector’s housing is constructed from glass filled polyester, combining high mechanical strength with excellent electrical insulation. The contacts are precision made from copper alloy with gold plating to ensure optimal conductivity and long-lasting corrosion resistance. It supports up to 7.5 amperes of current and is rated for voltages up to 1000 volts.
The M24308/23-9F operates effectively in harsh environments across a wide temperature range from -55°C to +125°C, making it suitable for demanding industrial, lab instrumentation, and HVAC control systems. Its attachment uses a 4 to 40 screw lock, providing a secure and vibration-resistant panel mount fixing.
Designed for crimp termination, this connector offers dependable wire connection for durable performance in signal and power circuits. The series M24308 connectors have no specific formal approvals listed but meet high-quality manufacturing standards under Amphenol India’s brand, with country of origin India.
Supports 25 contact points for versatile connectivity. 2.77 mm pitch ensures precise pin spacing. 4 to 40 screw lock mounting hardware for secure attachment. Glass filled polyester housing for strength and insulation. Gold plated copper alloy contacts for corrosion resistance.
Rated for 1000V and 7.5A current applications. Operating temperature range from -55°C to 125°C. Crimp termination for secure wire connection.
This D-Sub Connector is well suited for industrial electronics, computing connectors, telecommunications, and instrumentation requiring reliable panel mounted connections. Professional engineers and technicians select this component for its durability, electrical performance, and trusted Amphenol India manufacturing heritage.
Discover more connectors and accessories from Amphenol India and other leading brands in the EnvMart Electronics & Electricals category to complete your system assemblies efficiently.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can handle currents up to 7.5A safely.
It is rated for voltages up to 1000V.
The housing is made from glass filled polyester, and the contacts are copper alloy with gold plating for optimal conductivity and corrosion resistance.
It operates reliably in temperatures ranging from -55°C to +125°C.
It uses a crimp termination type for secure wire connection.
It features 4 to 40 screw lock mounting hardware for secure attachment.
The connector has a pitch of 2.77 mm to ensure precise fit.
This model has a straight orientation.
It is well suited for industrial electronics, telecommunications, and instrumentation requiring reliable panel mounted connections.
The country of origin for this connector is India.
This connector features a female connector gender.
