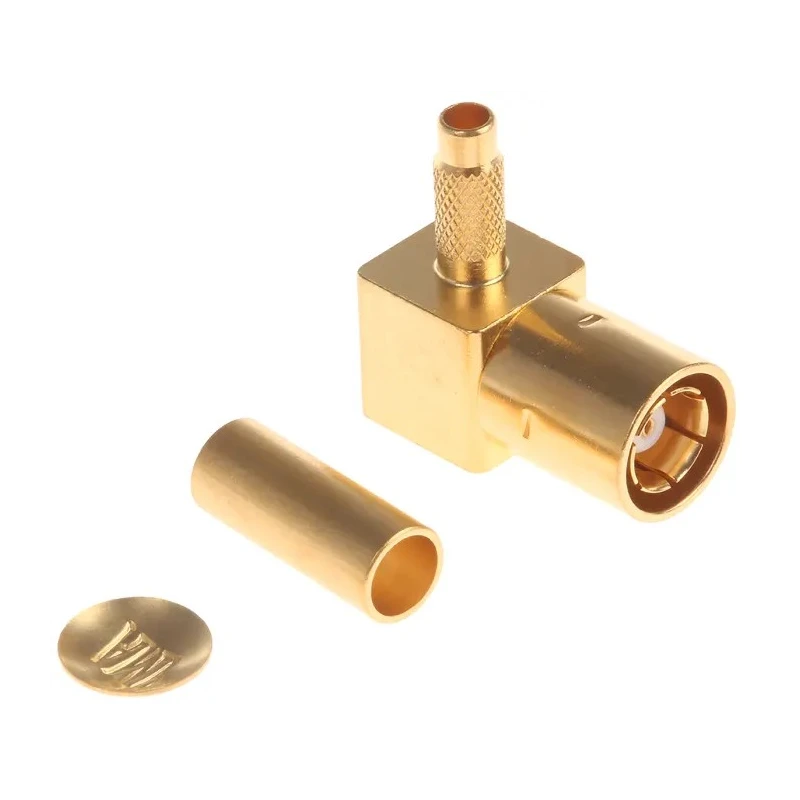

TE Connectivity SMB Series Coaxial Connector Cable Male SMB 50 Ω Right Angle Body Crimp 414002-1
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Model | 414002-1 |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Brass |
| Series | SMB |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG174, RG188, RG-316 |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | SMB |
| Body Plating | Gold |
Key Features
- This coaxial connector cable features a gold-plated brass contact and gold plated over nickel body plating for reliable connectivity.
- The cable types supported include RG174, RG188 and RG-316.
- It operates reliably in a temperature range from -65°C to 165°C.
- The termination type is crimp with a standard size ensuring compatibility within SMB series.
- The right angle orientation enhances its use in tight PCB layouts and compact applications.
- The connector features normal polarity and is designed for quick connect and disconnect use.
- It does not include a bulkhead mount and meets the SMB series design standards.
Product Description
TE Connectivity 414002-1 SMB Series Coaxial Connector Cable is a high-performance male SMB coaxial connector cable designed for electronics and RF applications requiring 50 Ω impedance and high frequency operation up to 4 GHz. Its right angle body with crimp termination offers compact mounting and secure connections, making it ideal for use in communication, industrial, HVAC, laboratory, and manufacturing environments.
The connector utilizes brass contact material plated with gold over nickel for corrosion resistance and superior signal conduction. The cable options include RG174, RG188, and RG-316, supporting a broad range of coaxial cable sizes for versatile use.
Operating across a wide temperature range from -65°C minimum to 165°C maximum allows reliable performance in both extreme cold and high heat conditions. Its standard size and absence of a bulkhead mount make it suitable for cable mounting applications requiring flexible, right angle connectors.
The SMB series is known for its reliable and quick connect/disconnect system, supporting normal polarity connections essential for consistent signal integrity. This coaxial connector cable features a gold-plated brass contact and gold plated over nickel body plating for reliable connectivity.
The cable types supported include RG174, RG188 and RG-316. It operates reliably in a temperature range from -65°C to 165°C. The termination type is crimp with a standard size ensuring compatibility within SMB series. The right angle orientation enhances its use in tight PCB layouts and compact applications.
The connector features normal polarity and is designed for quick connect and disconnect use. It does not include a bulkhead mount and meets the SMB series design standards.
This product is ideal for industrial, telecommunications, laboratory testing, electronic assembly, and aerospace applications requiring stable RF connections and compact cable routing.
Explore additional TE Connectivity Coaxial Connectors for different mounting and frequency requirements in the EnvMart catalog to find the optimal solution for your application.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a maximum frequency of 4 GHz, making it suitable for high-frequency applications.
It supports RG174, RG188, and RG-316 cable types, providing versatility for different applications.
The connector operates reliably within a temperature range from -65°C to 165°C.
This connector features a crimp termination type, ensuring secure connections.
The impedance of this connector is 50 Ω, which is standard for many RF applications.
This model has a right angle orientation, which is beneficial for tight PCB layouts and compact applications.
The contact material is brass, and it features gold plating over nickel for corrosion resistance and improved signal conduction.
No, this connector does not include a bulkhead mount; it is designed for cable mounting applications.
The contact gender of this connector is male, which is typical for SMB connectors.
This coaxial connector cable is manufactured in India.
It is suitable for industrial, telecommunications, laboratory testing, electronic assembly, and aerospace applications requiring stable RF connections.
The body of this connector is plated with gold, enhancing its reliability and conductivity.
