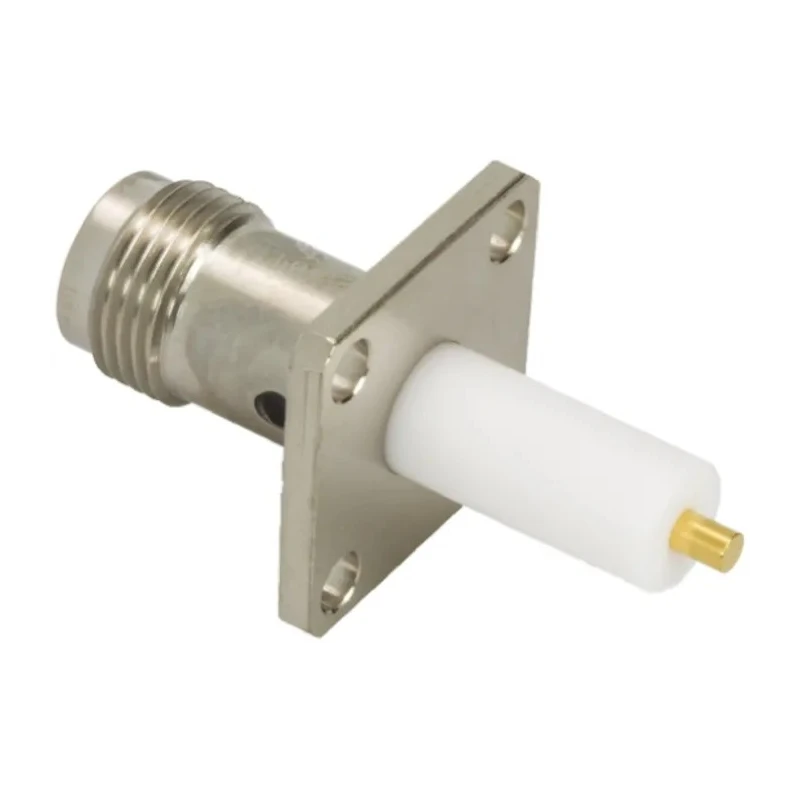

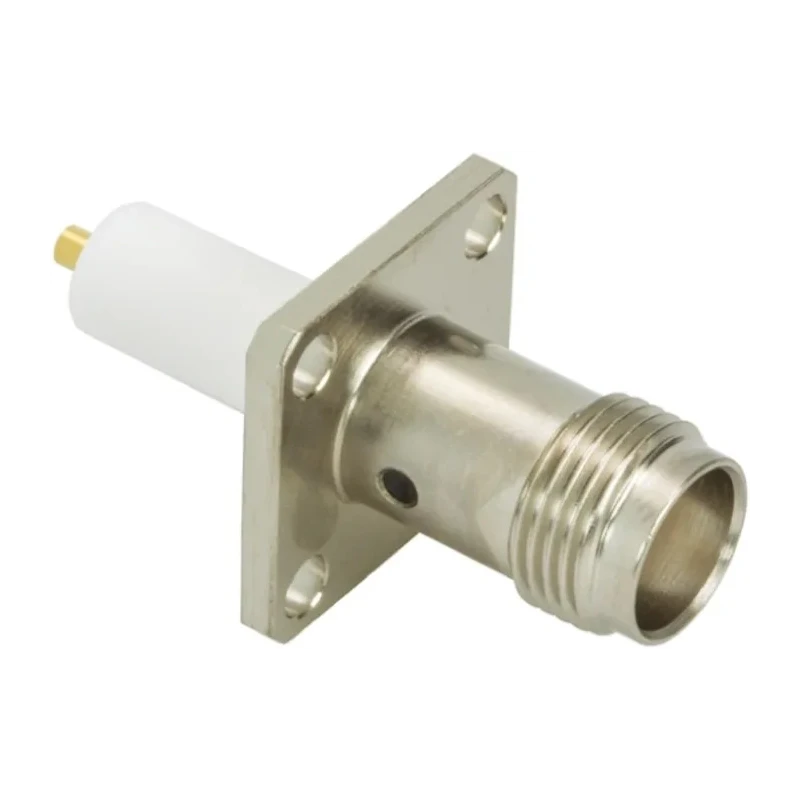

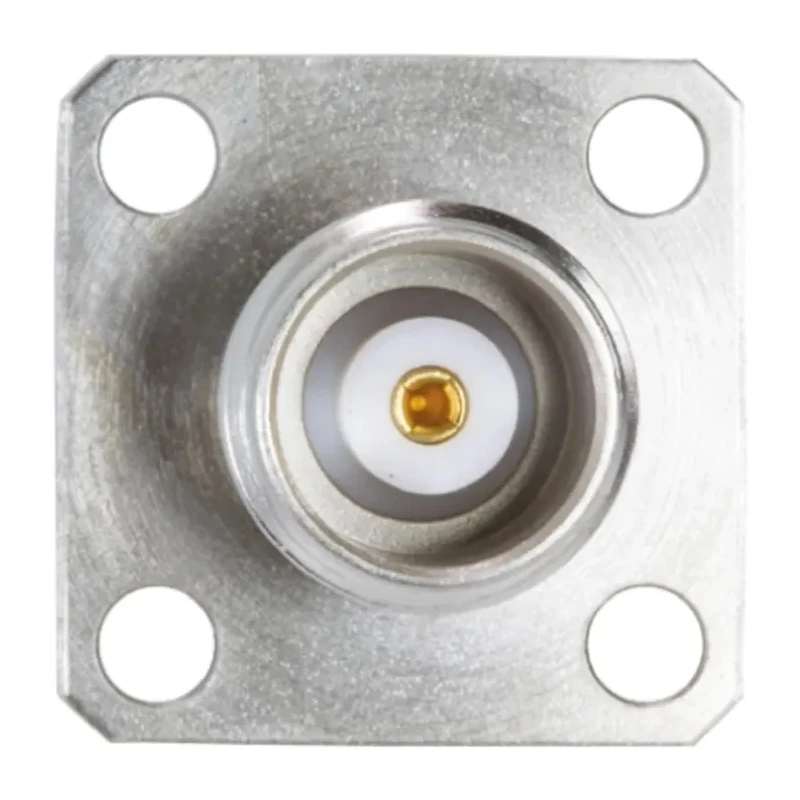

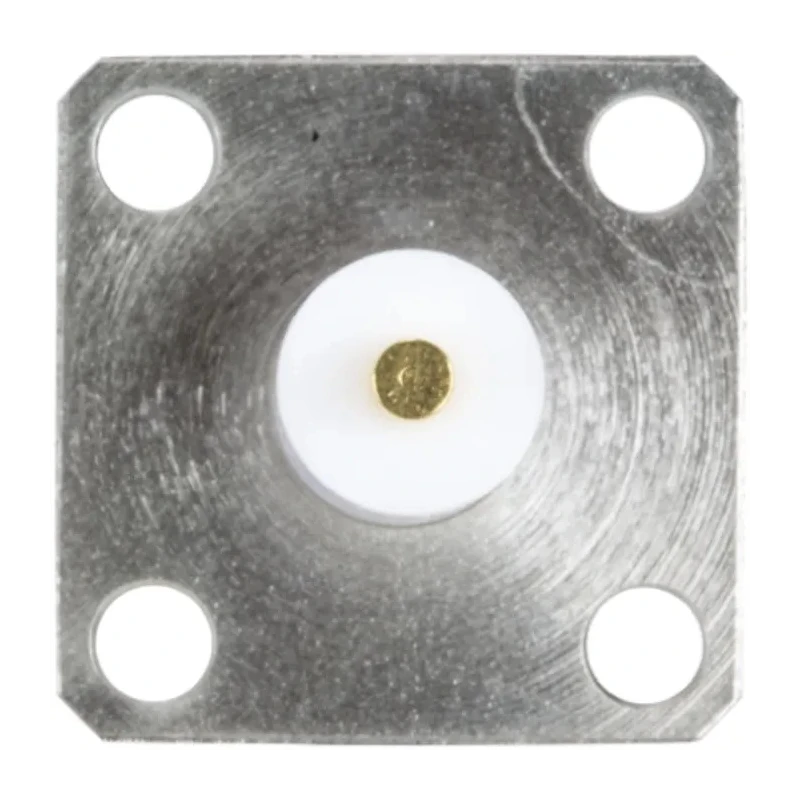

TE Connectivity TNC Series Coaxial Connector Panel Mount Female 50 Ω Straight Body Solder Termination 1057780-1
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Panel Mount |
| Operating Frequency | 11GHz |
| Contact Material | Beryllium Copper |
| Series | TNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Cable Type | Coaxial |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold over Copper |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | TNC |
| Body Plating | Nickel |
Key Features
- The connector offers a standard size with nickel-plated brass body for durability.
- It operates up to 11 GHz frequency supporting high-frequency applications.
- Designed for coaxial cables with solder termination type for secure connection.
- Operates reliably within -65°C to 165°C temperature range.
- The contact material is beryllium copper with gold plating for excellent conductivity and corrosion resistance.
- Offers normal polarity and features a panel mount design for easy installation.
- Flange mount TNC jack receptacle includes a PTFE dielectric for electrical insulation.
Product Description
TE Connectivity 1057780-1 TNC Series Coaxial Connector is a precision-engineered panel mount female connector designed for high-performance coaxial cable applications. Its 50 ohm impedance and straight nickel-plated brass body ensure optimal signal integrity and mechanical robustness.
This connector supports frequencies up to 11 GHz, making it suitable for advanced electronic, communication, and RF systems. It features a solder termination type, allowing secure and reliable cable attachment, essential in industrial and laboratory setups.
Operating efficiently between -65°C and 165°C, it withstands harsh environmental conditions common in manufacturing and networking installations. The contact gender is female, crafted from beryllium copper with gold over copper plating, ensuring excellent electrical conductivity and resistance to corrosion over time.
The connector’s panel mount design facilitates easy integration into equipment front panels or enclosures, providing stable mechanical and electrical connections in audio/video, RF, instrumentation, and telecommunications applications.
The connector features a standard-sized straight body with nickel plating for enhanced durability. It utilizes a PTFE dielectric for superior electrical insulation. Normal polarity design with a female contact gender ensures compatibility and performance.
Designed to operate at frequencies up to 11 GHz, supporting a wide range of RF applications. Nickel plating on the body offers corrosion resistance for long-term reliability. The gold-plated beryllium copper contact enhances electrical connection quality.
Solder termination ensures robust cable connectivity for industrial use.
This coaxial connector is ideal for industrial, laboratory, telecommunications, electronic manufacturing, and commercial applications requiring reliable RF connections with stable impedance and environmental resistance.
Explore the complete range of electronic components and Coaxial Connectors on EnvMart for seamless integration into your projects and systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports frequencies up to 11 GHz, making it suitable for high-frequency applications.
It operates efficiently within a temperature range of -65°C to 165°C.
This connector features a solder termination type, allowing for secure and reliable cable attachment.
The contact material is beryllium copper, which is plated with gold over copper for enhanced conductivity and corrosion resistance.
This connector has an impedance rating of 50Ω, making it suitable for various RF applications.
It features a panel mount design, facilitating easy integration into equipment front panels or enclosures.
The body is made of nickel-plated brass, which provides durability and corrosion resistance.
This model is a female connector, designed for compatibility with other male connectors in RF applications.
Yes, it features normal polarity, ensuring compatibility with standard connections.
It utilizes a PTFE dielectric, which provides superior electrical insulation.
The country of origin for this connector is India.
It is ideal for industrial, laboratory, telecommunications, electronic manufacturing, and commercial applications requiring reliable RF connections.
