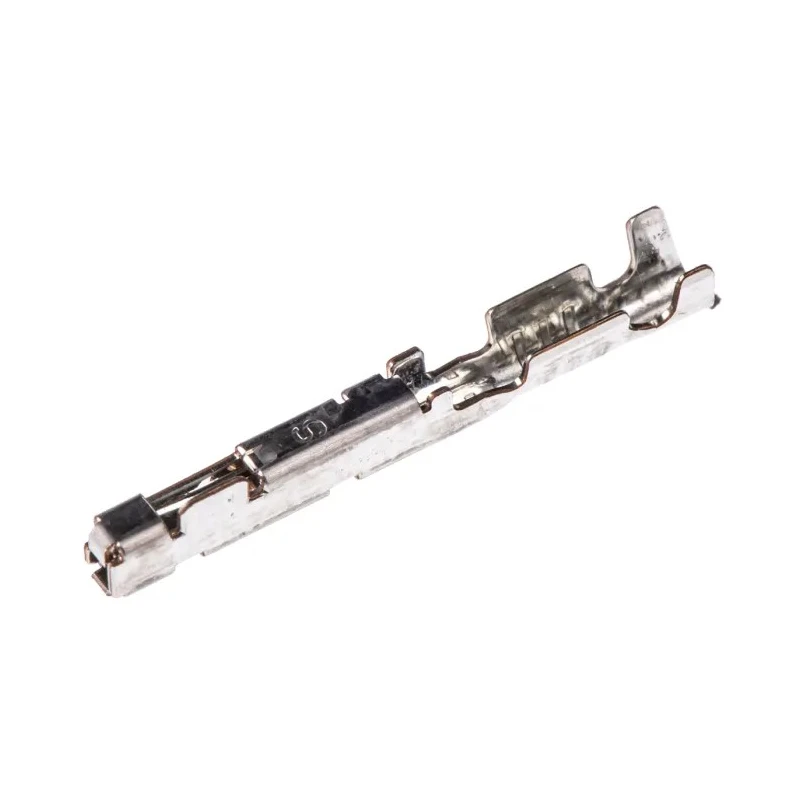

JAE MX34 Series Female Crimp Terminal, 24 AWG Min Crimp, 22 AWG Max MX34

JAE MX34 Series Female Crimp Terminal MX34 is engineered for high-performance automotive and electronics applications that demand reliable board-to-cable connections with wire sizes ranging from 24 AWG min to 22 AWG max. Constructed with a high conductive copper alloy and tin-plated contacts, this crimp terminal ensures excellent conductivity and corrosion resistance under harsh operating conditions.

The terminal supports a nominal current of 3 amperes and maintains a low maximum contact resistance of 5 milliohms, ensuring consistent electrical performance. It operates effectively in extreme temperature ranges from -40°C to 85°C, making it ideal for use in automotive systems and other demanding environments where durability and stability are critical.

The MX34 series connectors incorporate a double locking mechanism and a box-type pin header, providing robust mechanical retention and protecting contacts against twisting or external mechanical loads. A locking spring with a protective bridge enhances the terminal’s resistance to external forces, increasing longevity and reliability.

Designed for use with the MX34 connector housing and compatible MX34 crimp tools, this terminal provides efficient assembly and secure termination. Its compact, non-waterproof design is optimized for automotive applications requiring multiple pole counts up to 40, reducing mating and unmating forces for easier handling and installation.

Constructed from high conductive copper alloy for optimal electrical performance. Contact plating is tin to ensure corrosion resistance. Supports a maximum current of 3 amperes. Rated for operation from -40°C to 85°C for reliability in variable environments.

Designed for MX34 Connector Housing with a secure double locking mechanism. Maximum contact resistance of 5 milliohms provides stable connectivity. Termination is via crimping to ensure a strong mechanical and electrical joint.

Compact non-waterproof design suitable for automotive board-to-cable connections. Includes a locking spring with a protective bridge to guard against external mechanical stress. Compatible with MX34 crimp tool for efficient processing and assembly.

The MX34 Series Female Crimp Terminal is widely used in automotive, manufacturing, and industrial electronics where secure and reliable wire-to-board connections are essential. Engineers and technicians select this product for its proven mechanical and electrical performance and compatibility with MX34 series connectors and tooling.
