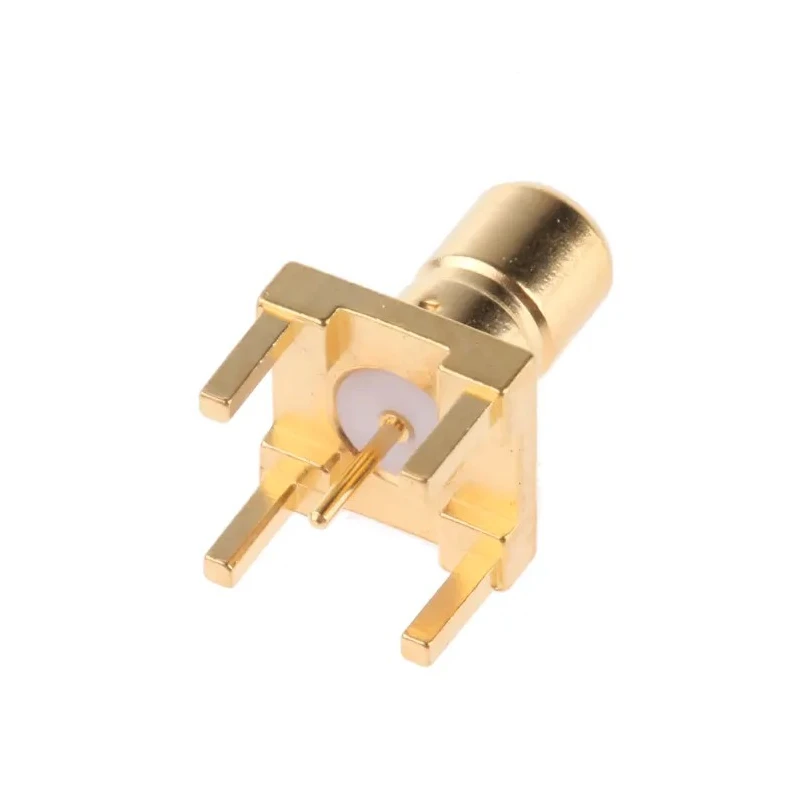

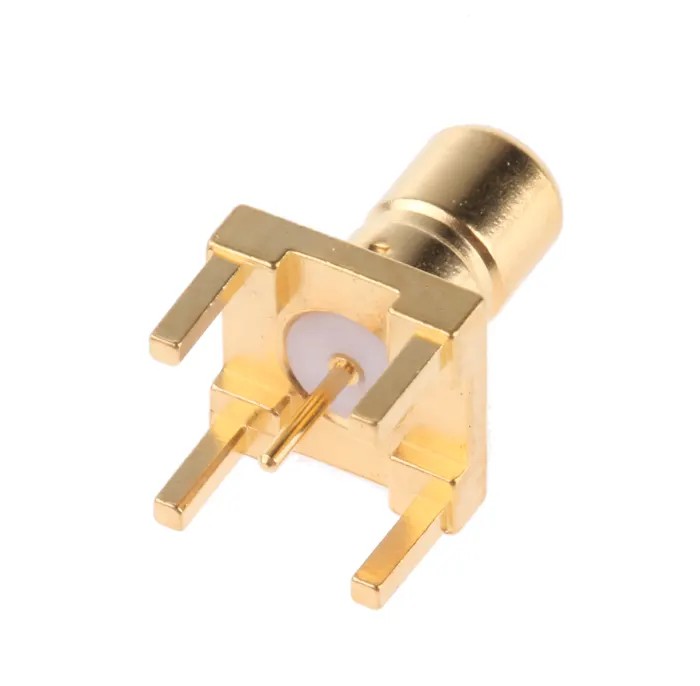

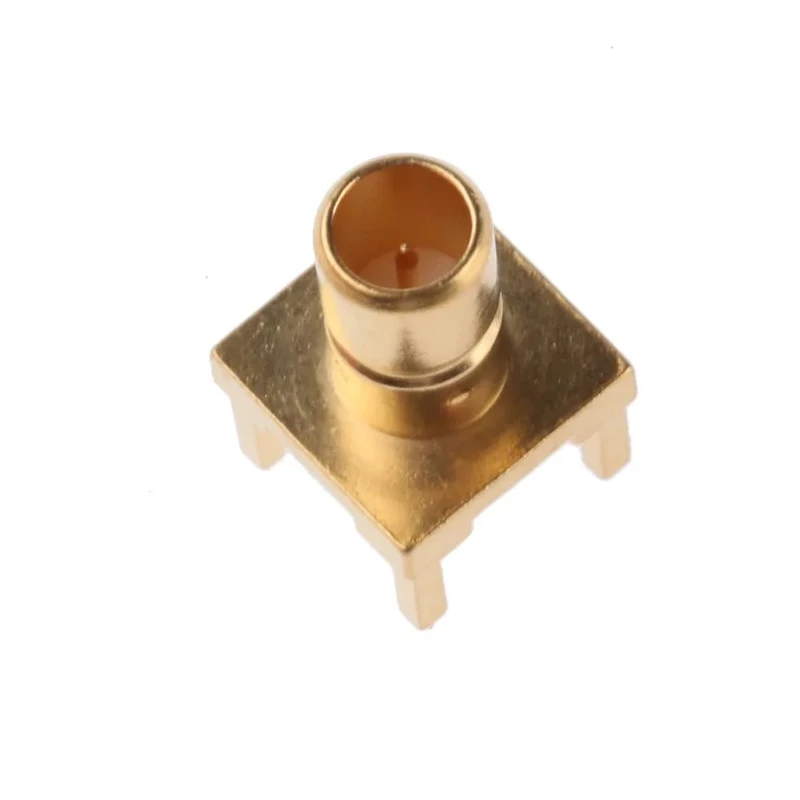

TE Connectivity SMB Series Coaxial Connector Through Hole Female SMB 75 Ω 4GHz Straight Body Solder 415504-4
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Model | 415504-4 |
| Mount Type | Through Hole |
| Operating Frequency | 4GHz |
| Contact Material | Brass |
| Series | SMB |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMB |
| Body Plating | Gold |
Key Features
- Designed for operating frequency up to 4GHz with 75 Ω impedance suitable for high-frequency applications.
- Constructed with brass contact and gold plating for reliable conductivity and corrosion resistance.
- Features a gold-plated body with solder termination type ensuring stable and durable connections.
- Supports operating temperature range from -65°C to 165°C suitable for varied industrial environments.
- Mount type is through hole for secure PCB integration in communication and broadband equipment.
- Featuring a normal polarity and female connector gender for standard mating interfaces.
- Standard size and straight orientation enhance ease of integration into electronic assemblies.
- Part of the SMB series, ensuring compatibility with SMB connectors and adapters.
Product Description
TE Connectivity 415504-4 SMB Series Coaxial Connector is a high-quality through hole female connector engineered for reliable electrical performance in communication, broadband, and switching equipment.
This cable connector has a standard 75 Ω impedance and is optimized for operating frequencies up to 4GHz, enabling efficient signal transmission in RF applications. The connector's body is gold-plated to prevent corrosion, and the internal contacts are brass with gold plating to maximize conductivity and durability. Its solder termination allows for secure and stable PCB mounting.
The connector operates safely across a wide temperature range of -65°C to 165°C, ensuring functionality in harsh industrial environments. It features a straight orientation and is designed with normal polarity, making it ideal for standard mating interfaces in electronic assemblies and test equipment.
Through hole mount style ensures robust mechanical fixation on printed circuit boards, facilitating ease of manufacturing and maintenance. The SMB series connectors, including this model 415504-4, facilitate miniaturization of circuits and enhance performance in compact devices.
Operating frequency up to 4GHz with 75 Ω impedance suitable for RF signal integrity. Gold plated brass contacts and body plating for superior corrosion resistance and electrical performance. Through hole mounting type ensures durable PCB integration.
Wide operating temperature range from -65°C to 165°C suitable for industrial and commercial applications. Solder termination type offers reliable mechanical and electrical connection. Standard size with straight body orientation assists in universal fitting.
Female connector gender and normal polarity comply with SMB standards.
This connector is widely used in industrial automation, communication devices, broadband infrastructure, and laboratory RF setups. It is designed to provide consistent signal transmission with minimal loss and is essential for designing compact, high-frequency electronic assemblies.
Explore the full range of TE Connectivity connectors available at EnvMart for enhanced design and engineering solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this coaxial connector is 4GHz, making it suitable for high-frequency applications.
This connector has a standard impedance of 75Ω, which is ideal for RF signal integrity.
It uses a solder termination type, ensuring a secure and stable connection for PCB mounting.
The connector operates safely within a temperature range from -65°C to 165°C, suitable for various industrial environments.
The connector features brass contacts and a gold-plated body, which enhance conductivity and corrosion resistance.
This model utilizes a through hole mount type, allowing for secure integration into printed circuit boards.
The connector has a straight orientation, facilitating ease of integration into electronic assemblies.
It features a female connector gender, designed for standard mating interfaces.
This connector is widely used in industrial automation, communication devices, broadband infrastructure, and laboratory RF setups.
The country of origin for this connector is India.
The contacts of this connector are gold-plated, which helps in preventing corrosion and ensuring reliable conductivity.
Yes, this connector is part of the SMB series, ensuring compatibility with other SMB connectors and adapters.
