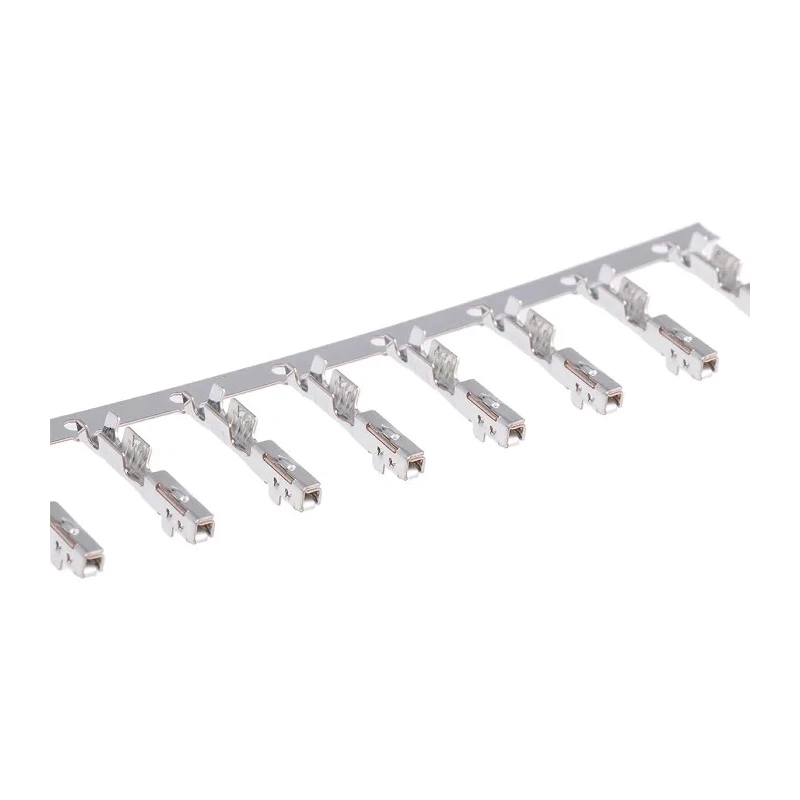

TE Connectivity MULTILOCK 040 III Series Female Crimp Terminal, Tin Plating, Copper Alloy, 19 AWG Min, 16 AWG Max 316838-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 - 105 °C |
| Length | 13.4mm |
| Model | 316838-1 |
| Gender | Female |
| Contact Material | Copper Alloy |
| Current Rating | 15A |
| Series | MULTILOCK 040 III |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | MULTILOCK 0.025/0.04 Hybrid I/O Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.85mm² |
| Maximum Wire Size mm² | 1.25mm² |
| Minimum Wire Size AWG | 19AWG |
| Maximum Wire Size AWG | 16AWG |
| Low level resistance | 10 mΩ max (initial) |
| Overall resistance | 20 mΩ max (final) |
Key Features
- Suitable for wire sizes from 19 AWG to 16 AWG ensuring versatility.
- Made with copper alloy and tin plating for excellent conductivity and corrosion resistance.
- Compact length of 13.4mm facilitates use in confined spaces.
- Designed to operate reliably within temperature ranges of -30°C to 105°C.
- Supports a current rating of 15A, suitable for moderate power applications.
- Ensures low resistance with initial contact resistance at maximum 10 milliohms.
- Termination by crimping provides a secure mechanical and electrical connection.
- Ideal for MULTILOCK 0.025/0.04 Hybrid input/output connector housings.
Product Description
TE Connectivity 316838-1 MULTILOCK 040 III Series Female Crimp Terminal is engineered to provide a solid mechanical and electrical connection for various cable applications in industrial, automotive, and automation sectors. Compatible with MULTILOCK 0.025/0.04 Hybrid I/O Connector Housing, this terminal supports wire sizes ranging from 19 AWG (0.85 mm²) up to 16 AWG (1.25 mm²).
Constructed from copper alloy and plated with tin, it ensures excellent conductivity and resistance to corrosion. The compact 13.4mm length makes it suitable for space-constrained assemblies. Designed to operate efficiently within temperatures from -30°C to 105°C, it is ideal for demanding environments.
This female crimp terminal offers a current rating of 15A and low contact resistance, vital for maintaining signal integrity and power efficiency. The crimp termination type offers a reliable and durable connection method compatible with snap-in connector cavities, allowing ease of installation and maintenance.
The MULTILOCK 040 III series is a miniature high-density connector system that offers wire-to-wire and wire-to-board I/O solutions, extensively used in automotive and other industrial applications where compact and high-efficiency connectors are required. This series supports snap-in, crimp contacts for cable receptacles and includes features to meet standards of reliability in harsh industrial environments.
Suitable for wire sizes from 19 AWG to 16 AWG. Manufactured from copper alloy with tin plating for durability and conductivity. Compact length aiding installations in limited space. Operating temperature range from -30°C to 105°C ensures environmental robustness.
Current rating of 15A meets moderate electrical load requirements. Low initial and overall contact resistance for efficient electrical performance. Crimp termination type for secure and durable connections. Designed for MULTILOCK hybrid I/O connector housings.
Snap-in fixing contact sockets for easy assembly.
These characteristics make it highly suitable for industrial automation, automotive wiring, construction of electronic devices, HVAC systems, and other electrical assembly applications. The product’s engineering focuses on reliability, compactness, and electrical efficiency to support modern industrial requirements.
Explore a wide range of reliable connectors and Crimp Contacts on EnvMart to enhance your electrical and electronics projects with trusted quality components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal operates efficiently within a temperature range of -30°C to 105°C.
It is suitable for wire sizes ranging from 19 AWG (0.85 mm²) to 16 AWG (1.25 mm²).
The current rating for this terminal is 15A, making it suitable for moderate power applications.
This terminal is made from copper alloy and features tin plating for enhanced conductivity and corrosion resistance.
The compact length of this crimp terminal is 13.4mm, which facilitates use in confined spaces.
The terminal utilizes a crimp termination type, providing a secure mechanical and electrical connection.
The initial contact resistance is a maximum of 10 milliohms, ensuring low resistance for efficient electrical performance.
It is designed for use with MULTILOCK 0.025/0.04 Hybrid I/O Connector Housing.
The overall resistance is a maximum of 20 milliohms, ensuring efficient electrical performance.
This terminal is suitable for applications in industrial automation, automotive wiring, and construction of electronic devices.
The country of origin for this crimp terminal is India.
This crimp terminal belongs to the MULTILOCK 040 III series, which is designed for high-density connector systems.
