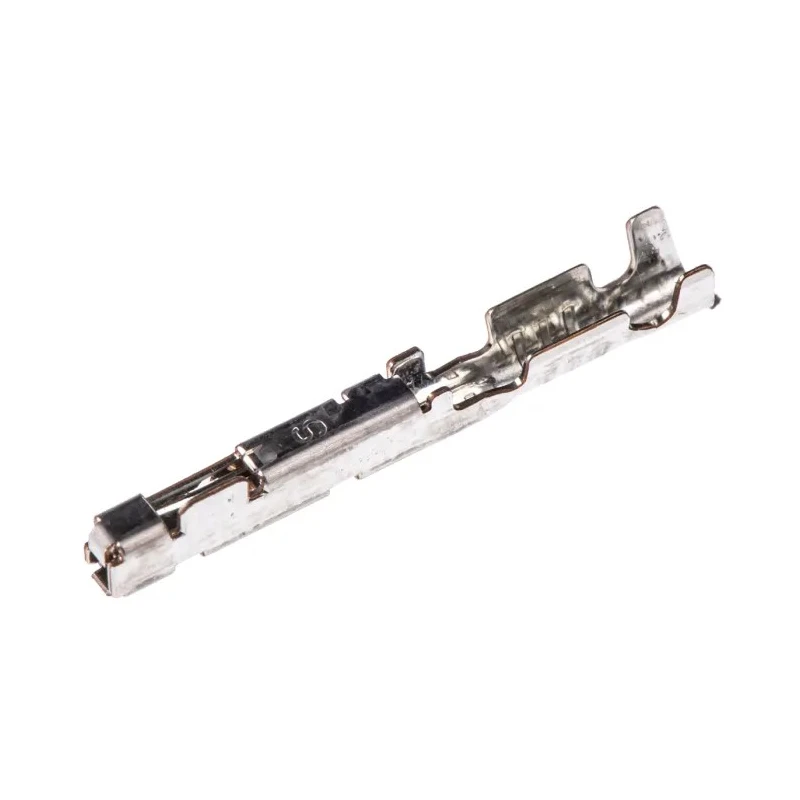

JAE MX34 Series Female Crimp Terminal for MX34 Connector Housing, 3A Current, 24 AWG Min to 22 AWG Max, Tin Plated

JAE M34S75C4F1 MX34 Series Female Crimp Terminal is engineered for automotive and industrial electronic connector applications, designed to mate with MX34 connector housings and support wire sizes from 24 AWG minimum to 22 AWG maximum. Built using a high conductive copper alloy and tin plating, this crimp terminal ensures excellent electrical performance while resisting corrosion.

Operating at currents up to 3A and capable of withstanding contact resistance as low as 5 milliohms, this terminal provides reliable connectivity. The crimp termination enables secure wire attachment, contributing to durable and stable connections within automotive wiring harnesses and other electronic assemblies.

The terminal is rated for use within a temperature range of -40°C to 85°C, making it suitable for demanding environmental conditions encountered in automotive and industrial settings. The MX34 series features a compact, non-waterproof design with up to 40 poles to minimize mating and unmating force to less than 80N, improving ease of assembly and maintenance.

The female crimp terminal incorporates a double locking mechanism that guarantees complete and secure contact insertion, preventing incomplete mating. Additionally, a lock spring bridge protects contacts from external loads, enhancing mechanical reliability.

Compatible MX34 socket housings come in 1-row or 2-row options, providing flexibility for various wiring configurations. This terminal is also compatible with MX34 specific crimp tools, ensuring precise and efficient crimping.

Constructed from high conductive copper alloy for reliable electrical conductivity. Features tin plating to prevent corrosion and enhance durability. Operates safely up to 3 amperes of current with a maximum contact resistance of 5 milliohms.

Crimp termination type ensures secure wire connections for automotive applications. Operates in a temperature range from -40°C to 85°C suitable for harsh environments. Compatible with MX34 socket housings available in 1-row or 2-row configurations.

Features a preset double locking mechanism for secure and complete contact insertion. Designed to reduce mating and unmating forces, improving workability and assembly efficiency. Ideal for automotive and industrial electronic connector applications.

JAE MX34 Series Female Crimp Terminals provide a reliable solution for automotive electronics wiring harness assembly, emphasizing performance, durability, and ease of use. Browse other automotive and electronic connector solutions on EnvMart for complete system integration.
