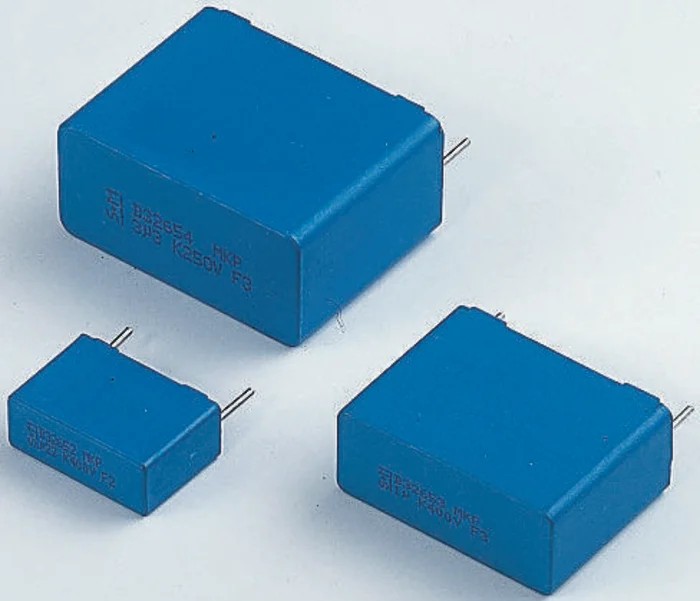

TDK Film Capacitor 680 nF Through Hole 160V AC 250V DC 2 Pin B32652A3684K000

Free Delivery in India | Lowest Global Shipping Charges

TDK Film Capacitor 680 nF Through Hole 160V AC 250V DC 2 Pin B32652A3684K000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	17.5mm
Length	18mm
Model	B32652A3684K000
Width	9mm
Mount Type	Through Hole
Series	B32652
Maximum Operating Temperature	100°C
Capacitance	680nF
Standards/Approvals	RoHS, UL
Pin Count	2
Rated AC Voltage	160V ac
Rated DC Voltage	250V dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200 Rev D

Key Features

This capacitor features a pin count of 2 for secure through-hole installation.
It operates reliably up to a maximum temperature of 100°C.
Constructed with wound capacitor technology encased in flame-retardant plastic with epoxy resin seal.
It has lead pitch of 15 mm and lead diameter of 0.8 mm to ensure compatibility with standard PCB layouts.
Provides high pulse strength and contact reliability, ideal for electronic ballast and TV circuit applications.
Complies with RoHS and UL standards and meets Automotive Standard AEC-Q200 Rev D.

Product Description

The TDK B32652A3684K000 Film Capacitor is a high-quality, reliable component designed for electronics applications requiring high pulse strength and durability. It features a 680 nF capacitance suitable for filtering and signal correction tasks in electronic ballasts, TV flyback, and S-correction circuits.

This capacitor operates at a rated AC voltage of 160V and can withstand up to 250V DC, making it versatile for various power circuits. Its through-hole mounting type with 2 pins and a lead pitch of 15 mm facilitates secure and easy PCB integration.

Constructed with wound capacitor technology and enclosed in a UL 94 V-0 flame-retardant plastic case with epoxy resin sealing, it offers enhanced safety and longevity. The component supports a maximum operating temperature of 100°C, ensuring stable performance under demanding conditions.

Dimensions of 18 mm length, 17.5 mm height, and 9 mm width, along with a lead diameter of 0.8 mm, make it compact and compatible with standard circuit boards. The capacitor adheres to RoHS and Underwriters Laboratories standards and aligns with automotive quality standards (AEC-Q200 Rev D), underlining its reliability and safety in automotive and industrial electronics.

This capacitor features a pin count of 2 for secure through-hole installation. It operates reliably up to a maximum temperature of 100°C. Constructed with wound capacitor technology encased in flame-retardant plastic with epoxy resin seal.

It has lead pitch of 15 mm and lead diameter of 0.8 mm to ensure compatibility with standard PCB layouts. Provides high pulse strength and contact reliability, ideal for electronic ballast and TV circuit applications. Dimensions are 18 mm length, 17.5 mm height, and 9 mm width for compact mounting.

Complies with RoHS and UL standards and meets Automotive Standard AEC-Q200 Rev D.

This product serves industrial, electronics manufacturing, automotive, and commercial electronic repair use cases. Choose the TDK B32652A3684K000 for efficient and safe circuit design.
