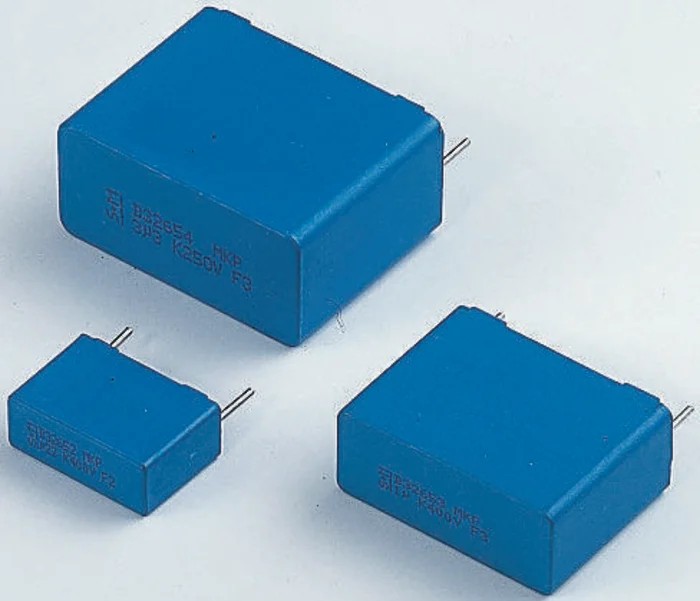

TDK Film Capacitor 4.7 nF 40V AC 63V DC Through Hole 2 Pin 5mm Lead Pitch B32529C0472J189

TDK B32529C0472J189 Film Capacitor with 4.7 nanofarad capacitance and rated for 40V AC and 63V DC operation is an essential passive component for electronic circuits requiring precise capacitance and high reliability.

This through-hole mounted capacitor features a 2-pin configuration with a 5mm lead pitch designed for robust PCB insertion and soldering.

Typical applications include general purpose blocking, coupling, decoupling, bypassing, and radio frequency interference (RFI) suppression, especially in automotive electronic systems due to its compliance with AEC-Q200 Rev D standards.

Manufactured with stacked-film technology, it boasts high pulse strength and excellent contact reliability, encased in a plastic case sealed with epoxy resin meeting UL 94 V-0 flame retardant standards.

The capacitor can operate at temperatures as high as 125°C, enhancing its suitability for demanding industrial, automotive, and electronic manufacturing environments. Capacitance value of 4.7 nanofarads is suitable for signal coupling and filtering applications.

Rated AC voltage of 40 volts and DC voltage of 63 volts ensures reliable operation under specified voltages. Through Hole design with 5mm lead pitch for easy PCB insertion and soldering. Plastic case with epoxy resin sealing offers UL 94 V-0 flame retardant compliance.

Meets automotive standards AEC-Q200 Rev D, suitable for automotive electronics. Maximum operating temperature is 125°C for high-temperature environments. Compact dimensions of 7.2mm length, 2.5mm width, and 6.5mm height.

2-pin configuration with 0.5mm lead diameter for secure connectivity. This capacitor is ideal for industrial, automotive, consumer electronics, power supplies, and laboratory applications requiring stable and reliable film capacitors.

Explore more Film Capacitors and electronic components in the catalog for various application needs.
