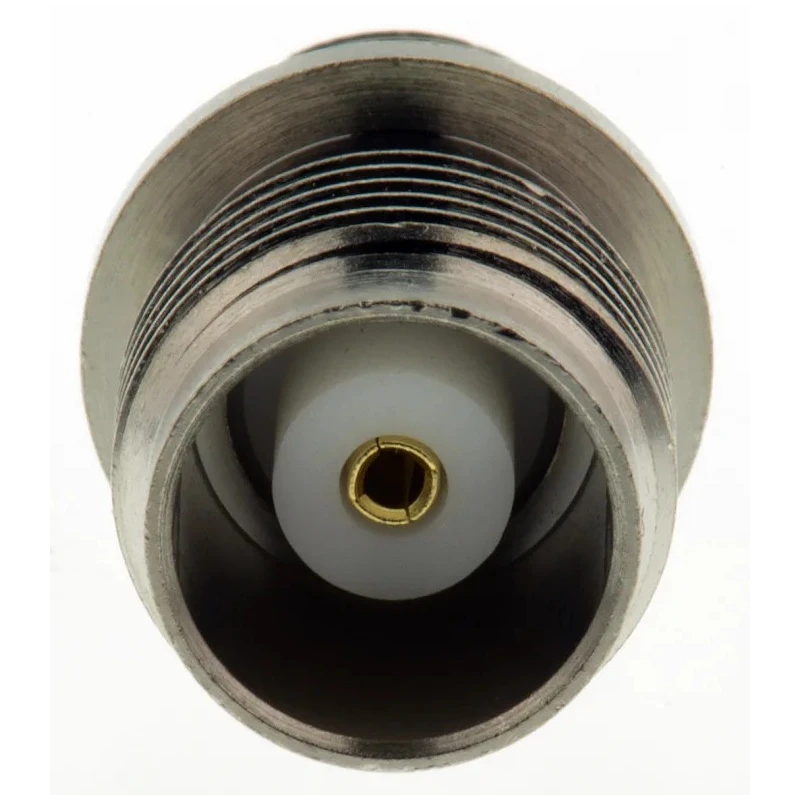

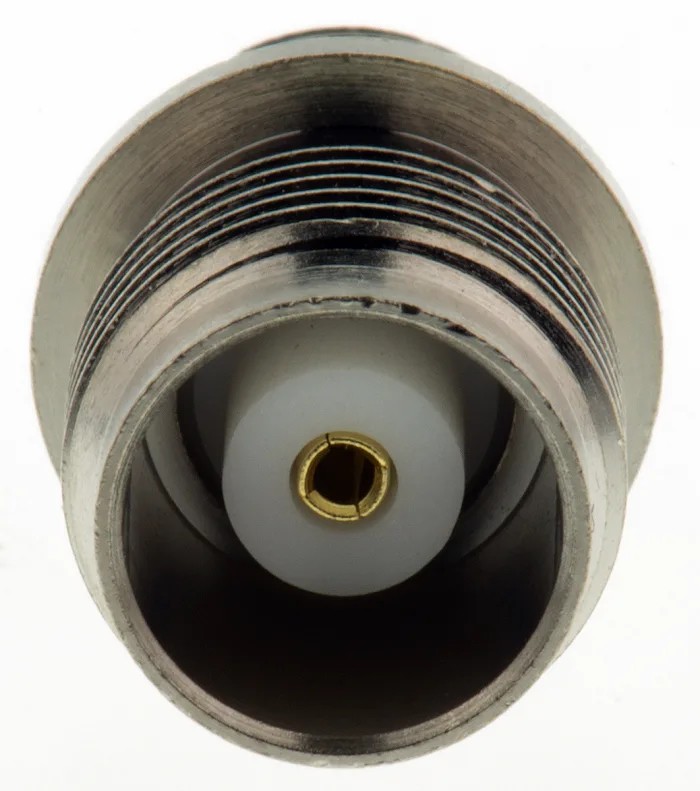

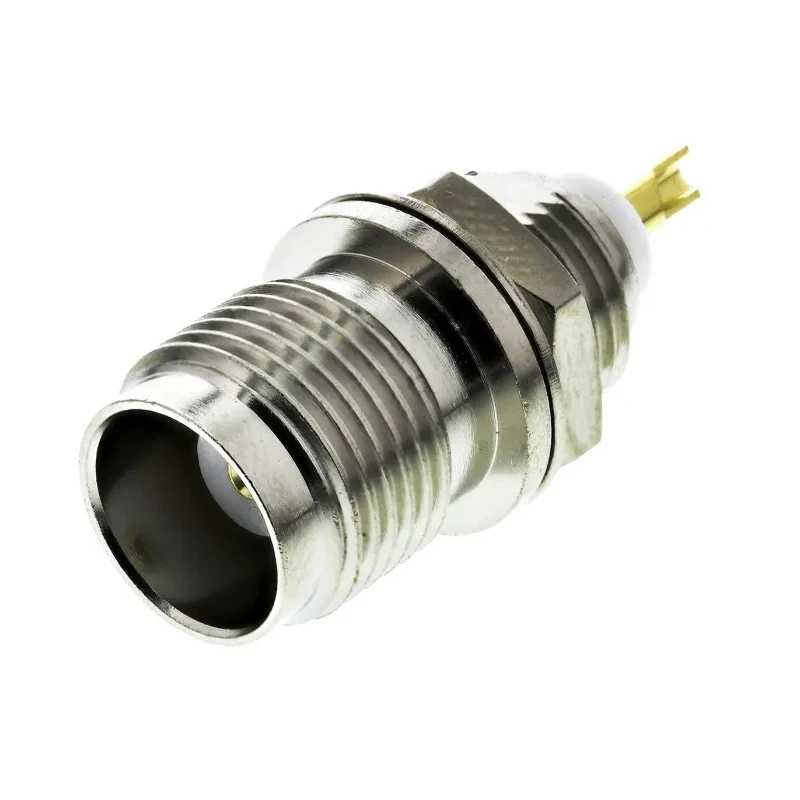

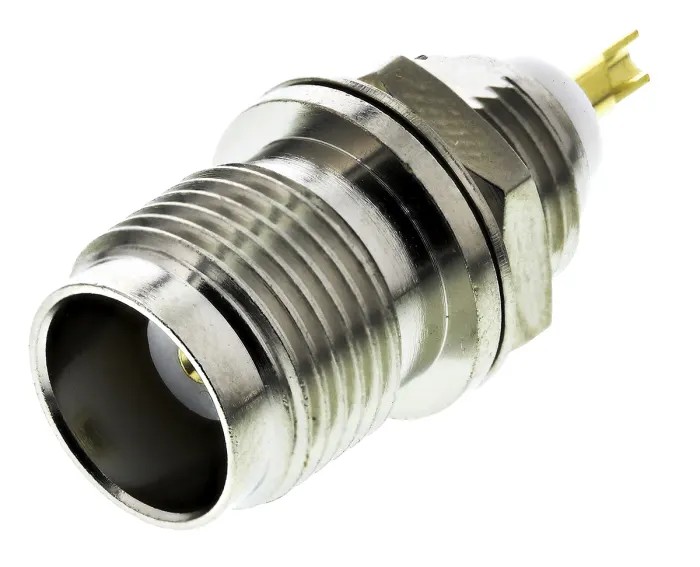

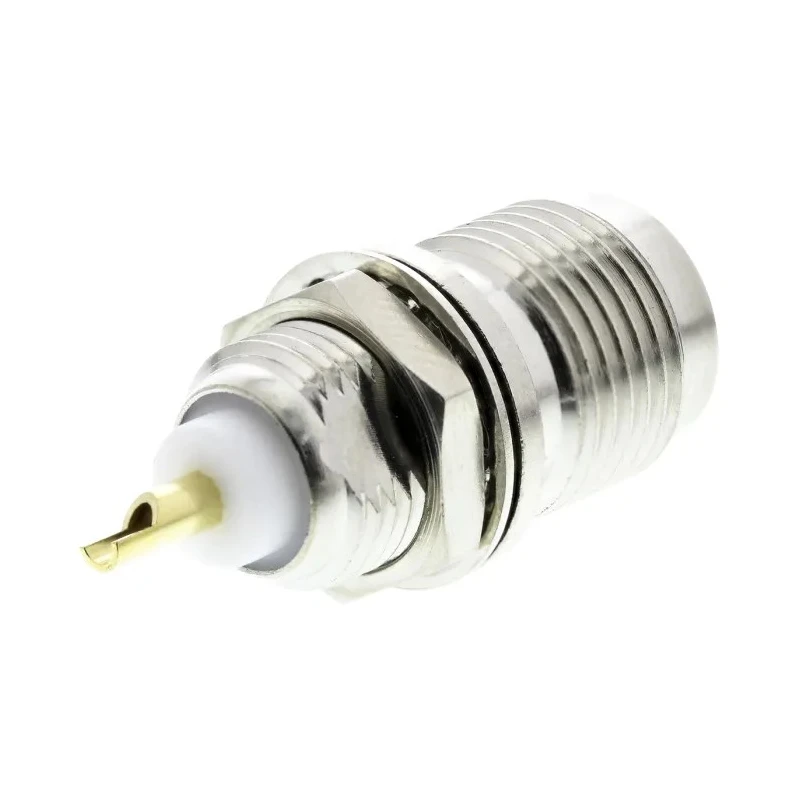

Telegartner TNC Series Coaxial Connector Panel Mount Female TNC, 50 Ω, Straight Body Solder J01011H2615

Free Delivery in India | Lowest Global Shipping Charges

Telegartner TNC Series Coaxial Connector Panel Mount Female TNC, 50 Ω, Straight Body Solder J01011H2615

Name: Telegartner TNC Series Coaxial Connector Panel Mount Female TNC, 50 Ω, Straight Body Solder J01011H2615
Brand: Telegartner
SKU: 218786
Price: 18.24 USD
Availability: InStock



Category Coaxial Connector Brand Telegartner Condition New

Specifications

Country of Origin	Taiwan
Size	Standard
Brand	Telegartner
Orientation	Straight
Model	J01011H2615
Mount Type	Panel Mount
Operating Frequency	11GHz
Contact Material	Beryllium Copper Phosphor Bronze
Series	TNC
Termination Type	Solder
Maximum Operating Temperature	155°C
Minimum Operating Temperature	0°C
Polarity	Normal
Impedance	50Ω
Contact Plating	Copper Nickel Gold Alloy
Contact Gender	Female
Connector Gender	Female
Coaxial Connector Type	TNC
Body Plating	Nickel
binder, jack Panel Mount, 50Ω, Crimp Termination, Straight BodyBrand	Telegartner
TNCCRIMP B'KH'D JK RG174Brand	NEUTRAL

Key Features

This coaxial connector supports an operating frequency up to 11 GHz.
The body plating is nickel for enhanced durability and corrosion resistance.
Contacts are made of beryllium copper phosphor bronze with copper nickel gold alloy plating.
It features solder type termination and is designed for panel mount installation.
Operates within a temperature range of 0°C to 155°C.
The connector is a TNC series with normal polarity and standard size, including bulkhead mounting capability.

Product Description

Telegartner J01011H2615 is a high-quality TNC Series coaxial connector designed for panel mount applications. It is a female TNC type with a 50 Ω impedance, suitable for high-frequency RF connections up to 11 GHz. The connector features a straight body profile with nickel plating for robust protection against wear and corrosion.

The contacts use beryllium copper phosphor bronze material, plated with a copper nickel gold alloy to ensure excellent conductivity and reliable signal transmission. This connector is terminated by soldering, providing a stable and durable connection ideal for industrial and electronic equipment.

Engineered to perform reliably within a wide temperature range from 0°C to 155°C, it supports normal polarity and includes a bulkhead mounting option for secure panel installation. Its standard size makes it compatible with various applications requiring precise RF connections.

This coaxial connector is widely used in sectors such as industrial electronics, telecommunications, test and measurement instruments, and laboratory equipment. Its rugged construction and high-frequency handling capabilities make it suitable for demanding commercial and industrial environments.

This Coaxial Connector supports an operating frequency up to 11 GHz. The body plating is nickel for enhanced durability and corrosion resistance. Contacts are made of beryllium copper phosphor bronze with copper nickel gold alloy plating.

It features solder type termination and is designed for panel mount installation. Operates within a temperature range of 0°C to 155°C. The connector is a TNC series with normal polarity and standard size, including bulkhead mounting capability.

Telegartner is a recognized brand in electronic components known for precision engineering and quality assurance. This product offers a reliable solution for RF connections requiring performance and durability. Explore Telegartner and related connectors here at EnvMart for professional-grade electronic component needs.
