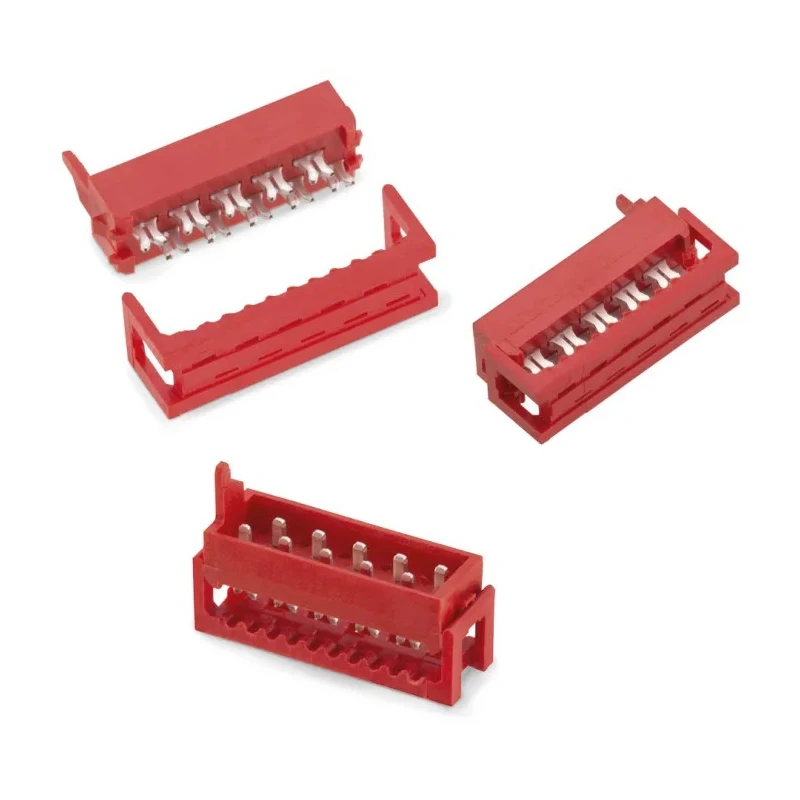

Wurth Elektronik 16-Way IDC Connector Male for Cable, 2 Row 690157001672
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V ac |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | WR-MM |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shrouded/Unshrouded | Shrouded |
Key Features
- Supports a current of 1 ampere at 500V AC voltage rating.
- Features a shrouded, straight orientation male connector design suitable for cable mounting.
- Contact plating is tin over nickel on phosphor bronze contacts for durability and conductivity.
- Operates within a temperature range of -40°C to 105°C ensuring performance under harsh environments.
- Housing is made from durable polybutylene terephthalate ensuring robust mechanical protection of contacts.
- The termination style is IDC, designed for insulation displacement connection technology.
- Series WR-MM ensures compatibility with WR-MM range connectors and accessories.
- Contact plating and materials meet high-quality standards but no formal certifications are specified.
Product Description
Wurth Elektronik 690157001672 is a 16-way IDC Connector designed for male cable connections in two rows, providing a pitch of 2.54mm and robust performance in electronic assemblies.
This connector supports 1 amp current with a voltage rating of 500V AC and functions reliably across a temperature span from -40°C to 105°C, making it suitable for demanding industrial environments.
The contacts are crafted from phosphor bronze with tin over nickel plating, ensuring excellent conductivity and corrosion resistance. The housing utilizes polybutylene terephthalate, a material known for its durability and resistance to mechanical stress.
The IDC termination design facilitates efficient insulation displacement connection, allowing quick and secure wire attachment without soldering.
It features a shrouded, straight orientation male connector suitable for cable mounting applications, falling under the WR-MM series, which is well-regarded for its compatibility and performance.
Handling and maintenance notes include strict adherence to soldering profiles as per Wurth Elektronik technical specifications to maintain warranty validity. The connector is not designed for washing and exposure to cleaning agents could damage its function and materials.
This connector is widely used in industrial electronics, telecommunications, and manufacturing applications where reliable wire harness connections are essential. Supports 16 contact points arranged in two rows with 2.54mm pitch.
Rated for 1A current and 500V AC voltage. Phosphor bronze contacts plated with tin over nickel. Polybutylene terephthalate housing for strength and durability. Temperature operating range from -40°C to 105°C. Termination type is insulation displacement contact (IDC) for ease of wiring.
Shrouded male connector suitable for cable mounting. Compliance with WR-MM series standards ensures compatibility. Maintenance requires adherence to specified soldering profiles; unsuitable for washing. Explore more IDC Connectors and reliable electronic components at EnvMart for enhanced electronics manufacturing and design solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This IDC connector supports a current of 1 ampere.
The voltage rating for this connector is 500V AC.
The contacts are made from phosphor bronze with tin over nickel plating, while the housing is constructed from polybutylene terephthalate.
It operates within a temperature range of -40°C to 105°C.
This connector features 16 contacts arranged in two rows.
It uses insulation displacement contact (IDC) termination for efficient wiring.
Yes, it is designed for cable mounting applications with a shrouded, straight orientation.
The pitch of the contacts is 2.54mm.
Yes, it complies with the WR-MM series standards, ensuring compatibility with other WR-MM connectors and accessories.
Maintenance requires strict adherence to specified soldering profiles, and it is not designed for washing or exposure to cleaning agents.
It is widely used in industrial electronics, telecommunications, and manufacturing applications where reliable wire harness connections are essential.
The country of origin for this connector is India.
