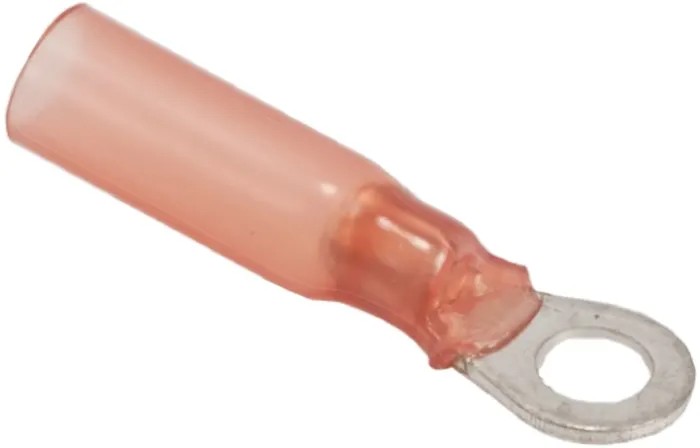

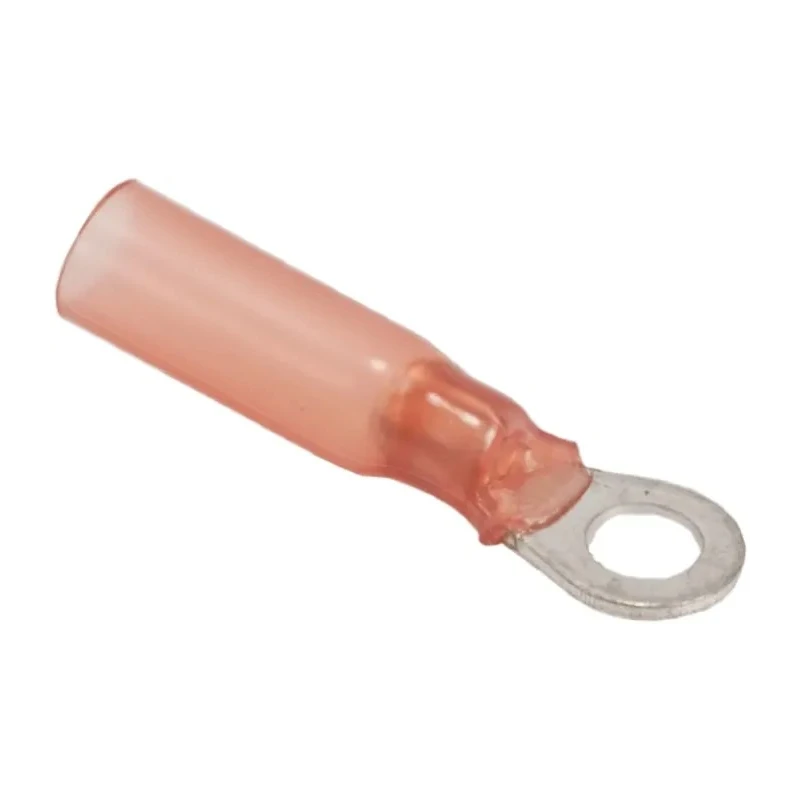

TE Connectivity TERMINYL Insulated Ring Terminal M8 Stud Size, 8 AWG Wire Size, Nylon Insulation, Red 324044

TE Connectivity 324044 TERMINYL Insulated Ring Terminal designed for reliable electrical connections in demanding industrial environments. The ring terminal is suitable for 8 AWG wire sizes and features an M8 stud size, ensuring secure fitment for power and signal wiring.

The terminal comprises high-grade copper contact material per ASTM B-152 and is tin plated in accordance with ASTM B-545, providing excellent corrosion resistance and electrical conductivity. The color-coded red nylon insulation aids quick identification and provides dielectric strength, reducing the risk of short circuits and electrical faults.

Designed specifically to withstand harsh operating conditions, these terminals tolerate high temperatures up to 105°C and endure vibrations and mechanical shocks often encountered in industrial, manufacturing, and automotive applications.

Key physical dimensions include an outer ring diameter of 14.91mm, an inner ring diameter of 8.33mm, overall length of 39.17mm, and thickness of 0.79mm. This precision sizing ensures compatibility with standard M8 studs and consistent performance.

The terminal meets RoHS directives, ensuring environmentally responsible manufacturing, and complies with military specification MIL-T-7928 Type II Class 2 for robust industrial use.

Constructed with high conductivity copper and tin plating for enhanced durability. Features nylon moulded insulation providing excellent dielectric strength. Designed to withstand extreme vibration, shock, and operating temperatures up to 105°C.

Compatible with wire sizes ranging from 8 AWG (6.6mm²) to 10.5mm² maximum. Overall length of 39.17mm and thickness of 0.79mm ensure robust mechanical performance. Colour-coded red for easy identification in wiring applications.

Manufactured to meet RoHS compliance and MIL-T-7928 standards.

This TE Connectivity Ring Terminal is ideal for industrial, electronic, electrical power distribution, automotive wiring, and manufacturing applications where reliable, long-term wire termination is essential. Its combination of durable materials, precision sizing, and compliance with industry standards makes it well-suited for critical electrical connections.
