Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter SOP to DIP W9502RC

Free Delivery in India | Lowest Global Shipping Charges

Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter SOP to DIP W9502RC

Name: Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter SOP to DIP W9502RC
Brand: Winslow
SKU: 147882



Category IC Socket Adapter Brand Winslow Condition New

Specifications

Country of Origin	United Kingdom
Brand	Winslow
Orientation	Straight
Model	W9502RC
Mount Type	Through Hole
Housing Material	FR4
Contact Material	Brass
Pitch	2.54mm
Contact Plating	Gold over Nickel
Connection Gender A	Female
Number of Contacts A	14
Connection Gender B	Male
PCB	Epoxy Fibreglass FR4
Connection A	SOP
Connection B	DIP
CIF 1.27 mm, 2.54 mm Pitch IC Socket AdapterBrand	CIF

Key Features

This adapter accommodates 14 female SOP contacts to 14 male DIP contacts.
Contact plating is gold over nickel to ensure reliable conductivity and corrosion resistance.
The housing is made from FR4 epoxy fibreglass, providing durability and insulation.
The mount type is through hole with a straight orientation to suit PCB mounting requirements.
Contact material is brass, ensuring good electrical and mechanical properties.
This product is made in the United Kingdom and designed to avoid PCB redesign costs by converting package styles.
It is suitable for various electronics applications requiring IC package adaptability.

Product Description

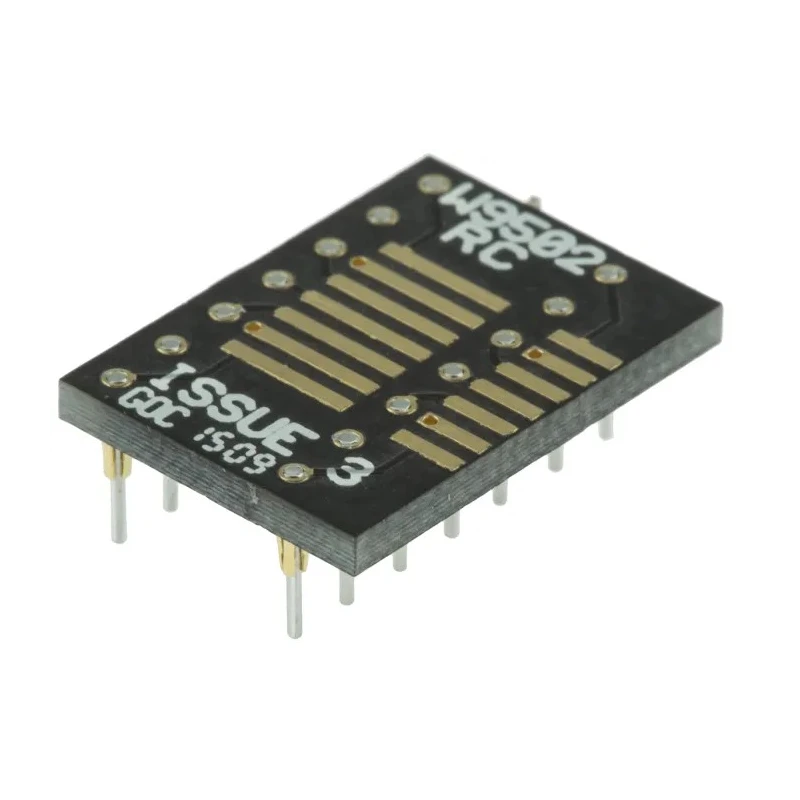

Winslow W9502RC is an IC Socket Adapter designed to convert Small Outline Package (SOP) ICs to Dual In Line Package (DIP) format with a pitch of 2.54 mm. It features a straight through hole mount suitable for secure PCB installation.

The adapter has 14 female connections on the SOP side and 14 male DIP connections, with contacts plated in gold over nickel and made from brass for optimal electrical performance and durability.

The housing material is FR4 epoxy fibreglass, providing robust insulation and mechanical stability for reliable use in industrial, electronics manufacturing, and prototyping environments.

The through hole mount type with a straight orientation ensures easy integration into standard PCB layouts, facilitating quick adaptation between IC package types and reducing development costs by avoiding PCB redesigns.

Manufactured in the United Kingdom, this adapter is ideal for applications in electronics development, testing, and repair where package flexibility is needed. This adapter converts SOP ICs to DIP format with 14 contacts on each side.

Gold over nickel contact plating ensures high conductivity and corrosion resistance. Brass contact material offers electrical stability and mechanical strength. FR4 epoxy fibreglass housing provides insulation and durability.

Through hole, straight mount type suitable for PCB mounting. Facilitates cost reduction by enabling package conversion without PCB redesign. Made in the United Kingdom with high-quality manufacturing standards. This IC socket adapter is listed under the IC Socket Adapter category at EnvMart, supporting electronics manufacturers and engineers in their packaging requirements.
