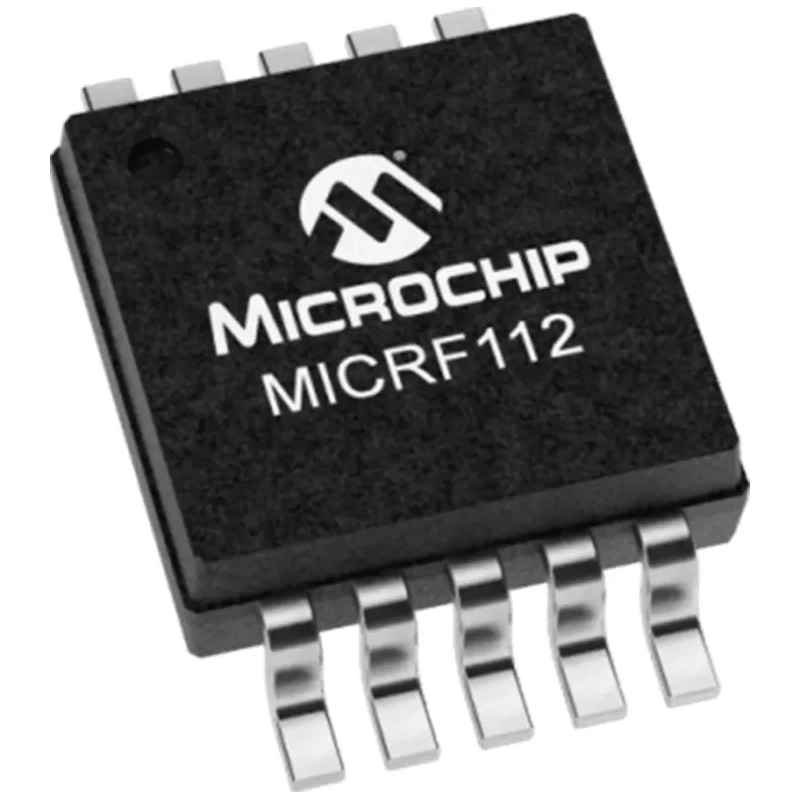

Microchip High Performance Single Chip ASK FSK RF Transmitter 10-Pin MSOP 450MHz MICRF112YMM

Free Delivery in India | Lowest Global Shipping Charges

Microchip High Performance Single Chip ASK FSK RF Transmitter 10-Pin MSOP 450MHz MICRF112YMM

Name: Microchip High Performance Single Chip ASK FSK RF Transmitter 10-Pin MSOP 450MHz MICRF112YMM
Brand: Microchip
SKU: 153354



Category RF ICs Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	0.92mm
Length	3mm
Model	MICRF112YMM
Width	3mm
Mount Type	Surface
Series	MICRF112
Maximum Operating Temperature	125°C
Package Type	MSOP
Sub Type	RF Transmitter
Minimum Operating Temperature	-40°C
Pin Count	10
Automotive Standard	AEC-Q100
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	1.8V
Modulation Technique	FSK, ASK
Operating Band 1 Frequency	450MHz
Number of Operating Bands	1
Small form factor	10-pin MSOP (3 x 4.9 mm) and 10-pin Ultra-Thin DFN (2 x 2 x 0.4 mm)

Key Features

This RF transmitter supports data rates of up to 1 kbps with FSK and ASK modulation techniques.
Features a compact 10-pin MSOP package with 3 mm length and width, and 0.92 mm height.
Operates within a supply voltage range of 1.8 V to 3.6 V suitable for low power consumption applications.
Operating temperature range spans from -40°C to 125°C, supporting automotive AEC-Q100 standards.
Delivers an output power of up to +10 dBm to a 50Ω load for reliable wireless communication.
Covers the frequency band of 300 to 450 MHz with low external part count for simplified design.
Supports surface mount technology for easy PCB integration.
Low standby current enhances battery life in portable devices.

Product Description

Microchip MICRF112YMM is a high performance, single chip ASK and FSK RF transmitter IC housed in a 10-pin MSOP package measuring 3 mm by 3 mm by 0.92 mm. It is engineered specifically for remote wireless applications within the 300 to 450 MHz frequency band, making it ideal for industrial, commercial, and automotive communication systems.

The device operates with supply voltages ranging from 1.8 V to 3.6 V, catering to low power and battery-operated systems. It supports data rates up to 1 kbps and modulation techniques including frequency-shift keying (FSK) and amplitude-shift keying (ASK), delivering robust and efficient wireless transmission.

MICRF112YMM complies with the AEC-Q100 automotive standard, ensuring reliability and durability for harsh environmental conditions with an operating temperature range from -40°C to 125°C. With a maximum output power of +10 dBm into a 50Ω load, this transmitter achieves strong signal performance for improved range and integrity.

The small form factor 10-pin MSOP package enables compact PCB layout and surface mount assembly, reducing space and manufacturing costs. Its low external part count simplifies design complexity, enhancing integration speed for engineering teams.

This RF transmitter is well suited for applications such as industrial remote controls, wireless security systems, HVAC controls, sensor networks, and other wireless communication systems requiring efficient data transmission in the UHF band.

This product supports frequency band operation from 300 to 450 MHz. Modulation techniques of FSK and ASK enable flexibility in data communication. Low power consumption makes it suitable for portable and battery-powered devices.

Automotive standard compliance (AEC-Q100) ensures quality and reliability. Compact 10-pin MSOP package allows space-saving designs. Applications include industrial, automotive, IoT, and remote control systems.

Choose Microchip MICRF112YMM for dependable RF transmission solutions in demanding industrial and automotive environments. Browse our Semiconductor and RF IC categories at EnvMart for a comprehensive selection of communication components.
