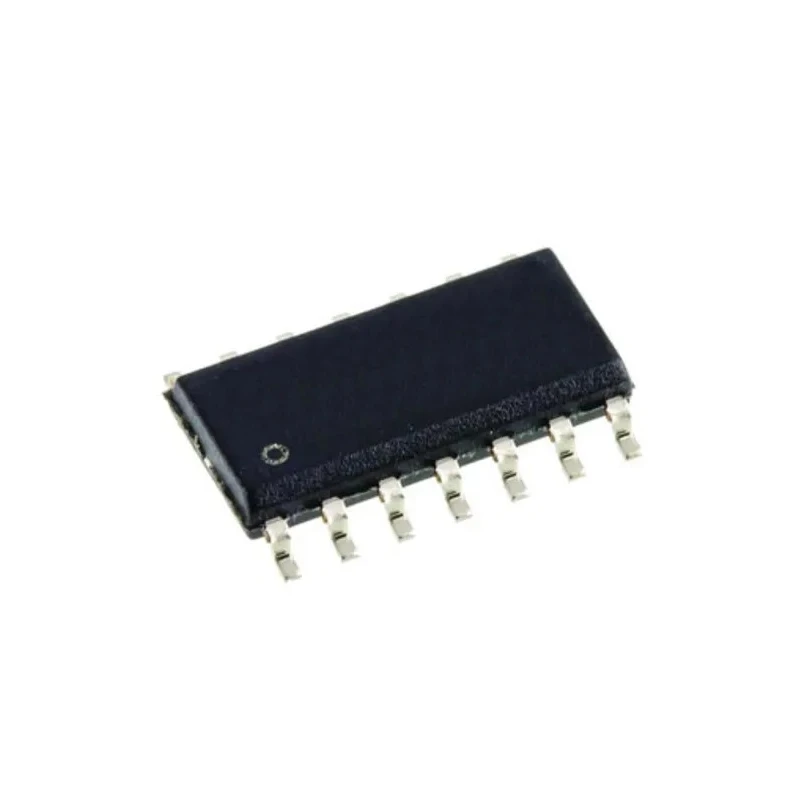

Infineon High-Side Power Switch IC, 2 Outputs, 4.2A, 58V, DSO-14, BTS723GWXUMA1

The Infineon BTS723GWXUMA1 is a high-side power switch integrated circuit engineered for demanding automotive and industrial applications. This IC is designed to offer robust performance, precise load control, and enduring reliability in environments where electronic circuit protection and compact integration are critical.

Equipped with two independently driven high-side output channels, the BTS723GWXUMA1 efficiently manages the switching of automotive loads such as lighting, signalling, and solenoid actuators. Its 7V to 58V supply voltage range ensures compatibility with most common vehicular and industrial power systems. Each output can manage continuous currents up to 4.2A, making it suitable for a broad array of moderate-load applications.

The device features a low switch-on resistance (Rds(on)) of 210mΩ, which contributes to optimal efficiency by minimizing conduction losses during state transitions. Its dual-channel configuration is paired with a dual-input arrangement, allowing for independently controlled load switching. The high operating temperature tolerance, ranging from -40°C to 150°C, ensures consistent operation even in extreme under-bonnet or outdoor environments, sustaining reliable performance over extensive temperature cycles.

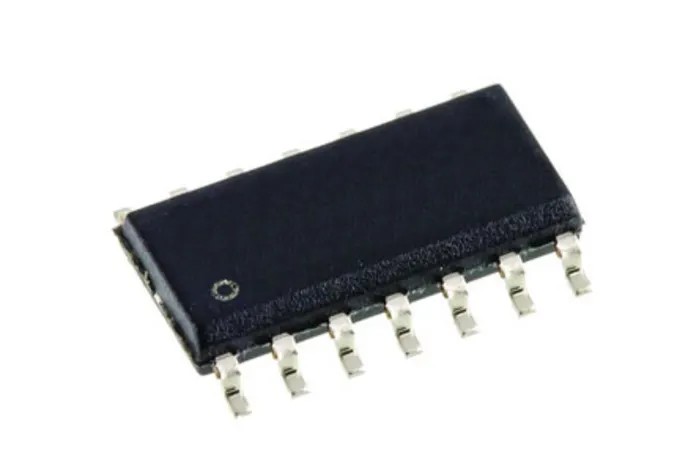

Packaged in a space-saving DSO-14 surface-mount case, the BTS723GWXUMA1 is well-suited for modern, automated PCB manufacturing processes and supports direct integration into compact electronic control units within vehicles or industrial control panels.

Its robust design safeguards against overcurrent and harsh operational conditions, contributing to the reliability of the end system in which it is deployed.

Industrial and automotive engineers benefit from the flexibility, precise control, and high integration that the BTS723GWXUMA1 Power Switch IC brings. Whether controlling body-control modules, lighting arrays, or dual-channel electronic actuators, this Infineon product ensures consistent, efficient switching with integrated protection mechanisms, all within a compact, surface-mount package.
