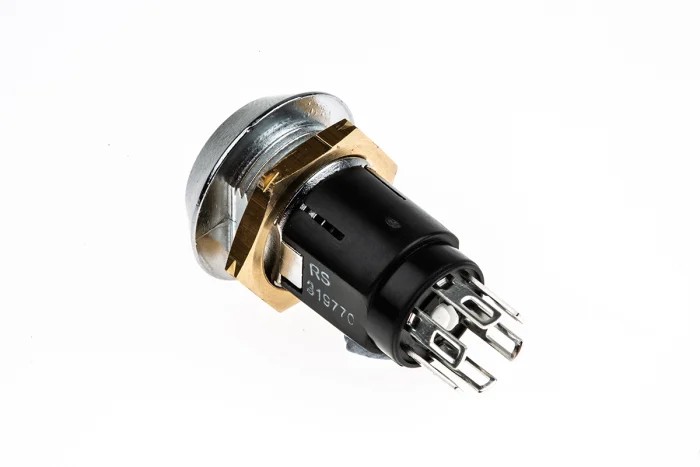

Lorlin Key Switch DPCO 1A 24V dc 240V ac 2-Position 2-Way Common Key Tapered Bezel SRL5MS2850

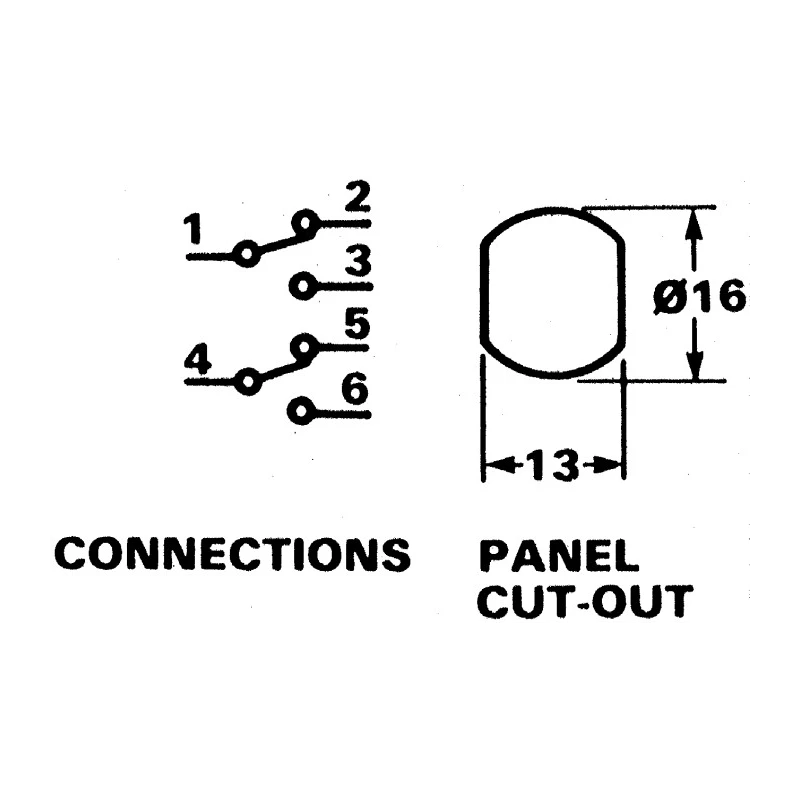

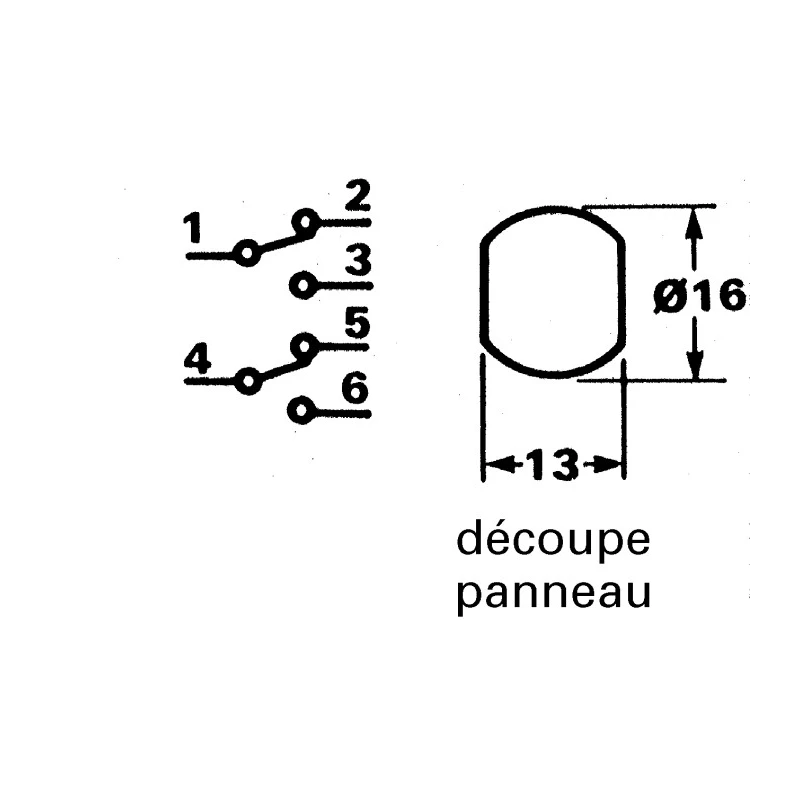

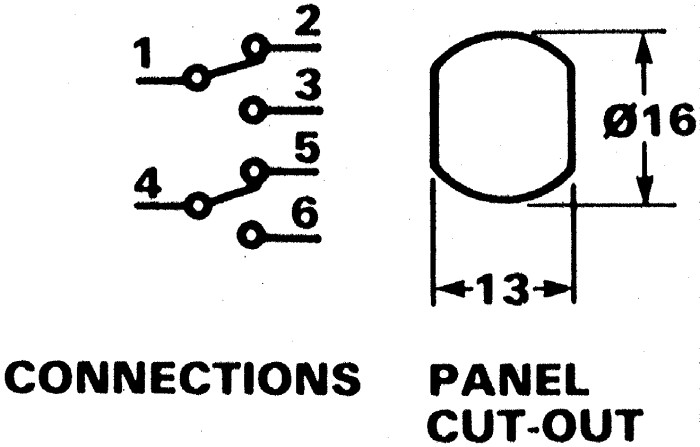

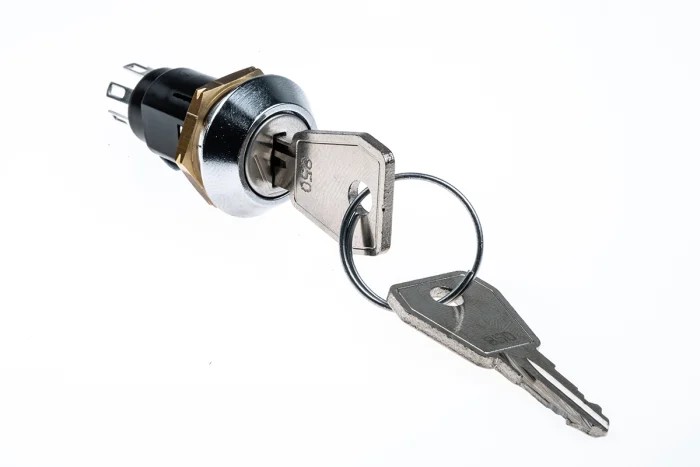

Lorlin SRL5MS2850 Key Switch is a high-quality, miniature key-operated lock switch designed for low voltage control applications. Featuring a double pole change over (DPCO) contact design with a current rating of 1A, it effectively controls circuits at up to 24V dc or 240V ac voltages. The device incorporates a common key mechanism with key trapping for enhanced operational safety, allowing the key to remain trapped in certain positions for security.

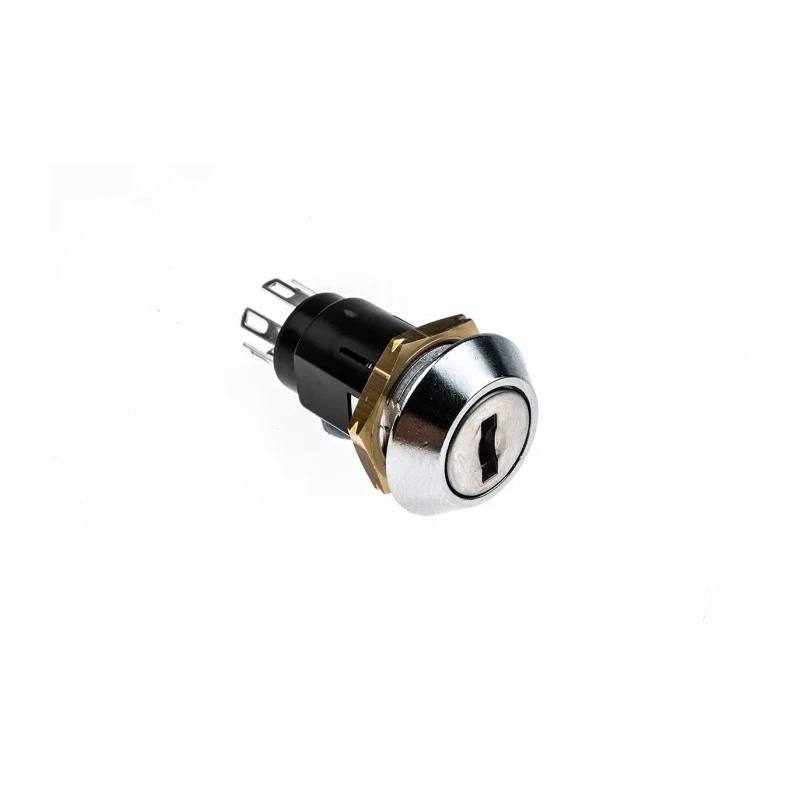

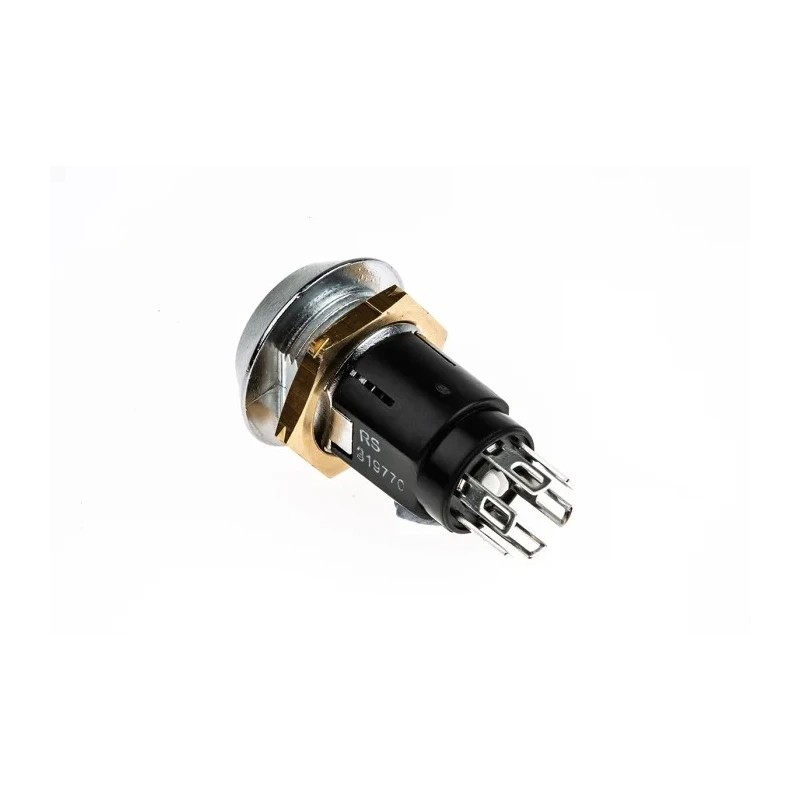

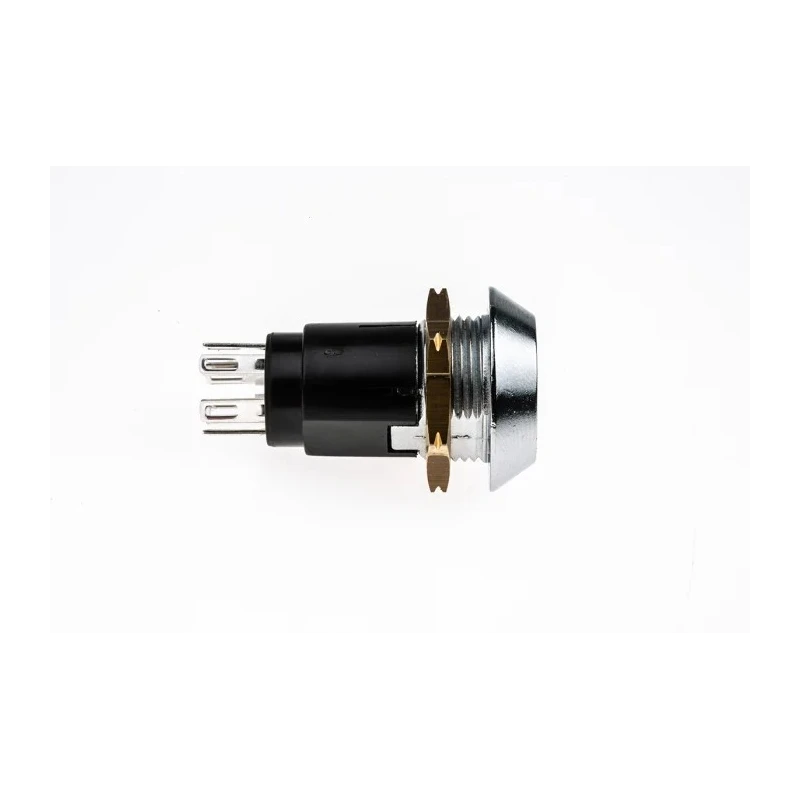

The robust housing is made from fibreglass reinforced polyamide, providing strength and durability while occupying minimal panel space. The bezel has a tapered shape which facilitates easy assembly from the front of equipment panels, with the rear projection limited to just 22.4mm for integration into compact enclosures.

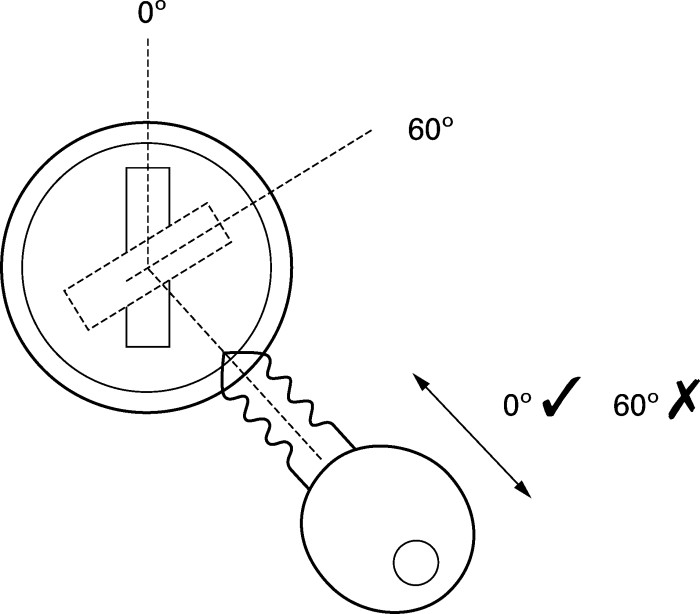

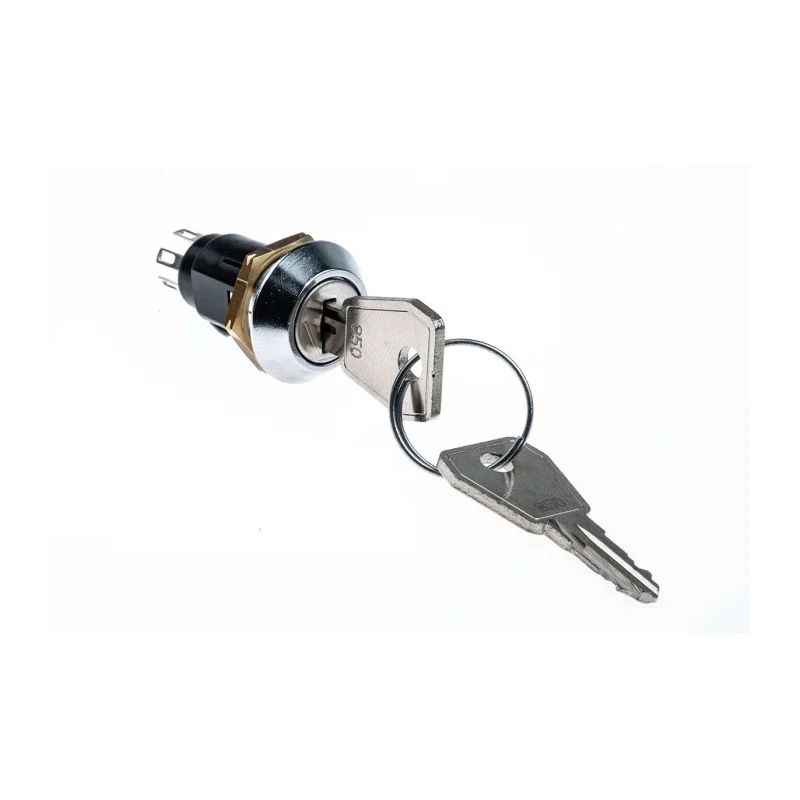

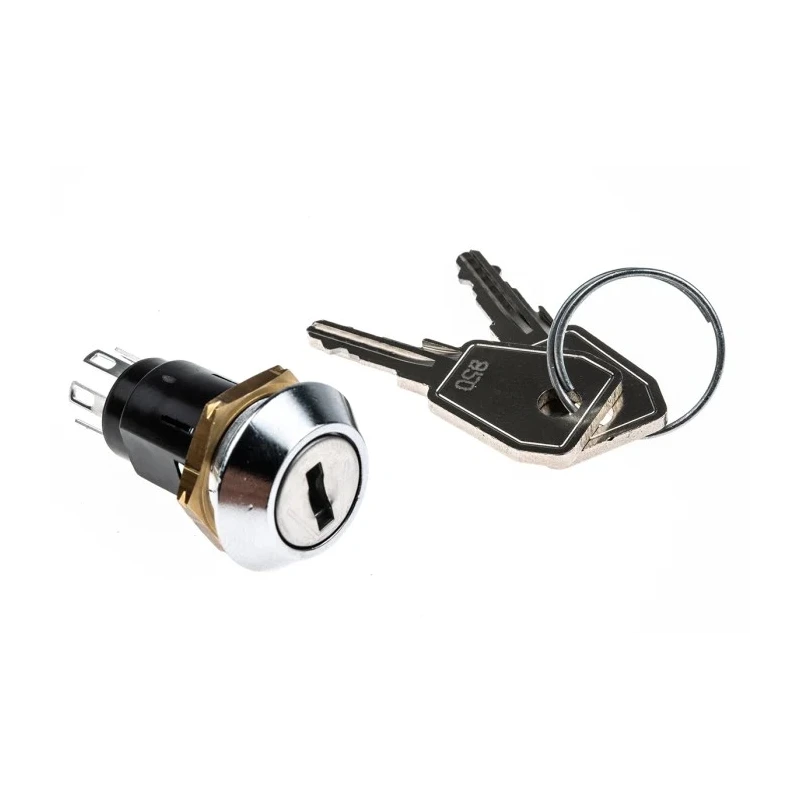

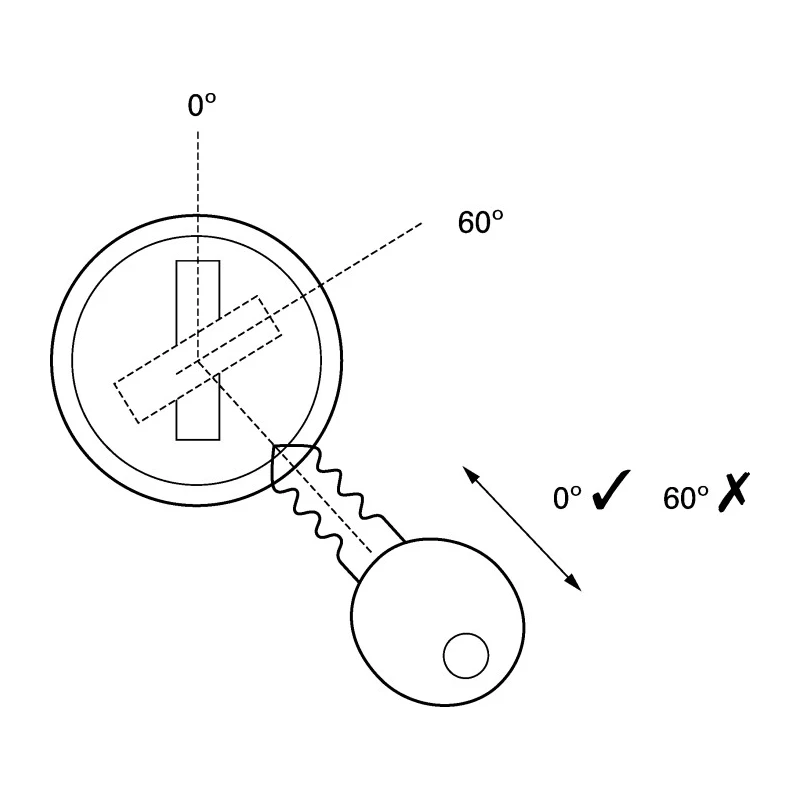

The key is double entry, meaning it can be inserted either way, and the key index angle is set at 60 degrees, supporting precise control in switching applications. The contact material is silver plated brass for corrosion resistance and reliable electrical conduction. This key switch is rated for mechanical endurance up to 10,000 switching operations, ensuring extended service life.

Recommended for industrial and commercial uses including control panels, alarms, and lighting controls, it meets RoHS environmental standards and complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 for electrostatic discharge protection.

The switch provides reliable electrical control with DPCO contact configuration. Designed for compact panel mounting with tapered bezel and short rear depth. Key trapping and common key features for safe operation. Durable construction with fibreglass reinforced polyamide housing.

Operates reliably across a wide temperature range of -20°C to 65°C. Silver plated brass contacts ensure stable electrical connection. Mechanical life of 10,000 operations maintains longevity in demanding environments.

Lorlin Key Switches are ideal for use in industrial automation, electrical control systems, security systems, and any application requiring secure keyed switching functionality. Browse the EnvMart catalog for related control and selector switches and comprehensive electrical components tailored to professional industrial needs.
