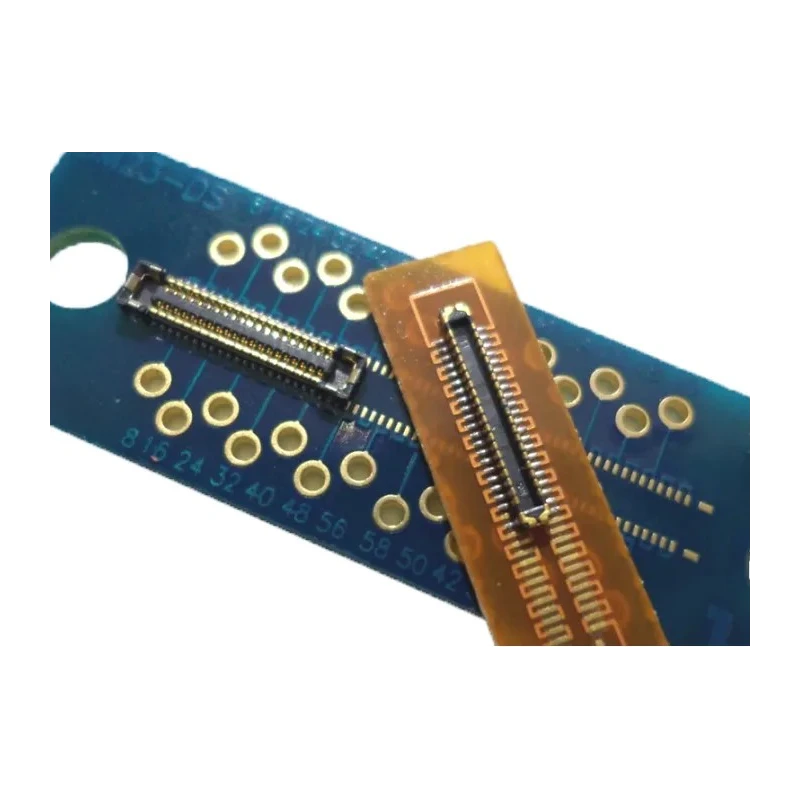

Hirose 30 Way Straight Male FPC Connector 0.35mm Pitch Surface Mount BM23PF0.8-30DP-0.35V(895)
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30, 30V ac |
| Brand | Hirose |
| Orientation | Straight |
| Current | 300, 5mA |
| Model | BM23PF0.8-30DP-0.35V(895) |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | 23 |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -55°C |
| Interfaces | USB3 |
| Number of Rows | 2 |
| Pitch | 0.35mm |
| Contact Plating | Gold |
| Number of Contacts | 30 |
| Contact Gender | Male |
| Connector Gender | Male |
| Insertion Force | Non-ZIF |
| Contact Position | Top |
Key Features
- FPC connector with 30 contacts for reliable signal transmission.
- Constructed with phosphor bronze contacts plated in gold for corrosion resistance.
- Supports a maximum current of 5A and operates up to 30V AC.
- Mount type is surface mount with straight orientation and top contact position.
- Features a locking mechanism and non-ZIF insertion force for secure connection.
- Suitable for operation in temperatures ranging from -55°C to 85°C.
- Housing made of liquid crystal polymer for durability and thermal stability.
- Compliant with USB3.1 Gen.2 (10Gbps) transmissions for high-speed data applications.
Product Description
Hirose BM23PF0.8-30DP-0.35V(895) is a 30 way straight male FPC connector featuring a 0.35 mm pitch and surface mount termination. This connector delivers precise and reliable electrical connections, essential for modern electronic assemblies requiring compact design and high performance.
The connector utilizes phosphor bronze contacts plated with gold to prevent corrosion and ensure longevity. It supports currents of up to 5A and operates safely with voltages up to 30V AC. The non-ZIF insertion force combined with a locking mechanism guarantees secure mating and durability in demanding environments.
The housing is manufactured from liquid crystal polymer, providing excellent mechanical strength and thermal stability across a wide temperature range from -55°C to 85°C. With a double-row configuration in series 23, it is ideally suited for board-to-board or board-to-flexible printed circuit (FPC) connections.
This FPC connector supports USB3.1 Gen.2 high-speed transmission standards (10Gbps), making it suitable for data-intensive applications in electronic devices, industrial automation, instrumentation, and communication equipment.
Compact 30 contact FPC connector enhances space-saving designs. Gold-plated phosphor bronze contacts resist wear and corrosion. Stable and reliable connections with locking mechanism. Surface mount type facilitates automated PCB assembly.
Wide operating temperature ensures versatility in various environments. Liquid crystal polymer housing provides mechanical and thermal robustness. Supports high-speed data transfer standards for modern electronics. Designed for board-to-board and board-to-FPC applications.
This Hirose FPC Connector is a critical component for high-reliability electronic systems requiring compact size, robust mechanical features, and high electrical performance. Explore more precision connector solutions and components from the Electronics & Electricals categories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 5A.
It operates safely with voltages up to 30V AC.
The contacts are made of phosphor bronze and are gold-plated, while the housing is constructed from liquid crystal polymer.
The pitch size of this connector is 0.35mm.
It can operate in temperatures ranging from -55°C to 85°C.
This model features 30 contacts.
It utilizes a surface mount type for installation.
Yes, it features a locking mechanism for secure mating.
This model has a non-ZIF (Zero Insertion Force) insertion force.
Yes, it is compliant with USB3.1 Gen.2 standards for high-speed data transmission.
It has a double-row configuration with 2 rows.
The connector gender is male.
