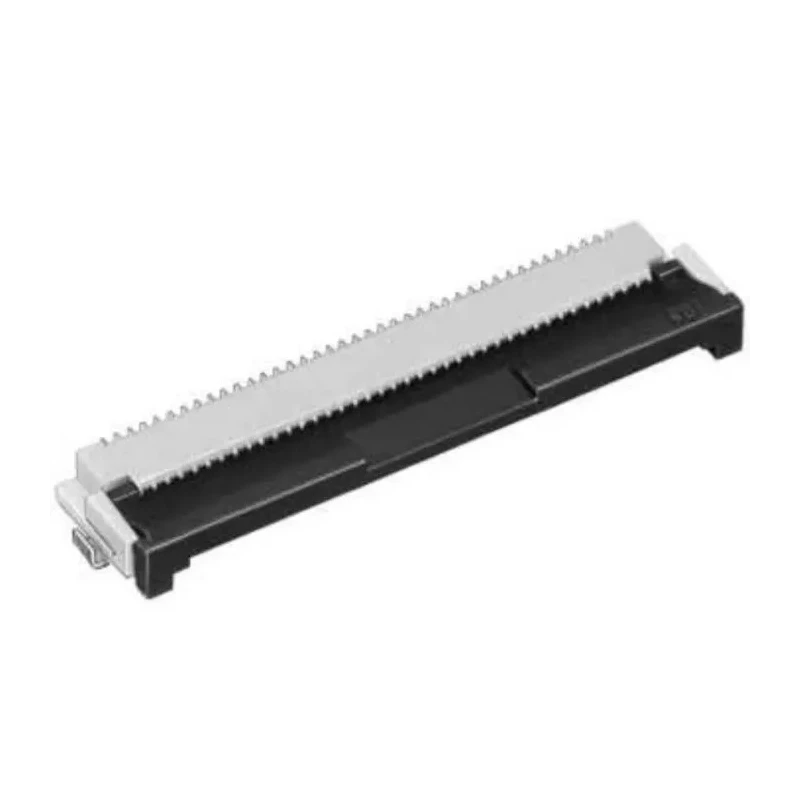

Hirose 0.5 mm Pitch 45 Way Horizontal Female Surface Mount FPC Connector FH12S-45S-0.5SH(55)

Hirose FH12S-45S-0.5SH(55) is a high-quality 45 Way Horizontal Female FPC Connector designed with a compact 0.5 mm pitch and Surface Mount technology, ensuring reliable electrical connections for advanced electronic applications.

The connector features 45 gold-plated phosphor bronze contacts arranged in a single row, providing excellent conductivity and resistance to corrosion. Its polyamide housing supports durability while maintaining a lightweight profile.

Designed with a rotating one-touch Zero Insertion Force (ZIF) mechanism, this connector allows easy insertion and removal of flexible printed circuits without damage, improving assembly efficiency and longevity in applications.

Rated for 500mA current and 50V AC voltage, it ensures safe and stable performance. The locking mechanism assures a firm connection preventing accidental disconnections, ideal for industrial and commercial electronic devices.

Operating temperature ranges from -40°C to 85°C, making it suitable for diverse environments including telecommunications, instrumentation, data acquisition, and embedded systems.

This connector supports high-density mounting due to its small pitch, top contact position, and horizontal orientation, facilitating compact PCB designs in consumer electronics, medical devices, and manufacturing equipment.

Features 45 contacts with gold-plated phosphor bronze material. Supports a current rating of 500mA and a voltage rating of 50V AC. Equipped with a ZIF insertion force and a horizontal orientation. Designed with a polyamide housing and one row of contacts.

Locking mechanism provides secure connection and ease of use. Operating temperature ranges from -40°C to 85°C, suitable for various environments. This connector utilizes a rotating one-touch ZIF mechanism for reliable engagement.

Suitable for high-density mounting with top-contact position and surface mount termination. Explore EnvMart’s wide range of Hirose connectors for reliable and precise electronic component solutions.
