| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.35mm |
| Length | 2mm |
| Model | BZM55C15-TR |
| Mount Type | Surface |
| Series | BZM55 |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-80 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 100nA |
| Nominal Zener Voltage Vz | 15V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 30Ω |

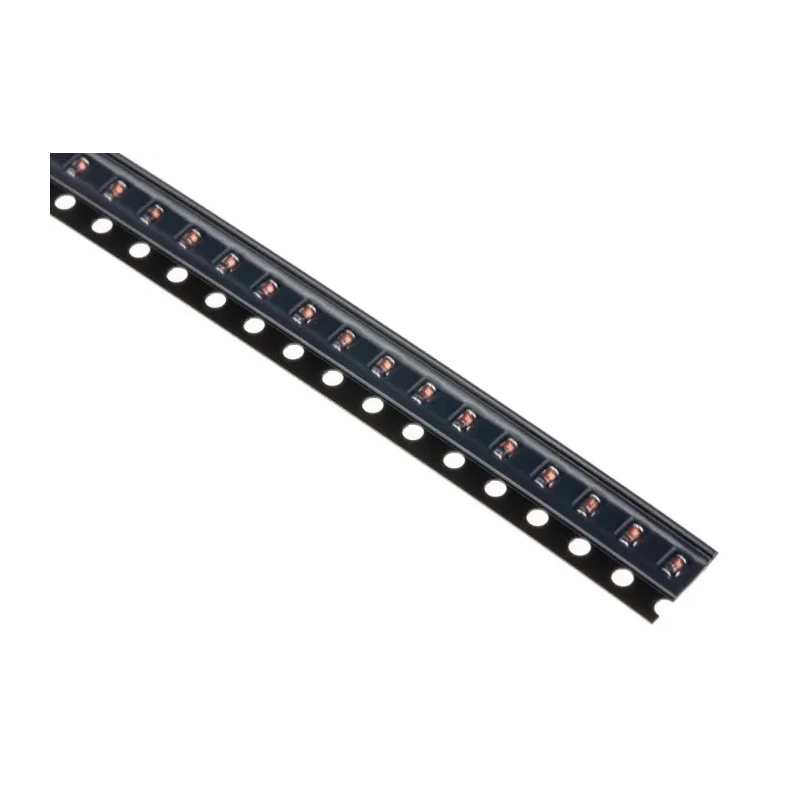

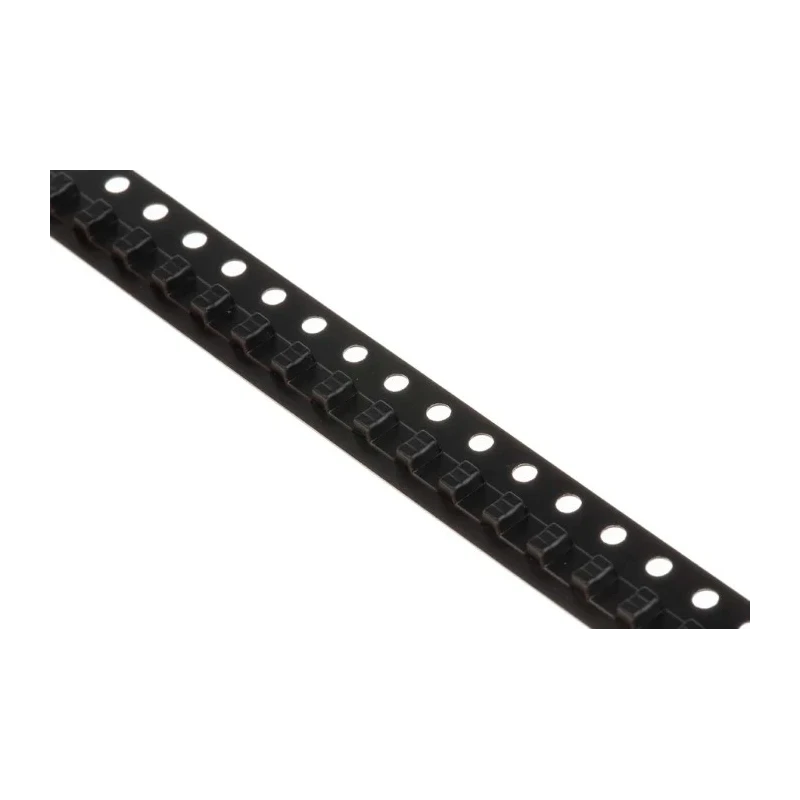

Vishay BZM55C15-TR is a high-quality single Zener diode designed for voltage regulation and protection in electronic circuits. It provides a nominal Zener voltage of 15 V with a precise tolerance of ±6%, making it ideal for stable voltage reference and regulation tasks in various electronic and industrial applications.
This diode supports a maximum power dissipation of 500 mW, which allows it to handle moderate levels of electrical power safely, maintaining performance and reliability. It features a low reverse leakage current of 100 nA to minimize energy loss.
Designed as a surface-mount device (SOD-80 package) with 2 pins, it is suitable for modern automated PCB assembly processes and space-optimized electronic designs. The compact physical dimensions (2 mm length and 1.35 mm height) enable its use in dense circuit boards.
The device operates reliably across a broad temperature range from -65°C to 175°C and meets the stringent automotive standard AEC-Q101, qualifying it for automotive electronics and other demanding industrial environments.
High reliability single element Zener diode suitable for voltage regulation applications. Nominal Zener voltage of 15 volts with ±6% tolerance for precise voltage regulation. Maximum power dissipation rated at 500 mW, supporting moderate power requirements.
Surface mount package type SOD-80 with compact 2-pin configuration ideal for modern PCB layouts. Low maximum reverse leakage current of 100 nA enhancing efficiency and reducing power loss. Operational temperature range from -65°C to 175°C for wide environmental applicability.
Compliance with automotive standard AEC-Q101 ensuring robustness for automotive electronics. Compact package dimensions supporting space-efficient design integration. This Vishay Zener diode finds extensive application in industrial, automotive, power management, and electronic manufacturing sectors where stable voltage referencing is critical.
