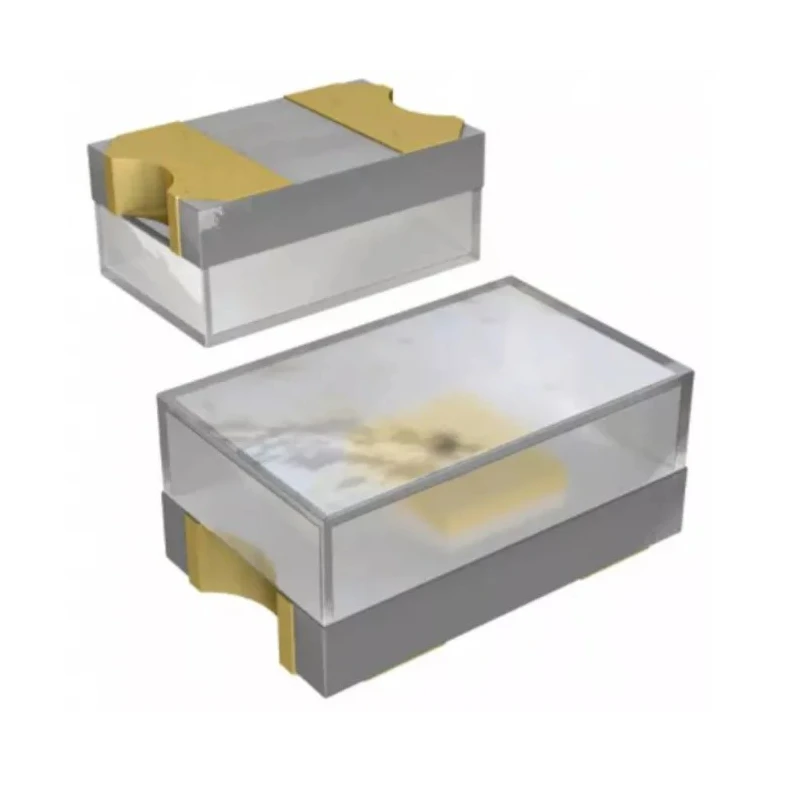

Vishay Infrared Photodiode, Surface Mount 0805 Package, 65 ° Half Sensitivity Angle TEMD7100X01

Free Delivery in India | Lowest Global Shipping Charges

Vishay Infrared Photodiode, Surface Mount 0805 Package, 65 ° Half Sensitivity Angle TEMD7100X01

Name: Vishay Infrared Photodiode, Surface Mount 0805 Package, 65 ° Half Sensitivity Angle TEMD7100X01
Brand: Vishay
SKU: 218018
Price: 0.52 USD
Availability: InStock



Category Photodiode Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Dimensions	2 x 1.25 x 0.85 mm
Height	0.85mm
Length	2mm
Model	TEMD7100X01
Packaging	Tape & Reel
Width	1.25mm
Mount Type	Surface
Short Circuit Current	32μA
Maximum Operating Temperature	100°C
Package Type	0805
Minimum Operating Temperature	-40°C
Polarity	Forward
Dark Current	2nA
Open Circuit Voltage	350mV
Standards/Approvals	RoHS
Number of Pins	2
Typical Fall Time	80ns
Automotive Standard	AEC-Q101
Wavelength of Peak Sensitivity	950nm
Spectrums Detected	Infrared
Breakdown Voltage	60V
Angle of half intensity	60°
Minimum Wavelength Detected	750nm
Maximum Wavelength Detected	1050nm
Angle of Half Sensitivity	65 °

Key Features

This photodiode detects infrared spectrum with peak sensitivity at 950nm.
The device features a daylight filter to block ambient visible light for accurate detection.
It is designed for surface mount applications with a footprint of 2 x 1.25 x 0.85 mm.
The photodiode offers fast response times with typical rise and fall times of 80ns.
Temperature range extends from -40°C to 100°C for reliable operation.
The photodiode is supplied on tape and reel packaging for automated assembly compatibility.
It is suitable for applications including IR remote control, photointerrupters, and shaft encoders.
The component conforms to RoHS and automotive standard AEC-Q101.

Product Description

Vishay TEMD7100X01 infrared photodiode is a new, high-performance semiconductor device housed in a compact, surface mount 0805 package measuring 2 x 1.25 x 0.85 mm. It features a daylight blocking filter that eliminates visible light interference, enabling precise infrared detection particularly at a peak sensitivity wavelength of 950nm.

This photodiode's sensitive area measures 0.23 mm², allowing for efficient infrared radiation detection within a 65 ° half sensitivity angle and an alternate specification listing 60° angle of half intensity. It supports wavelengths from 750nm minimum to a maximum of 1050nm.

The device provides fast response with typical rise and fall times of 80 nanoseconds, making it ideal for high-speed applications. Its electrical characteristics include a breakdown voltage of 60V, open circuit voltage of 350mV, dark current of 2nA, and short circuit current of 32μA, ensuring reliable signal readings.

Operating securely within temperatures of -40°C to 100°C and following the automotive AEC-Q101 standard, this photodiode is designed for use in demanding industrial, automotive, and communication applications such as IR remote control systems, photointerrupters, IR data transmission, and shaft encoders.

The TEMD7100X01 is supplied in tape and reel packaging to facilitate efficient automated installation processes in manufacturing environments. The surface mount design and its small footprint make it well-suited for compact electronic assemblies and modern PCB designs.

This photodiode detects infrared light with peak sensitivity at 950nm. The daylight filter blocks visible light for enhanced detection accuracy. Compact 0805 surface mount package for space-efficient design. Fast response times (80ns rise and fall) enable quick sensing.

Wide temperature range from -40°C to 100°C supports various environments. Compliant with RoHS directives and automotive AEC-Q101 standards. Suitable for industrial, automotive, and communication electronic applications. Supplied on tape and reel for automated assembly integration.
