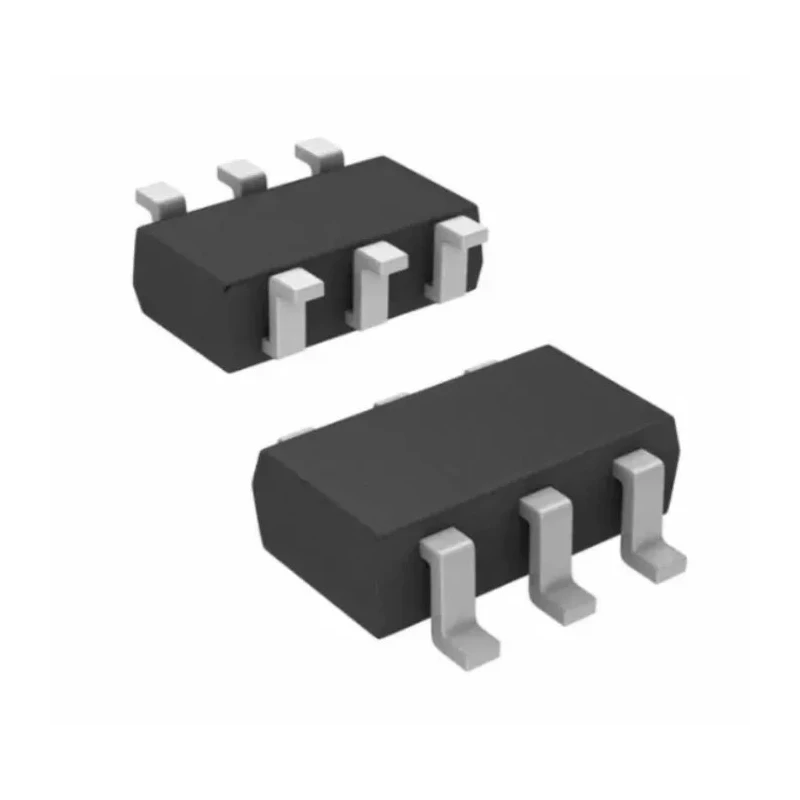

Vishay Analogue Switch, CMOS Logic Dual SPST, 6-Pin TSOP, 36V Supply, 20Ω On State Resistance DG467DV-T1-E3
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1mm |
| Length | 3.05mm |
| Model | DG467DV-T1-E3 |
| Width | 1.65mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | DG467 |
| Configuration | Dual SPST |
| Maximum Operating Temperature | 85°C |
| Package Type | TSOP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 6 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 36V |
| Logic Family | CMOS |
| Minimum Supply Voltage | -4.5V |
| Maximum On State Resistance | 20Ω |
Key Features
- Low on-state resistance of 20Ω ensures minimal signal degradation.
- Wide supply voltage range from -4.5V to 36V supports various system rails.
- Dual single-pole single-throw configuration provides independent switching paths.
- Compact 6-pin TSOP surface-mount package supports automated assembly.
- Operating temperature range from -40°C to 85°C for industrial applications.
- CMOS logic family with TTL-compatible outputs for low input current.
- Small package size of 3.05mm x 1.65mm x 1mm suitable for space-constrained designs.
- RoHS compliant and manufactured in China.
Product Description
Vishay DG467DV-T1-E3 Analogue Switch is a CMOS logic family device offering dual single-pole single-throw (SPST) switching functionality in a compact 6-pin TSOP surface-mount package. It supports a broad supply voltage range from -4.5V to 36V and features low on-state resistance of 20Ω which enables minimal signal loss, making it suitable for mixed-signal routing applications.
The device operates reliably in ambient temperatures from -40°C to 85°C, targeting industrial electronics requiring wide operating ranges and predictable switching behaviour with CMOS logic-level control and TTL compatible outputs.
With a small footprint of 3.05mm length, 1.65mm width, and 1mm height, the DG467DV-T1-E3 is ideal for compact designs and prototype boards requiring space-saving switches. Its surface-mount TSOP packaging supports standard pick-and-place automated assembly and reflow soldering processes.
This analogue switch is widely used in applications such as analogue signal multiplexing in measurement instruments, level switching in mixed-signal control systems, routing audio signals in compact devices, and interfacing with low-voltage logic circuits in consumer electronics.
Note that the device is not qualified for automotive standards and should not be selected for automotive applications requiring certified components. Low on-state resistance of 20Ω ensures efficient signal routing. Wide supply voltage range from -4.5V to 36V accommodates diverse electronic system requirements.
Dual SPST switching configuration allows independent control of two signals. Compact 6-pin TSOP package enables space-efficient PCB designs. Wide temperature range (-40°C to 85°C) supports industrial environment operation.
CMOS logic family with TTL compatible outputs reduces input current requirements. RoHS compliant manufacturing meets environmental standards. Explore the wide range of Analogue Switches and semiconductor components available to enhance your electronic design projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The on-state resistance is 20Ω, which ensures minimal signal degradation during operation.
It supports a wide supply voltage range from -4.5V to 36V, accommodating various electronic system requirements.
This model is housed in a compact 6-pin TSOP surface-mount package, suitable for automated assembly processes.
The operating temperature range is from -40°C to 85°C, making it suitable for industrial applications.
It features a dual single-pole single-throw (SPST) configuration, allowing independent control of two signals.
The dimensions are 3.05mm in length, 1.65mm in width, and 1mm in height, making it suitable for space-constrained designs.
It has CMOS logic family outputs that are TTL compatible, which helps reduce input current requirements.
Yes, this analogue switch is RoHS compliant, meeting environmental standards for hazardous substances.
It is widely used for analogue signal multiplexing, level switching in mixed-signal control systems, and routing audio signals in compact devices.
The maximum supply voltage is 36V, allowing it to operate within a broad range of electronic systems.
This model has a pin count of 6, which is typical for its compact design.
It is manufactured in China, as indicated by its country of origin.
