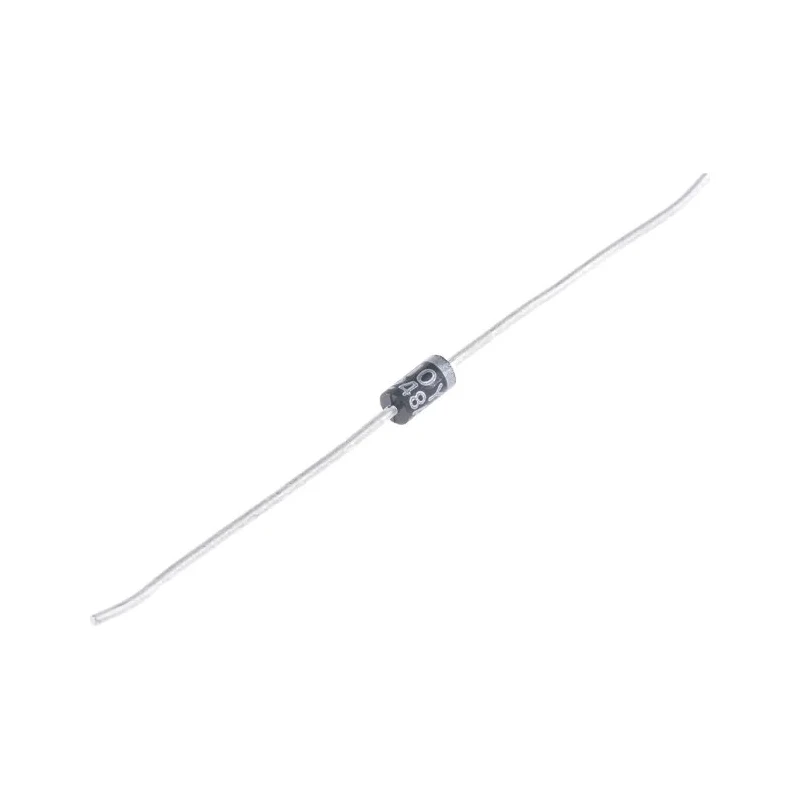

Vishay General Purpose 1600 V 1 A Diode 2-Pin DO-204AL GP10Y-E3/54

Vishay GP10Y-E3/54 is a General Purpose diode designed for applications requiring high voltage (1600 V) and moderate current handling (1 A). Housed in a compact and durable 2-pin DO-204AL package, this diode offers reliable standard recovery performance suitable for industrial and electronic equipment.

Its maximum continuous forward current of 1 ampere and peak surge current of 25 amperes make it well suited for power rectification and switching circuits in power supplies, inverters, and other electronic assemblies.

The device operates efficiently with a maximum forward voltage drop of 1.3 volts and maintains ultra-low peak reverse current leakage of 5 microamperes, which minimizes power dissipation and heat generation.

Designed to function reliably within a broad temperature range from -65°C to 150°C, it is ideal for harsh industrial, automotive, and commercial environments. The diode also meets rigorous industry standards including Halogen Free, UL 94 V-0 flame retardant, RoHS compliance, MIL-S-19500 military specifications, and the AEC-Q101 automotive qualification.

With dimensional compactness of 5.2 mm length and 2.7 mm diameter, the DO-204AL package ensures easy integration on PCBs in electronic and power semiconductor assemblies. This diode is designed with standard recovery type for reliable switching performance.

It supports continuous forward current up to 1 ampere for robust operation. The maximum reverse repetitive voltage rating is 1600 volts ensuring high voltage endurance. Peak non-repetitive forward surge current capacity is rated at 25 amperes.

It features a low maximum forward voltage of 1.3 volts for efficient conduction. The peak reverse current of only 5 microamperes ensures minimal leakage current. Operating temperature ranges from -65°C to 150°C for versatile environmental conditions.

Compact DO-204AL package dimensions: length 5.2 mm, diameter 2.7 mm, and width 2.7 mm. Compliant with Halogen Free, UL 94 V-0, RoHS, MIL-S-19500 standards and AEC-Q101 automotive standard.

This high-quality rectifier diode is suitable for industrial electronics, power conversion, automotive circuits, and general-purpose semiconductor applications. Whether in power supplies, signal rectification, or protection circuits, it ensures dependable performance and long service life.
