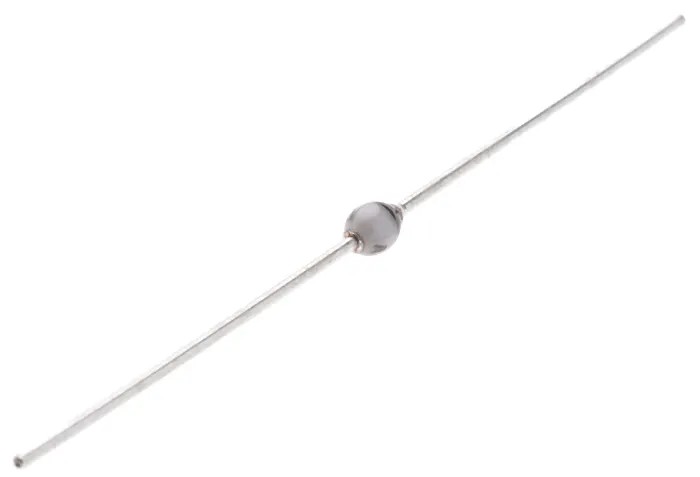

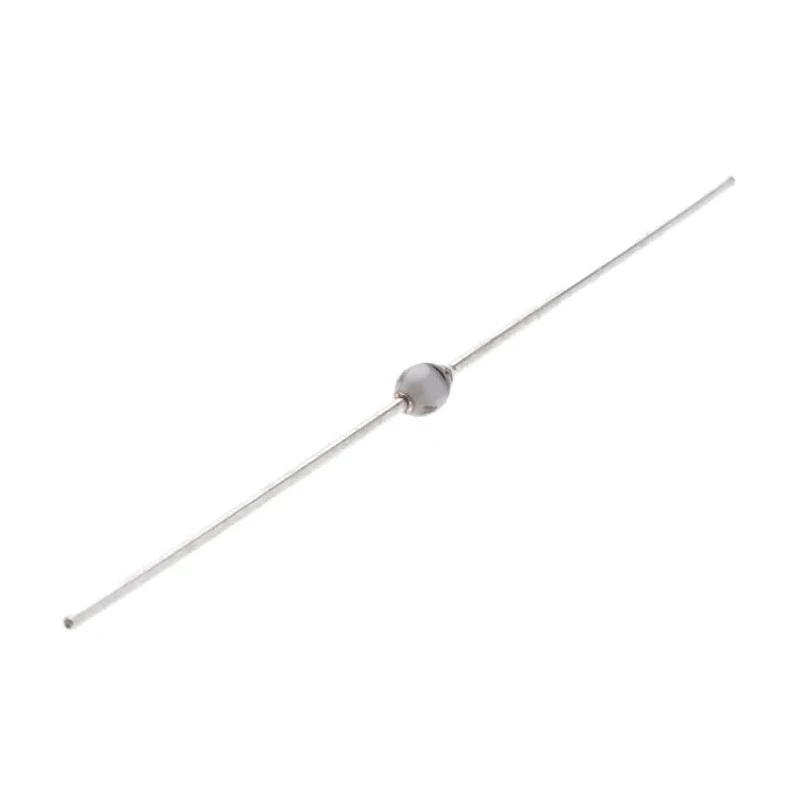

Vishay General Purpose Diode 1500 V 2 A Through Hole SOD-57 Package BY448TAP
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | Vishay |
| Height | 3.6mm |
| Length | 4.2mm |
| Model | BY448TAP |
| Width | 3.6mm |
| Mount Type | Through Hole |
| Series | BY448 |
| Maximum Operating Temperature | 140°C |
| Package Type | SOD-57 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 1500V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 3μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.6V |
| Peak Reverse Recovery Time trr | 20μs |
Key Features
- Mount type is through hole for durable PCB assembly.
- Maximum forward voltage drop of 1.6 V ensures efficient conduction.
- Peak non-repetitive forward surge current rating of 30 A allows handling transient loads.
- Operates safely within -55°C to 140°C temperature range for versatile applications.
- Compact dimensions of 4.2 mm length, 3.6 mm width, and 3.6 mm height.
- Single diode configuration with 2-pin connectivity.
- Peak reverse recovery time of 20 microseconds promotes switching efficiency.
- Low peak reverse current of 3 microamperes enhances reliability.
Product Description
Vishay BY448TAP is a high-performance general purpose diode designed with a maximum continuous forward current of 2 A and a peak reverse repetitive voltage rating of 1500 V. It features a through hole mount type and comes in the compact SOD-57 package. This diode ensures efficient rectification and switching with a maximum forward voltage drop of 1.6 V and a peak reverse recovery time of 20 microseconds.
Designed to operate reliably across a broad temperature range from -55°C to 140°C, the BY448TAP diode is suitable for demanding conditions in automotive, industrial, and power supply circuits. Its peak non-repetitive forward surge current rating of 30 A allows it to handle transient overloads safely without damage.
The diode’s small form factor - 4.2 mm length, 3.6 mm width, and 3.6 mm height - allows compact circuit layouts while providing robust performance. Its low peak reverse current of 3 microamperes improves energy efficiency and enhances overall device longevity.
As a standard recovery rectifier from Vishay, this diode is widely used in electronic components, power & connectors, and semiconductor applications including discrete semiconductors and Schottky diode replacement in certain designs. The single diode configuration with 2 pins simplifies integration into PCB designs requiring high voltage rectification.
Mount type is through hole for robust mechanical and electrical connection. Maximum forward voltage drop of 1.6 V for efficient forward conduction. Peak surge current tolerance of 30 A protects against transient surges. Operating temperature range from -55°C to 140°C suits harsh industrial environments.
Compact SOD-57 package size optimizes board space usage. Single Diode configuration with 2 pins for simplicity. Peak reverse recovery time of 20 μs supports fast switching. Low peak reverse current of 3 μA reduces leakage losses.
Ideal for use in power supplies, industrial electronics, and automotive circuits. Explore more Vishay semiconductors and related components on EnvMart to support your industrial and laboratory electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the BY448TAP diode is 2 A.
This model has a peak reverse repetitive voltage rating of 1500 V.
The maximum forward voltage drop is 1.6 V, ensuring efficient conduction.
The peak non-repetitive forward surge current rating is 30 A, allowing it to handle transient loads safely.
It operates safely within a temperature range of -55°C to 140°C.
The dimensions of the SOD-57 package are 4.2 mm in length, 3.6 mm in width, and 3.6 mm in height.
The peak reverse recovery time is 20 microseconds, which promotes switching efficiency.
This diode has a single configuration with 2 pins.
The peak reverse current is rated at 3 microamperes, enhancing reliability.
It uses a through hole mount type for durable PCB assembly.
This diode is suitable for use in automotive, industrial, and power supply circuits.
The BY448TAP diode is manufactured in Hungary.
