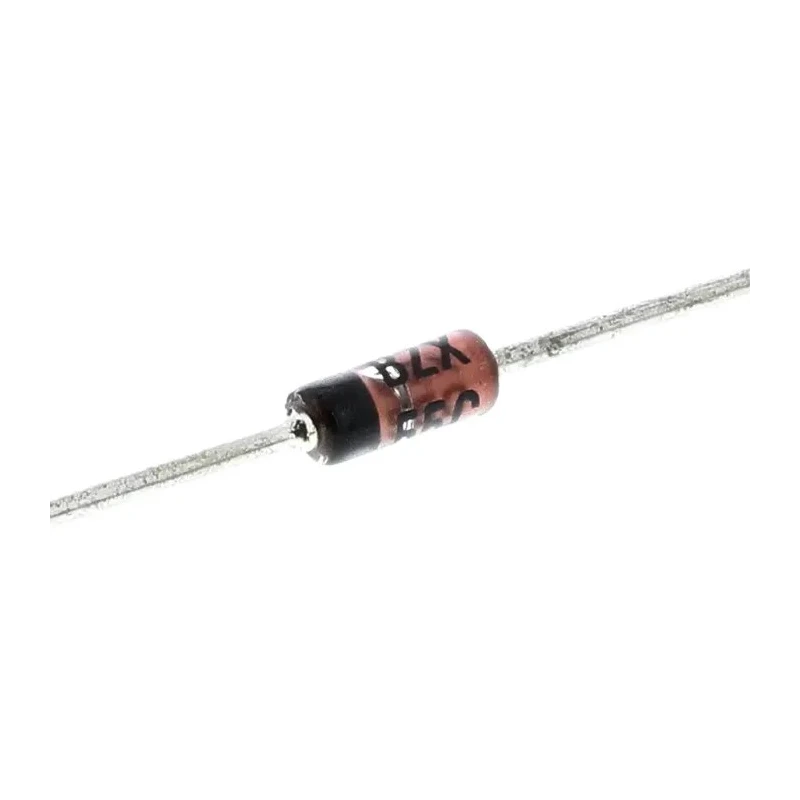

Vishay 9.1 V 500 mW Through Hole 2-Pin DO-35 Zener Diode BZX55C9V1-TAP

Vishay BZX55C9V1-TAP Zener Diode is a small signal discrete semiconductor designed for voltage regulation and protection applications in electronic circuits. This single, 2-pin device provides a nominal Zener voltage of 9.1 V and is capable of dissipating up to 500 mW power ensuring stable voltage regulation in demanding environments.

Its through hole DO-35 package configuration facilitates easy and secure mounting on PCBs, typical for discrete semiconductor components. The diode features a sharp reverse characteristic with a maximum Zener impedance of 10 Ω and low reverse leakage current capped at 100 nA enhancing efficiency and reliability.

The diode operates reliably across a wide temperature range from -65°C to 175°C, making it suitable for industrial, automotive, and general electronic component applications. The height and length dimensions of 1.7 mm and 3.9 mm respectively enable compact footprint designs in electronic assemblies.

It is ideal for use in voltage regulation circuits, protecting sensitive electronics from voltage spikes, and ensuring power supply stability. Nominal Zener voltage of 9.1 V with ±6% tolerance. Maximum power dissipation of 500 mW for reliable performance.

Through hole mounting in DO-35 package for easy printed circuit board soldering. Low reverse leakage current and stable Zener impedance. Wide operating temperature from -65°C to 175°C. Compact size with 1.7 mm height and 3.9 mm length.

AEC-Q101 automotive qualification for high reliability.

This single-element Zener diode suits applications in industrial electronics, automotive systems, telecommunications, and power supply units where voltage regulation and protection are critical.
