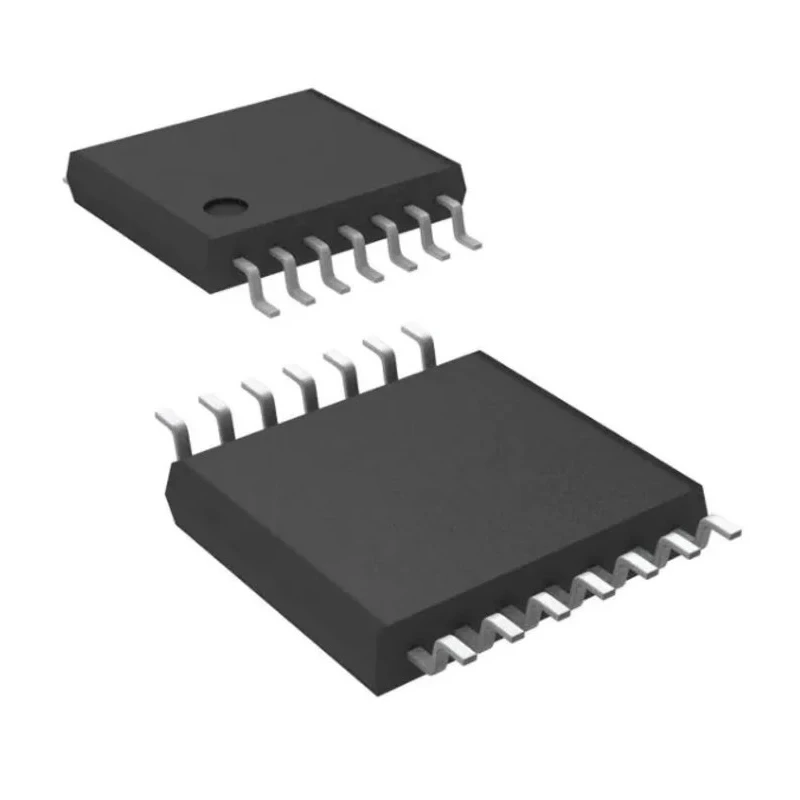

STMicroelectronics Operational Amplifier 1.3 MHz Gain Bandwidth, 4-Channel 16-Pin TSSOP-14 LM224PT

STMicroelectronics LM224PT Operational Amplifier is a low power, quad-channel device designed to operate from a single power supply voltage range of 3 V to 30 V. It features a wide bandwidth of 1.3 MHz and a high voltage gain of 100 dB, making it fit for a wide variety of signal amplification applications in electronics.

Each amplifier in the package consumes only 375 µA supply current, enabling efficient power management especially in battery-operated equipment. The device also offers excellent input performance with low input bias current of 20 nA and input offset current of 2 nA, minimizing errors in precision circuits.

The LM224PT package contains 16 pins in a TSSOP-14 form factor with four operational amplifier channels, enabling compact and integrated solutions on printed circuit boards. The slew rate of 0.4 V/μs and output current capability of 40 mA render the amplifier suitable for driving moderate loads and filtering tasks.

Its operational temperature range from -40 °C to 105 °C ensures stable performance under industrial and commercial environments. This operational amplifier complies with RoHS restrictions, supporting environmentally responsible design and manufacturing.

Due to its small package size with dimensions 5.1 mm length, 4.5 mm width, and 1.2 mm height, the LM224PT fits well in space-constrained applications in industrial electronics, instrumentation, consumer electronics, and laboratory equipment. It belongs to the widely used LM224x series known for reliability.

This quad operational amplifier is ideal for use in signal conditioning, filtering, audio amplification, and data acquisition systems. Its low power consumption and wide supply voltage make it suitable for portable and embedded electronics development.

The four op-amps integrated into this single package simplify multi-stage circuit designs and reduce PCB complexity. Its robust temperature range and RoHS compliance ensure dependable use in industrial and environmentally conscious products.

Compact packaging promotes efficient utilization of PCB space, critical for modern electronic device miniaturization. Explore more Operational Amplifiers and semiconductor components on EnvMart for professional and industrial applications.
