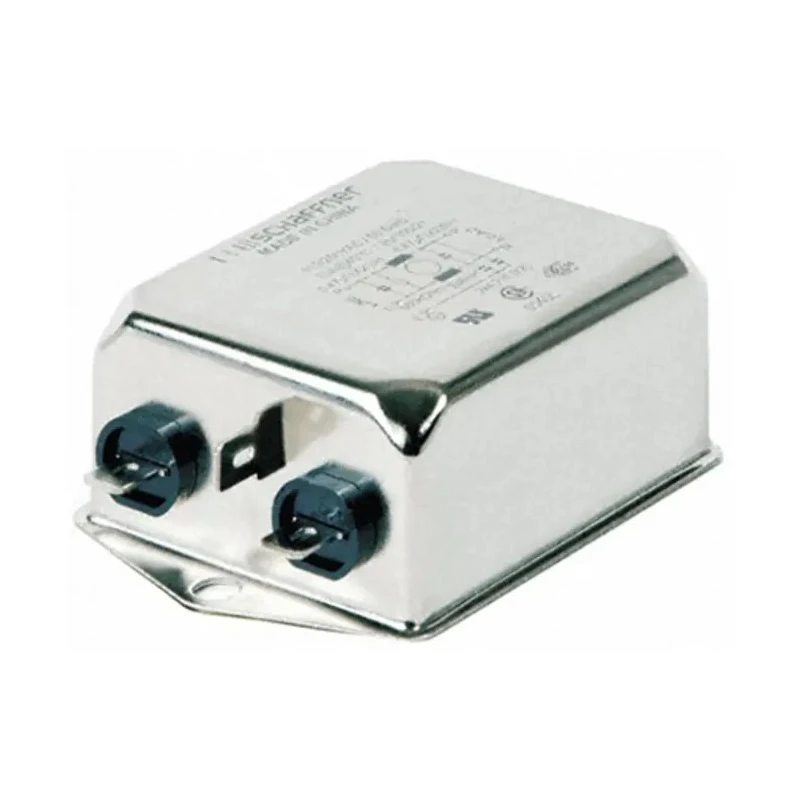

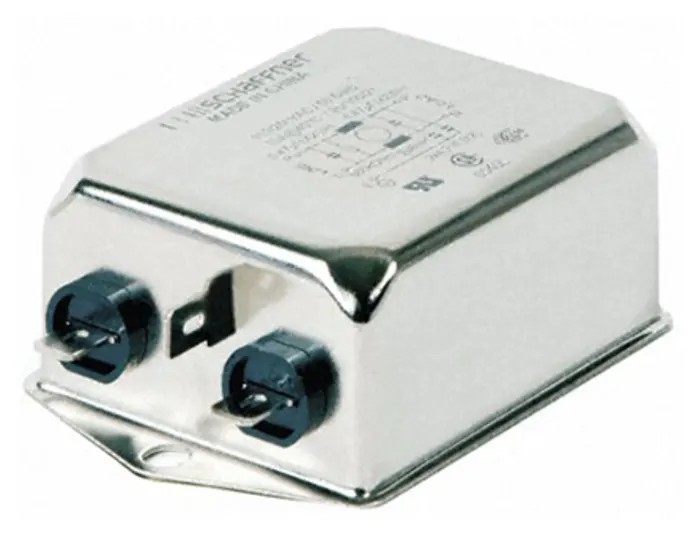

Schaffner Chassis Mount EMI Filter 10 A 250V ac/dc 400Hz Fast-On 1 Phase FN2030

Free Delivery in India | Lowest Global Shipping Charges

Schaffner Chassis Mount EMI Filter 10 A 250V ac/dc 400Hz Fast-On 1 Phase FN2030

Name: Schaffner Chassis Mount EMI Filter 10 A 250V ac/dc 400Hz Fast-On 1 Phase FN2030
Brand: Schaffner
SKU: 217585
Price: 45.98 USD
Availability: InStock



Category EMI Filter Brand Schaffner Condition New

Specifications

Country of Origin	India
Brand	Schaffner
Height	30.3mm
Length	54mm
Model	FN2030
Depth	46.6mm
Mount Type	Chassis Mount
Operating Frequency	400Hz
Series	FN2030
Maximum Operating Temperature	100°C
Number Of Stages	1
Resistance	680kΩ
Capacitance	470nF
Minimum Operating Temperature	-25°C
Maximum Current	10A
Number of Phases	1
Leakage Current	2μA
Maximum Voltage	250V ac/dc
Inductance	8.45mH
Termination Style	Fast-On
Power Loss	5.3W

Key Features

Designed for optimal EMI attenuation in electronic and electrical equipment.
Compact chassis mounting type with robust Fast-On termination style.
Operating temperature range from -25°C to 100°C ensures thermal stability.
Single-stage filter with 470nF capacitance and 8.45mH inductance for effective noise suppression.
Low leakage current of 2μA reduces power loss and interference.
High resistance of 680kΩ and power loss rated at 5.3W for efficient performance.
Applicable across diverse industries requiring EMI filtering such as medical, consumer goods, and electronic data processing equipment.

Product Description

Schaffner FN2030 is a high-performance chassis mount EMI filter designed to provide excellent conducted attenuation for sensitive electronic and electrical devices. Rated for a maximum current of 10 A and operating at 250V ac/dc with a frequency of 400Hz, this filter supports single-phase applications requiring high reliability and noise suppression.

Its fast-on termination style allows for quick and secure electrical connections, while the compact chassis mount form factor is optimized for space-constrained installations. Designed for robust thermal behavior, FN2030 operates effectively within temperatures ranging from -25°C up to 100°C.

The filter is a single-stage device featuring a capacitance of 470nF and an inductance of 8.45mH, ensuring efficient attenuation of electromagnetic interference. Leakage current is minimized at 2μA, contributing to energy efficiency and reducing noise impact. Physical dimensions are 54mm in length, 46.6mm in depth, and 30.3mm in height, making it suitable for various industrial and commercial equipment.

This EMI filter is ideal for applications including electrical and electronic equipment, household appliances, medical devices, and data processing hardware where compliance with electromagnetic compatibility (EMC) standards is critical. Schaffner FN2030 filters are engineered to deliver premium noise attenuation and system protection.

Designed for premium EMI attenuation performance in noisy environments. Fast and easy chassis mounting with reliable Fast-On terminals. Wide operating temperature range for versatile industrial uses. Compact dimensions suited for various equipment installations.

Single-phase, single-stage construction optimized for efficient noise filtering. Low leakage current to reduce power loss and interference. Robust thermal design ensuring stable operation under varying conditions. Applicable across multiple industries including industrial, medical, and consumer electronics.
