Vishay Infrared Visible Light Photodiode TO-18 Package Pin BPW24R

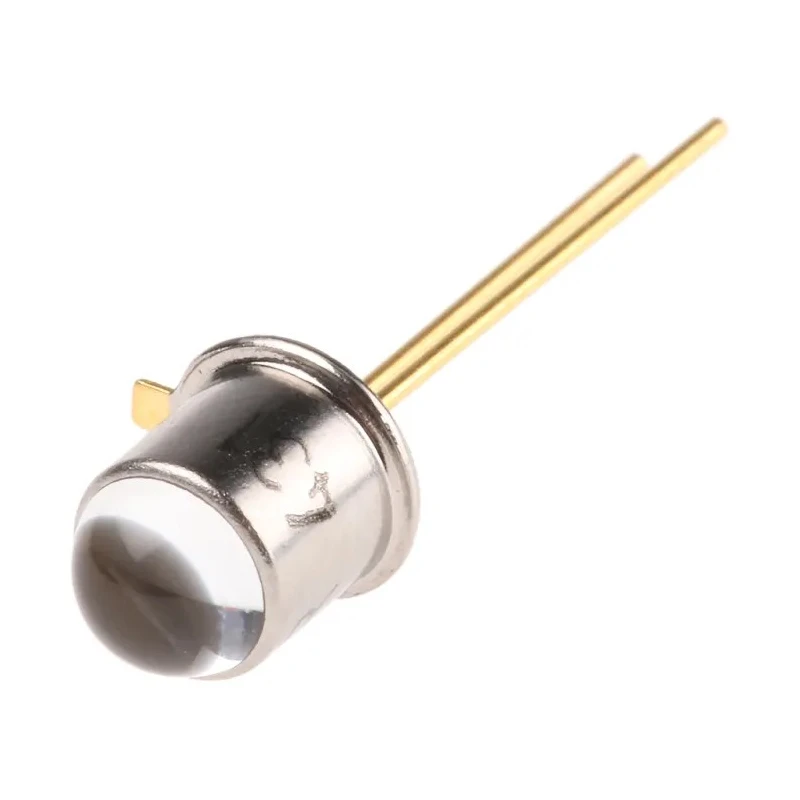

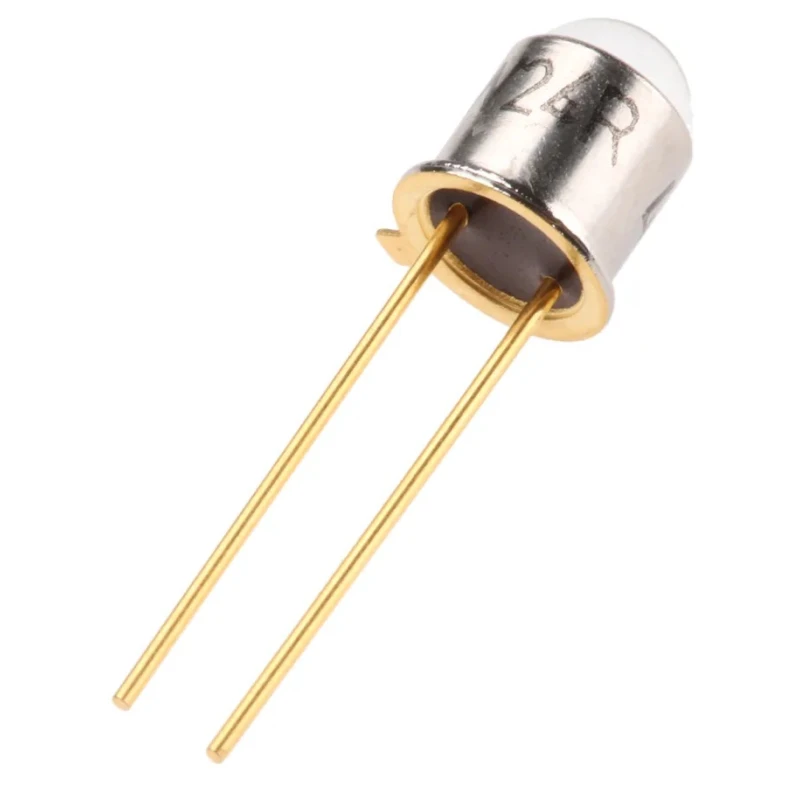

Vishay BPW24R is a silicon PIN photodiode designed for high sensitivity infrared and visible light detection. It comes housed in a TO-18 hermetically sealed metal can package with a glass lens, ensuring durability for use in harsh conditions and industrial environments.

This photodiode detects light within a wavelength range of 600nm to 1050nm, peaking in sensitivity at 900nm. It supports through hole mounting and features a compact form factor with a 5.5mm width, 6.15mm height, and 5.5mm length, and a 5mm package diameter.

The device exhibits fast response characteristics with typical rise and fall times of 80 nanoseconds. It operates reliably across temperatures from -40°C up to 100°C. Its short circuit current is approximately 50µA with minimal dark current leakage of 2nA, making it suitable for precise sensing applications.

The BPW24R photodiode has a breakdown voltage rating of 60V and an open circuit voltage of around 350mV. With an angle of half sensitivity of 65°, it enables effective detection over a broad angular range. It is RoHS compliant and is supplied in tape and reel packaging compatible with automated manufacturing processes.

This photodiode is widely used in electronic components for sensor modules, optoelectronic circuits, communication devices, and industrial optical monitoring systems. This photodiode operates over a broad wavelength range of 600nm to 1050nm.

Fast response time with typical rise and fall times of 80ns. Robust TO-18 metal can package with glass lens ensures protection under harsh conditions. Suitable for infrared and visible light sensing in electronic and industrial applications.

Low dark current of 2nA and short circuit current of 50µA provide sensitive light detection. Operating temperature range from -40°C to 100°C ensures stability in varied environments. Angle of half sensitivity of 65° allows for effective light angle detection.

RoHS compliant and tape & reel packaged for efficient assembly. Compact dimensions support versatile electronic integration. Explore Vishay Photodiodes and optoelectronics for your industrial and engineering projects with EnvMart for reliable component sourcing.
