| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 0.65mm |
| Length | 1.7mm |
| Model | BZT52C2V7T-7 |
| Mount Type | Surface |
| Series | BZT52C2V7T |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-523 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 300mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 20μA |
| Nominal Zener Voltage Vz | 2.7V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 600Ω |
| Typical Voltage Temperature Coefficient | -1.75mV/°C |
| Surface Mount case | SOD-523 |

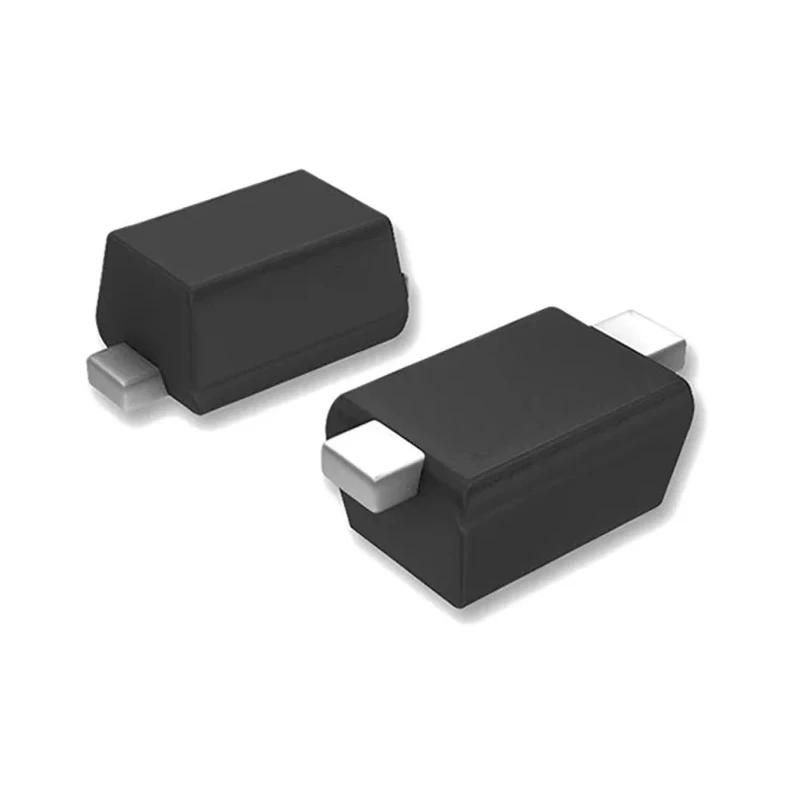

DiodesZetex BZT52C2V7T-7 is a precision 2.7 V Zener Diode designed for stable voltage regulation in electronic circuits. It is a single-element voltage regulator diode housed in a compact surface mount SOD-523 package with 2 pins, making it suitable for high-density PCB layouts and automated assembly lines.
The device supports a maximum power dissipation of 300 mW and operates reliably within a temperature range of -65°C to 150°C. The device's nominal Zener voltage rating of 2.7 V with a tolerance of ±7% ensures dependable voltage reference and regulation.
Its test current is specified at 5 mA, with a maximum Zener impedance of 600 Ω, which contributes to excellent voltage stability and low noise in electronic power supplies. The maximum reverse leakage current of 20 μA minimizes power loss and enhances efficiency in various applications.
With a small height of 0.65 mm and length of 1.7 mm, the diode is ideal for modern electronic device manufacturing where miniaturization is key. This diode does not carry any special automotive standard certifications and is produced in China.
This component is widely used across industrial electronics, power and connector applications, and general semiconductor device assemblies where voltage regulation at low power levels is needed. The surface mount design ensures ease of use in automated manufacturing and repair processes.
The diode has a single-element configuration for voltage regulation applications. Operates at nominal 2.7 V Zener voltage with ±7% tolerance. 300 mW maximum power dissipation supports low power uses. Surface mount SOD-523 package with 2 pins for compact mounting.
Operating temperature ranges from -65°C to 150°C for broad use. Maximum reverse leakage current is 20 μA for improved efficiency. Typical voltage temperature coefficient is -1.75 mV/°C for stability. Dimensions: height 0.65 mm, length 1.7 mm.
Ideal for industrial electronics, semiconductor, and power applications. Manufactured in China with no automotive certification. Explore our complete range of Zener Diodes at EnvMart for your voltage regulation and electronic component needs.
