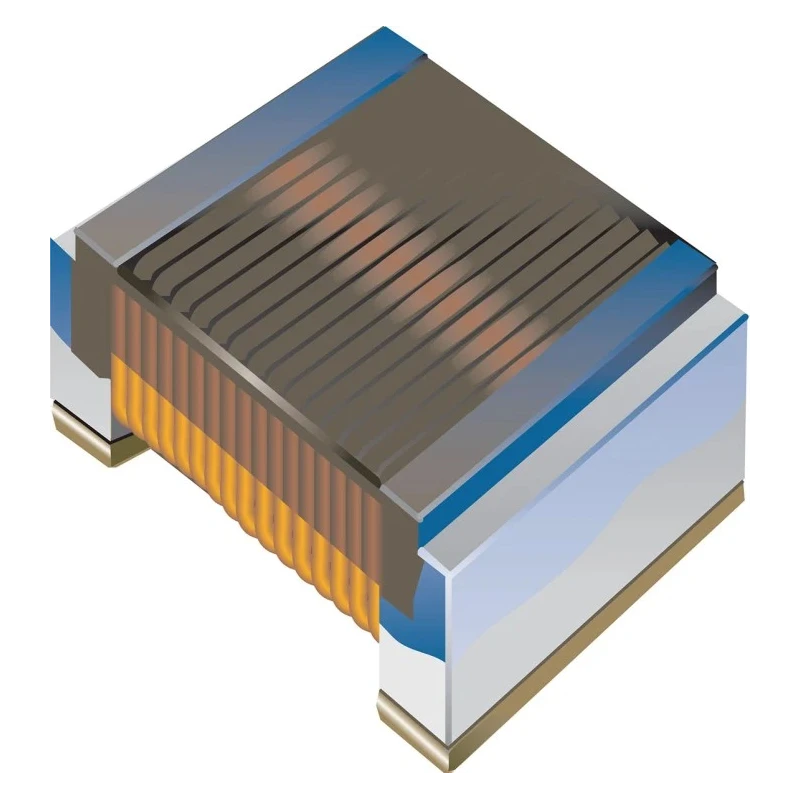

Bourns 0402 Unshielded Wirewound Surface Mount Inductor Ceramic Core 30 nH ±5% 400 mA Idc Q:25 CW105550A
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Bourns |
| Height | 0.5mm |
| Length | 1mm |
| Model | CW105550A |
| Depth | 0.55mm |
| Packaging | Tape & Reel |
| Series | CW105550A |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ceramic |
| Inductance | 30nH |
| Standards/Approvals | RoHS |
| Package/Case | 0402 |
| Maximum DC Current | 400mA |
| Maximum DC Resistance | 300mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 2.35GHz |
| Minimum Quality Factor | 25 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- The inductor supports a maximum DC current of 400 mA.
- It features a high quality factor (Q) of 25 for stable performance.
- Package size is compact 0402 for surface mount applications.
- Ceramic core ensures stable electrical characteristics under varying conditions.
- Operates reliably within a temperature range of -40°C to 125°C.
- RoHS compliant and halogen free, suitable for environmentally conscious designs.
- Maximum DC resistance is 300 mΩ, minimizing power loss.
- Self-resonant frequency is rated up to 2.35 GHz for high-frequency applications.
Product Description
Bourns CW105550A is an unshielded wirewound surface mount inductor in the 0402 package with a ceramic core. It offers an inductance of 30 nH with a tolerance of ±5% and supports a maximum DC current of 400 mA, making it ideal for use in diverse electronic circuits requiring stable inductance and high quality factors.
The inductor construction utilizes a ceramic core which provides stable electrical characteristics across varying operating conditions, making this component well-suited for automotive and industrial applications. The device operates efficiently up to 125°C and down to -40°C, meeting stringent automotive standard AEC-Q200.
This component features a compact 0402 surface mount package with dimensions approximately 1 mm length, 0.5 mm height, and 0.55 mm depth. The termination style is designed for surface mounting, promoting ease of PCB assembly and reliable connections.
Key electrical characteristics include a maximum DC resistance of 300 mΩ, minimum quality factor of 25, and a maximum self-resonant frequency of 2.35 GHz, supporting high frequency and low loss designs.
The inductor is RoHS compliant and halogen free, aligning with environmental and safety standards. It suits applications in power management, signal filtering, and RF circuits in industrial, automotive, and commercial electronic systems.
The inductor supports a maximum DC current of 400 mA. Ceramic core provides stable electrical behavior under thermal stress. Compact 0402 surface mount package enhances board space utilization. High self-resonant frequency enables performance in RF circuit applications.
Meets AEC-Q200 automotive standards ensuring reliability and quality. Low DC resistance minimizes power loss and improves efficiency. RoHS compliant and halogen free for safe and environmentally friendly use. Temperature range from -40°C to 125°C for broad application range.
This Bourns Surface Mount Inductor is ideal for designers seeking quality inductive components for power and signal conditioning circuits. Explore more related passive components and inductors in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 30 nH with a tolerance of ±5%.
It supports a maximum DC current of 400 mA.
The maximum self-resonant frequency is rated up to 2.35 GHz.
The dimensions of the 0402 package are approximately 1 mm in length, 0.5 mm in height, and 0.55 mm in depth.
It operates reliably within a temperature range of -40°C to 125°C.
The inductor features a ceramic core, which ensures stable electrical characteristics under varying conditions.
The maximum DC resistance is 300 mΩ, minimizing power loss.
Yes, it is RoHS compliant and halogen free, making it suitable for environmentally conscious designs.
This model meets the AEC-Q200 automotive standard, ensuring reliability and quality.
The minimum quality factor (Q) is rated at 25.
It features a surface mount termination style, promoting ease of PCB assembly and reliable connections.
The country of origin for this inductor is Malaysia.
