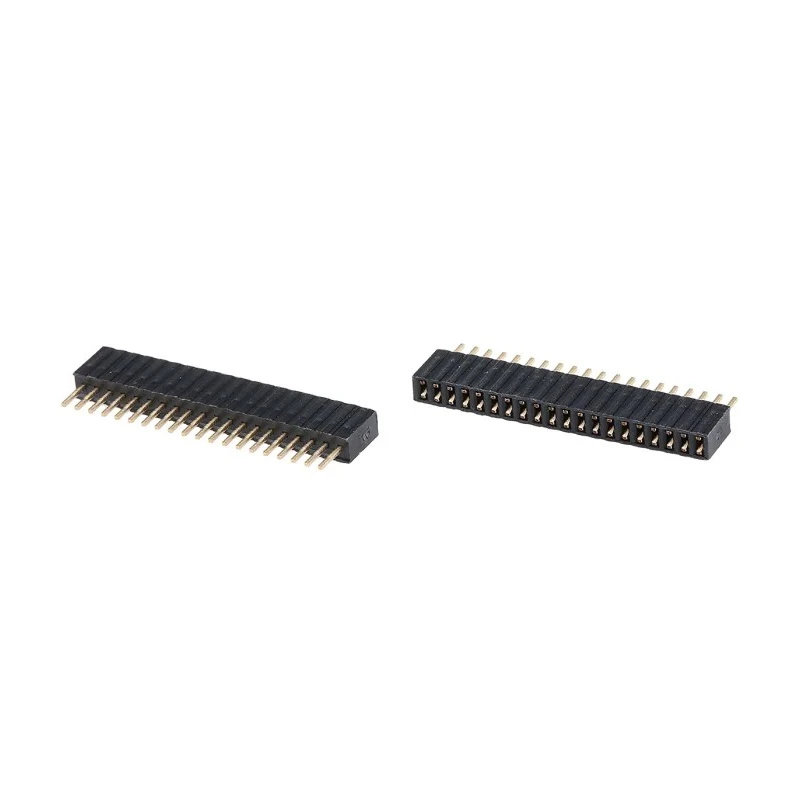

HARWIN Straight Through Hole PCB Socket 20-Contact 1 Row 1.27 mm Pitch 12A 500V Nylon Housing M52-5002045

HARWIN M52-5002045 is a high-quality PCB socket designed for straight through hole mounting with a pitch of 1.27 mm and 20 female contacts arranged in a single row. The socket features a robust nylon housing that provides strong mechanical support and electrical insulation, suitable for demanding industrial environments.

This PCB socket is rated for a current of 12A and voltage up to 500V, making it fit for various electronics assembly and power connectors. Its solder termination method ensures secure attachment to the printed circuit board.

The contacts are made of bronze material with gold plating, enhancing conductivity and corrosion resistance for long-term reliability. Operating temperature range from -40°C to 105°C makes this socket compatible with diverse applications across electronic manufacturing and industrial equipment.

This model belongs to the HARWIN M52 series and mates with compatible pin headers for board-to-board connections, supporting seamless integration in electronic systems. The shrouded design increases protection and alignment accuracy during assembly.

Nylon housing for high durability and insulation. 1.27 mm pitch with 20 contact points in a single row. Solder termination for stable PCB mounting. Bronze contacts plated with gold for superior conductivity. 12A current rating and 500V voltage capacity.

Wide operating temperature from -40°C to 105°C. Compatible with M52 series pin headers. Ideal for industrial, electronic, and manufacturing uses.

This product is essential for electronic component assembly requiring reliable, high-performance socket connections. It is well suited for laboratory, commercial, and industrial PCB applications where durability and electrical safety are critical.
