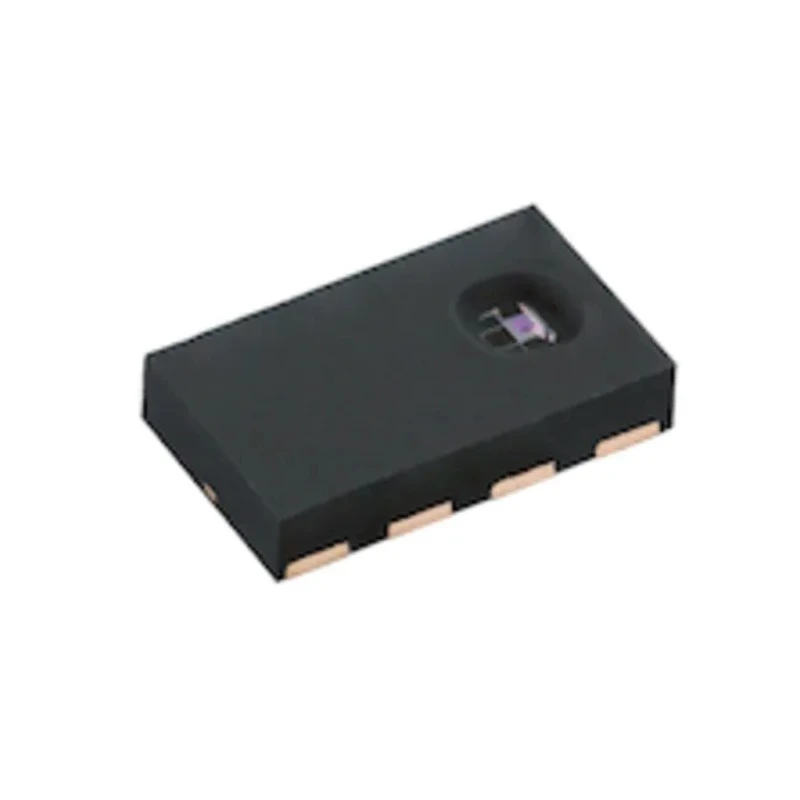

Vishay Ambient Light & Proximity Sensor Surface-Mount SMD 8 Pin 2.5V–3.6V 500mm Sensing Distance VCNL4035X01-GS08

Free Delivery in India | Lowest Global Shipping Charges

Vishay Ambient Light & Proximity Sensor Surface-Mount SMD 8 Pin 2.5V - 3.6V 500mm Sensing Distance VCNL4035X01-GS08

Name: Vishay Ambient Light & Proximity Sensor Surface-Mount SMD 8 Pin 2.5V - 3.6V 500mm Sensing Distance VCNL4035X01-GS08
Brand: Vishay
SKU: 216848
Price: 2.96 USD
Availability: InStock



Category Proximity Sensor IC Brand Vishay Condition New

Specifications

Country of Origin	Philippines
Brand	Vishay
Height	750μm
Length	4mm
Temperature Compensation	-40 °C to +105 °C
Model	VCNL4035X01-GS08
Width	2.36mm
Mount Type	Surface
Output type	Open Drain
Series	VCNL
Sensing Distance	500mm
Maximum Operating Temperature	105°C
Package Type	SMD
Minimum Operating Temperature	-40°C
Maximum Switching Frequency	400kHz
Maximum Output Voltage	5V
Pin Count	8
Automotive Standard	AEC-Q101
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	2.5V

Key Features

Integrates proximity and ambient light sensing in a compact SMD package.
Supports up to 3 external infrared emitting diodes for enhanced proximity detection.
16-bit high resolution ambient light sensor for accurate light measurement.
Low power consumption suitable for portable and battery-powered applications.
Operates within an extended temperature range of -40°C to 105°C for automotive use.
Open drain output type ensures compatibility with various microcontrollers.
AEC-Q101 qualified for automotive standard compliance.
Suitable for diverse industrial, automotive, and consumer electronics applications.

Product Description

Vishay VCNL4035X01-GS08 Ambient Light & Proximity Sensor is a high-performance sensor IC integrating proximity sensing and ambient light sensing functions in a single compact surface-mount SMD package. It operates with a supply voltage range from 2.5 V to 3.6 V, providing reliable operation across automotive and industrial temperature ranges from -40°C to 105°C.

This sensor incorporates photodiodes, amplifiers, and analog-to-digital converters utilizing CMOS technology, delivering a 16-bit high-resolution ambient light sensor capable of precise ambient illumination measurement. The proximity sensor supports a sensing distance of up to 500 mm and includes circuitry to drive up to three external infrared emitting diodes for enhanced proximity detection accuracy.

Featuring an open drain output, the device is compatible with a range of digital systems and microcontrollers, facilitating easy integration. Its low power consumption design makes it suitable for portable and battery-operated products.

The VCNL4035X01-GS08 package measures only 4 mm in length, 2.36 mm in width, and has a height of 750 μm, optimizing space on printed circuit boards for compact applications. It is AEC-Q101 qualified, confirming compliance with automotive-grade reliability standards.

Integrates proximity sensor, ambient light sensor, signal conditioning, and driver circuits in one chip. Operates both ALS and PS functions in parallel for efficient sensing. Temperature compensated to ensure consistent performance from -40°C to 105°C.

Surface-mount device compatible with automated PCB assembly processes. Robust design suitable for automotive, industrial, HVAC, consumer electronics, and laboratory instrumentation. Enables applications such as automatic screen brightness adjustment, presence detection, and environmental light measurement.

The product is manufactured in the Philippines and is new and ready for deployment in various sophisticated electronic designs. Browse Vishay products and other sensor ICs at EnvMart for complete solutions.
