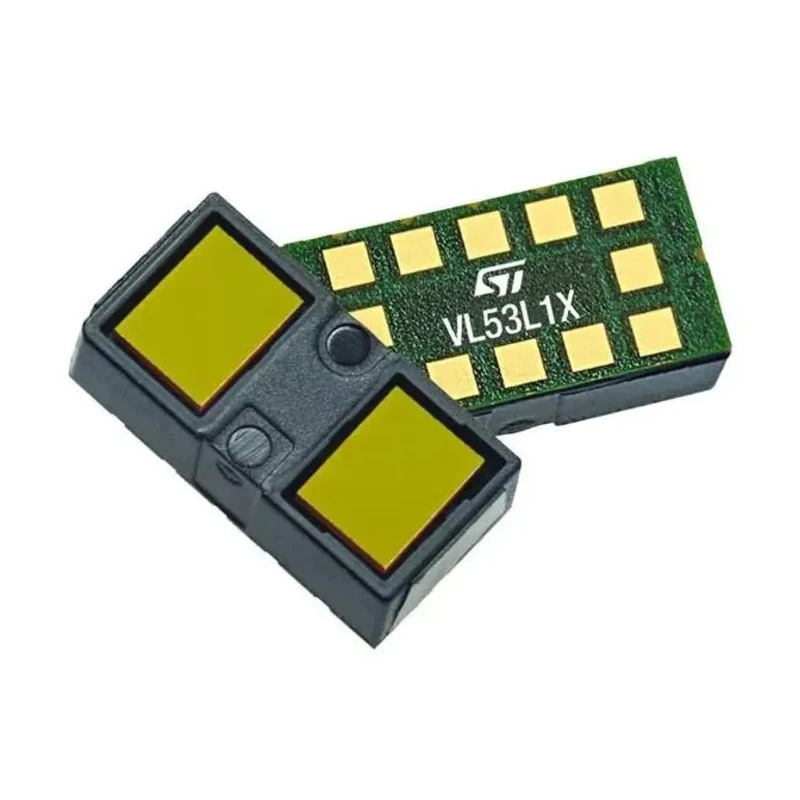

STMicroelectronics VL53L1 Proximity Sensor IC 4 m, 2.6 V - 3.5 V Supply, Digital Output, 12-Pin LGA Package VL53L1
Specifications
| Country of Origin | China |
|---|---|
| Size | 4.9 x 2.5 x 1.56 mm |
| Brand | STMicroelectronics |
| Height | 1.56mm |
| Length | 4.9mm |
| Model | VL53L1 |
| Width | 2.5mm |
| Mount Type | Surface |
| Output type | Digital |
| Series | VL53L1 |
| Sensing Distance | 4m |
| Maximum Operating Temperature | 85°C |
| Package Type | LGA |
| Minimum Operating Temperature | -20°C |
| Maximum Switching Frequency | 400kHz |
| Maximum Output Voltage | 400mV |
| Pin Count | 12 |
| Maximum Supply Voltage | 3.5V |
| Minimum Supply Voltage | 2.6V |
| Emitter | 940 nm invisible laser (VCSEL) and its analogue driver |
Key Features
- Utilizes Time-of-Flight technology for precise laser ranging up to 4 meters.
- Includes integrated single photon avalanche diode (SPAD) array and physical infrared filters for reliable sensing in various lighting conditions.
- Equipped with a 940 nm invisible laser emitter (VCSEL) and analogue driver for accurate distance measurement.
- Compact size of 4.9 x 2.5 x 1.56 mm suitable for space-constrained applications.
- Surface mount package enables easy PCB assembly and integration.
- Operates reliably between -20°C and 85°C temperature range.
- Maximum switching frequency of 400 kHz supports fast sensor response.
- Broad supply voltage range from 2.6 V to 3.5 V for flexibility in design.
Product Description
STMicroelectronics VL53L1 is a state-of-the-art Time-of-Flight (ToF) proximity sensor integrated circuit designed for precise laser ranging applications up to 4 meters. Model VL53L1 features a highly integrated miniature package measuring 4.9 mm in length, 2.5 mm in width, and 1.56 mm in height.
This sensor incorporates a single photon avalanche diode (SPAD) array combined with physical infrared filters and optics to optimize range accuracy even in challenging ambient lighting conditions. The device employs a 940 nm invisible laser (VCSEL) emitter and its analogue driver for consistent and reliable distance measurements.
Designed for surface mount technology, the 12-pin LGA package enables easy integration on compact printed circuit boards, supporting rapid assembly and high production efficiency.
Key features include a maximum switching frequency of 400 kHz and a digital output type compatible with modern microcontroller interfaces. The operating supply voltage ranges from 2.6 V to 3.5 V, ensuring adaptability in diverse electronic systems. Environmental endurance is ensured with operational temperatures ranging from -20°C to +85°C.
This sensor IC is suitable for a wide array of applications including industrial automation, robotics, consumer electronics, smart devices, and IoT equipment where precise proximity detection and distance measurement are critical.
Time-of-Flight laser-ranging technology for up to 4 meters sensing. Integrated SPAD array with physical infrared and optical filters enhances accuracy. 940 nm invisible VCSEL laser emitter ensures safe and reliable operation.
Very compact footprint supports integration in tight spaces. Surface mount package simplifies PCB assembly. Wide supply voltage range for electronic system compatibility. Operating temperature from -20°C to 85°C assures reliability in harsh conditions.
Digital output suitable for advanced sensor interfacing. Maximum switching frequency of 400kHz supports high-speed sensing applications.
Based in China, the VL53L1 sensor continues STMicroelectronics' legacy of innovative sensor IC solutions. For more industrial and semiconductor products, explore the Electronics & Electricals category on EnvMart.
Explore more products in our Proximity Sensor IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The VL53L1 proximity sensor can measure distances up to 4 meters.
It operates with a supply voltage ranging from 2.6 V to 3.5 V.
The maximum operating temperature for this sensor is 85°C.
This model features a digital output type, making it compatible with modern microcontroller interfaces.
The dimensions of the VL53L1 sensor are 4.9 mm in length, 2.5 mm in width, and 1.56 mm in height.
The maximum switching frequency of the VL53L1 is 400 kHz, supporting fast sensor response.
It is packaged in a 12-pin LGA (Land Grid Array) format, suitable for surface mount technology.
This model uses a 940 nm invisible laser (VCSEL) for accurate distance measurement.
The minimum operating temperature for this sensor is -20°C.
It is suitable for applications in industrial automation, robotics, consumer electronics, smart devices, and IoT equipment.
It incorporates a single photon avalanche diode (SPAD) array and physical infrared filters to optimize range accuracy even in challenging ambient lighting conditions.
The VL53L1 sensor is manufactured in China.
