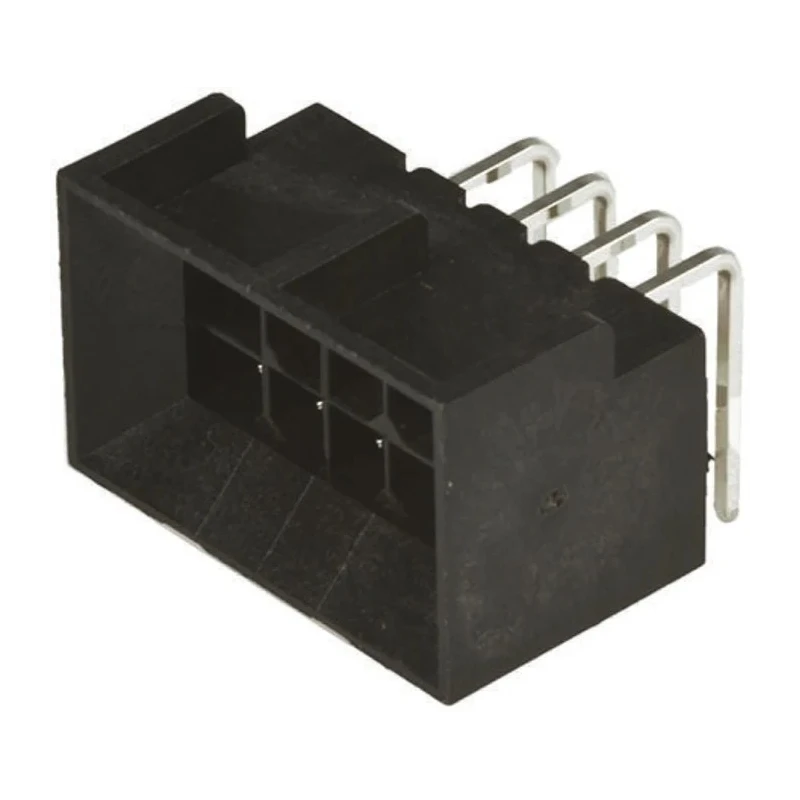

Molex Micro-Fit BMI Series Right Angle Through Hole PCB Header 12 Contacts 3 mm Pitch Shrouded 44428-1201
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 5A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | Micro-Fit BMI |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- Designed with a shrouded housing for secure connector mating.
- Thermoplastic housing material ensures durability and insulation.
- Supports a current rating of 5A suitable for low power applications.
- Mount type is through hole with a right angle orientation.
- Includes 12 male brass contacts plated with tin for conductivity and corrosion resistance.
- Operates reliably between -40°C and 105°C operating temperature range.
- Fitted with retention pegs for secure PCB mounting and polarized to avoid incorrect connections.
- Compatible with Molex 44133 Series receptacle housings.
Product Description
Molex 44428-1201 Micro-Fit BMI Series right angle through hole PCB header is a high-quality electrical connector designed for industrial and electronics applications. This 12-contact, 3 mm pitch connector features a shrouded, thermoplastic housing with male brass contacts plated with tin to ensure excellent electrical conductivity and resistance to corrosion.
Its right angle design and through-hole mount type provide reliable PCB integration and mechanical stability. Operating at currents up to 5A and voltage up to 250V, it is suitable for a broad range of circuit board applications in industrial manufacturing, automation systems, and general electronic devices.
The header includes retention pegs and a polarization feature to prevent incorrect mating, enhancing reliability and ease of installation. It operates across a wide temperature range of -40°C to 105°C, making it suitable for harsh environments.
The connector is compatible with Molex 44133 Series receptacle housings, facilitating flexible system design. It is manufactured in the United States with precision engineering standards ensuring consistent performance. The housing material is thermoplastic for durability and electrical insulation.
Shrouded housing for secure connections. Thermoplastic housing material. 5A current rating for low power circuits. Through hole mount type with right angle orientation. 12 male brass contacts plated with tin. Wide operating temperature range of -40°C to 105°C.
Polarized with retention pegs for reliable PCB mounting. Compatible with Molex 44133 series receptacle housings.
This Molex PCB header is widely used in electronic assemblies for board-to-board and wire-to-board connections, industrial equipment, and control systems. EnvMart offers this component as a reliable and durable solution for your electrical connector needs in applications requiring robust and precise PCB interfacing.
Explore more products in our Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 5A, making it suitable for low power applications.
It operates at a voltage rating of up to 250V.
The contacts are arranged with a 3 mm pitch.
The contacts are made of brass and are plated with tin, while the housing is constructed from thermoplastic material.
It operates reliably within a temperature range of -40°C to 105°C.
This model features 12 male contacts.
It utilizes a through hole mount type with a right angle orientation for PCB integration.
Yes, it is polarized to prevent incorrect connections and is equipped with retention pegs for secure PCB mounting.
It is compatible with Molex 44133 Series receptacle housings, allowing for flexible system design.
This connector supports board-to-board and wire-to-board connections, making it versatile for various applications.
It is manufactured in the United States, ensuring precision engineering standards.
This model uses a solder termination type for secure connections.
