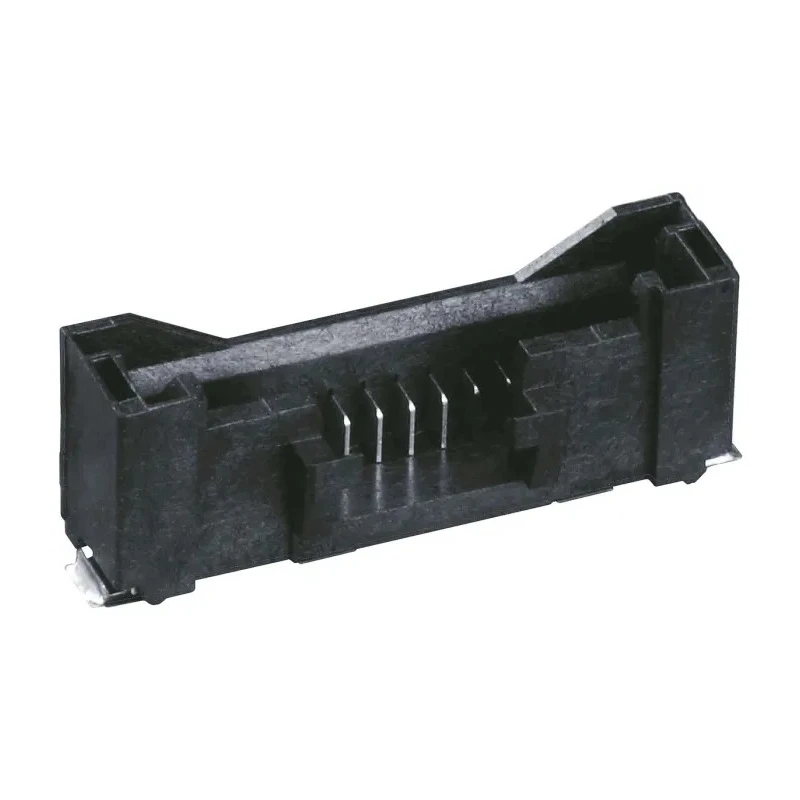

Hirose DF50 Series Straight Surface PCB Header, 5 Contacts, 1 mm Pitch, 1 Row, Shrouded DF50
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 100V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 1A |
| Model | DF50 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Brass |
| Series | DF50 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -35°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Gold |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- The connector features a shrouded housing to protect contacts from damage.
- Constructed with liquid crystal polymer housing for durability and UL94V-0 flammability rating.
- Gold-plated brass contacts ensure excellent conductivity and corrosion resistance.
- Designed for 1 Amp current rating at 100 Volts for stable electrical performance.
- Suitable for high vibration industrial applications due to its positive locking latch mechanism.
- Operating temperature range spans from -35°C to 85°C for versatile environment use.
- Single row, 1mm pitch, surface mount design optimizes PCB space utilization.
- Ideal for applications such as LCDs, TVs, notebooks, wireless LAN, and automotive electronics.
Product Description
Hirose DF50 Series Straight Surface PCB Header model DF50 provides a compact, 1.0 mm pitch wire-to-board connection with 5 gold-plated brass contacts enclosed in a shrouded black housing made from flame-retardant liquid crystal polymer (LCP).
This single-row connector is designed for secure mechanical and electrical performance with a tactile locking latch mechanism to ensure reliable mating even in environments subject to heavy vibrations.
The header supports a current rating of 1 Amp and voltage up to 100 Volts, functioning efficiently across a wide temperature range from -35°C to 85°C.
Its surface mount technology (SMT) footprint facilitates easy PCB assembly while optimizing space usage. The housing's thick walls prevent cracking and protect insertion depth to avoid wrenching during connection.
Common industrial, commercial, and consumer applications include LCD TVs, digital TVs, notebook computers, wireless LAN devices, industrial control units, office equipment, automotive navigation systems, and car audio electronics.
The shrouded design safeguards contacts from incidental damage and contamination. Liquid Crystal Polymer housing ensures mechanical strength and heat resistance. Gold plating on brass contacts enhances durability and electrical conductivity.
Positive locking latch mechanism provides secure, audible feedback on mating. Compact 1 mm pitch reduces PCB footprint for dense electronic applications. Surface mount configuration enables automated assembly processes. Wide operating temperature range supports diverse environmental conditions.
Low current and voltage ratings cater to sensitive electronics and signal transmission. This product is manufactured in Malaysia under Hirose standards, offering a high-quality solution for precision PCB interconnections.
Explore related Hirose connectors and PCB header products at EnvMart for your electronics manufacturing needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1 Amp and a voltage rating of up to 100 Volts.
The housing is made from liquid crystal polymer, while the contacts are constructed from brass with gold plating.
It features a 1 mm pitch and has 5 contacts.
The operating temperature range spans from -35°C to 85°C.
The shrouded design protects the contacts from incidental damage and contamination, ensuring reliable performance in various environments.
This connector utilizes a surface mount design, optimizing PCB space utilization.
It is suitable for applications such as LCDs, digital TVs, notebooks, wireless LAN devices, and automotive electronics.
It features a positive locking latch mechanism that provides secure mating and tactile feedback, making it suitable for high vibration environments.
The connector system type is wire-to-board, facilitating efficient connections between wires and printed circuit boards.
This PCB header is manufactured in Malaysia under Hirose standards.
The contact gender for this model is male.
The termination type for this PCB header is solder, which is standard for secure electrical connections.
