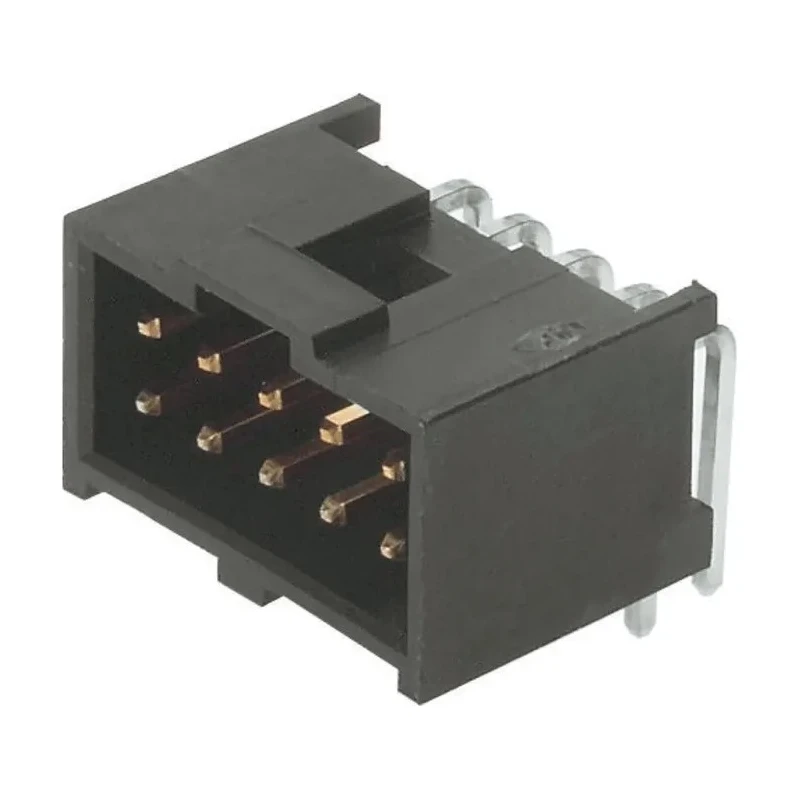

Molex C-Grid III Series Right Angle Through Hole PCB Header 14 Contacts 2.54mm Pitch 2 Row Shrouded 90130-3114

Molex 90130-3114 C-Grid III Series Right Angle Through Hole PCB Header is engineered for secure wire-to-board connections requiring high reliability in demanding environments. It features a shrouded connector system with 14 male brass contacts plated in tin to ensure corrosion resistance and consistent conductivity.

The right angle orientation and two-row configuration with a 2.54 mm pitch enable compact PCB layouts. Designed for through-hole mounting, this header provides a strong mechanical attachment, suitable for industrial electronic applications such as power connectors, automation controllers, and communication devices.

Rated for a current of up to 3 amps and operating voltage of 350 volts, it performs reliably across a wide temperature range from -55°C to 125°C, making it versatile for harsh operating conditions. The tail pin length of 2.9 mm and mating pin length of 6.75 mm support secure solder connections and reliable mating with locking housings.

Constructed with a polyester housing material, it offers insulation and durability necessary for circuit board assemblies. Its shrouded design also mitigates the risk of misalignment or damage during connection and disconnection cycles.

Shrouded design provides additional protection and secure lock-in with housings. Right angle orientation facilitates efficient PCB space utilization. Brass male contacts with tin plating ensure excellent electrical performance.

Through hole mount assures exceptional mechanical stability. Wide temperature range suits various industrial and manufacturing environments. Supports 3A current and 350V voltage for versatile electronic applications. Two rows and 14 contacts accommodate higher connection densities.

Polyester housing offers ruggedness and insulation integrity.

This Molex PCB header is commonly used in electronics manufacturing, industrial machinery, instrumentation, and HVAC control systems where reliable, high-density board-to-wire connections are critical. The connector adheres to established molecular standards ensuring quality and interoperability.
