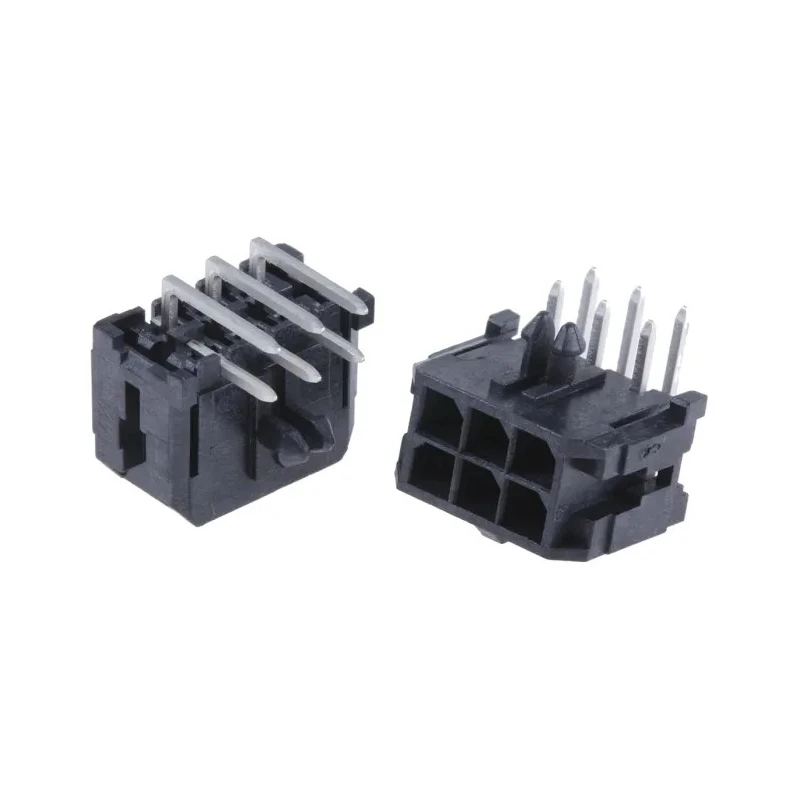

Molex Micro-Fit 3.0 Series Right Angle Through Hole PCB Header 6 Contact 3 mm Pitch 2 Row Shrouded 43045-0602

Molex 43045-0602 Micro-Fit 3.0 Series right angle through hole PCB header is a compact power connector designed for reliable electrical connections in industrial, telecommunications, gaming, medical, and consumer electronics applications. It features a 6 contact dual row configuration with 3 mm pitch spacing and shrouded housing ensuring secure mating and prevention of accidental disconnections.

The housing is manufactured from high temperature UL 94V-0 rated liquid crystal polymer, able to withstand IR reflow soldering temperatures up to 265°C. Its brass contacts are plated with gold for enhanced conductivity and longevity. The through hole mounting style includes snap-in plastic peg PCB locks that secure the connector firmly to the circuit board while also being SMT compatible to simplify assembly processes.

This connector supports current loads up to 5A at 250V voltage rating and operates reliably within a temperature range of -40°C to 125°C. The right angle orientation makes it ideal for wire-to-board applications in environments requiring compact size without compromising electrical performance.

Key features include positive latching, fully isolated dual beam terminals to minimize arcing, and compliance with Glow Wire standards for safety assurance. Applications span military commercial off-the-shelf solutions, solar power systems, consumer appliances like dryers and refrigerators, data communication routers and servers, as well as medical and telecommunication equipment.

High current carrying capacity of up to 5A in compact footprint. Constructed with high temperature thermoplastic housing for IR reflow soldering. Through hole mount type with snap-in plastic peg PCB locks for secure attachment.

Gold-plated brass contacts provide reliable electrical performance. Positive latching mechanism to prevent accidental disconnection. Durable operation from -40°C to 125°C ambient temperature range. Right angle orientation suitable for wire-to-board connector system.

Compliant with Glow Wire safety standards.

This Micro-Fit 3.0 Series header by Molex delivers robust electrical connections in a compact form factor suitable for diverse industrial and commercial use cases. Explore more connectors and PCB headers in the Electronics Components category on EnvMart.
