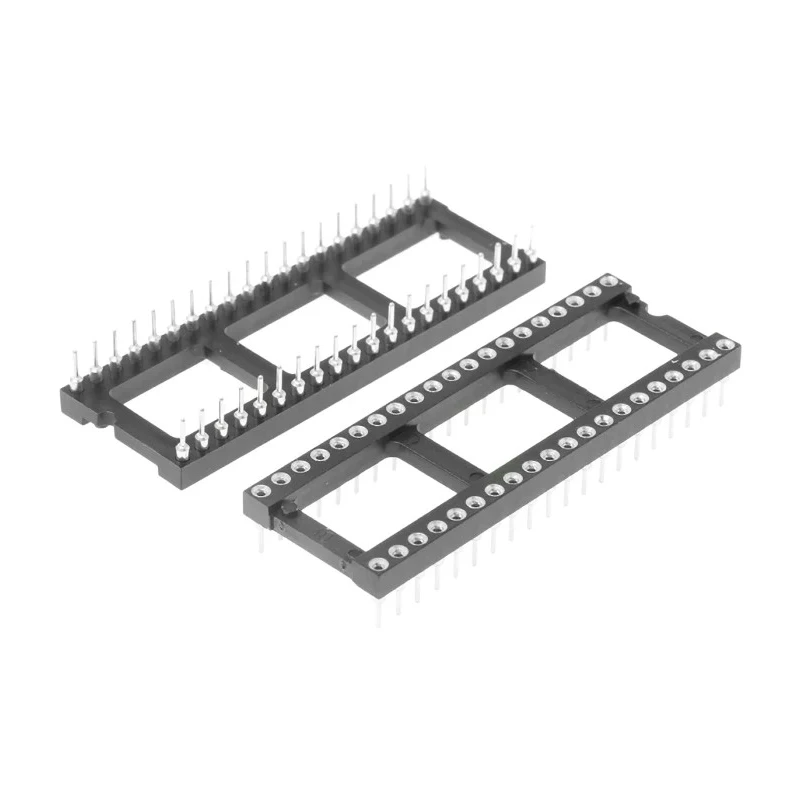

Preci-Dip 40 Way 2.54 mm Pitch Vertical Through Hole Turned Pin Open Frame DIL Socket 1A 110-87-640-41-001101

Preci-Dip 110-87-640-41-001101 Vertical Through Hole Turned Pin Open Frame DIL Socket is a high-quality 40-contact electronic component featuring a 2.54 mm pitch, designed for reliable dual in-line package socket applications. The socket features an open frame design with a sturdy fibreglass reinforced polyethylene terephthalate housing, ensuring mechanical strength and durability during use.

Engineered to support a current rating of 1A and a voltage capacity of up to 150V DC, this socket is well-suited for various electronic assembly and prototyping purposes, especially in industrial and laboratory environments. The turned pin contacts are crafted from beryllium copper alloy and brass, plated with tin and flash gold for superior electrical connectivity and resistance to wear and corrosion.

Its vertical orientation and through-hole mounting provide a secure fit on printed circuit boards, making it appropriate for use in manufacturing, testing, and repair of electronic devices. The socket supports operating temperatures from -55°C to 125°C, making it versatile under a wide range of environmental conditions.

The compact dimensions of length 50.8 mm, width 17.7 mm, and depth 2.8 mm allow integration in densely packed circuits. It utilizes a solder termination type to facilitate reliable attachment during PCB soldering processes. The 110 series socket is manufactured in Switzerland, reflecting precision engineering and quality compliance with UL 94V-0 standards.

Features 40 contact positions for reliable connections. Designed for vertical orientation with a 2.54 mm pitch between pins. Employs through hole mount type with turned pin style for sturdy fixture. Open frame housing constructed from fibreglass reinforced polyethylene terephthalate for durability.

Suitable for operating temperatures ranging from -55°C to 125°C. Electrical rating includes 1A current and 150V DC voltage capacity. Contact plating consists of tin with gold flash for enhanced conductivity and corrosion resistance.

Contact material made of beryllium copper alloy and brass ensures long-lasting performance. Compact size with dimensions approximately 50.8mm by 17.7mm by 2.8mm depth. Designed for solder termination type to facilitate efficient PCB assembly.

This component is ideal for applications in industrial electronics manufacturing, PCB assembly lines, research laboratories, and electronic test equipment. Its reliable contact design and robust materials contribute to the durability and longevity of electronic systems.
